Realtime

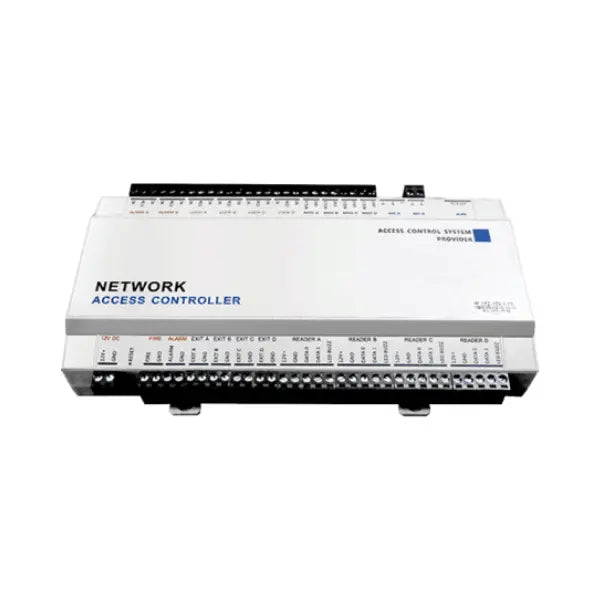

Realtime T4D (With Box and Power Supply)

Rs. 0.00

Sale Sold out

Overview

The Realtime T4D is a professional four-door access control panel designed for centralized management of multiple entry points. Built for medium and large organizations, the controller supports up to four doors and integrates seamlessly with RFID readers, biometric devices, and access control software for secure and efficient access management.

Featuring TCP/IP and RS485 communication, support for HID and CPU readers, and compatibility with MS Access and SQL databases, the T4D provides reliable performance for offices, factories, schools, hospitals, commercial buildings, and industrial facilities. Its long reader-to-controller communication distance and offline/online operation make it suitable for demanding security applications.

Key Features

✔ Four-door access control panel

✔ Supports up to four doors simultaneously

✔ Card capacity of 30,000 users

✔ Stores up to 200,000 event records

✔ TCP/IP and RS485 communication

✔ Supports HID, CPU and Motorola readers

✔ Wiegand 26/34 reader compatibility

✔ Offline and online operation modes

✔ Controller-to-reader distance up to 80–100 meters

✔ Built-in buzzer indicator

✔ Supports MS Access and SQL databases

✔ Suitable for centralized access control systems

Why Choose Realtime T4D?

Multi-Door Management

Control up to four doors from a single controller, reducing installation costs and simplifying administration.

Large User Capacity

Supports 30,000 card users and stores up to 200,000 transaction records for enterprise-level deployments.

Flexible Connectivity

TCP/IP and RS485 communication enable seamless integration with readers and access control software.

Long-Distance Reader Support

Supports reader connections up to 100 meters away, making it suitable for large buildings and campuses.

Reliable Database Integration

Compatible with MS Access and SQL databases for centralized monitoring and reporting.

Technical Specifications

Feature	Specification
Model	T4D
Product Type	Four-Door Access Control Panel
Supported Doors	Up to 4 Doors
Working Mode	Offline / Online
Verification Method	ID Card
Card Capacity	30,000 Users
Record Capacity	200,000 Logs
Communication Modes	TCP/IP, RS485
Reader Support	HID, CPU, Motorola Readers
Reader Format	Wiegand 26 / Wiegand 34
Controller to Reader Distance	80 – 100 m
Database Supported	MS Access / SQL
Sound Indicator	Buzzer
Power Supply	12V DC
Idle Current	4A, 48W
Operating Temperature	-40°C to 70°C
Working Humidity	10% – 90% RH
Dimensions	218 × 106 mm
