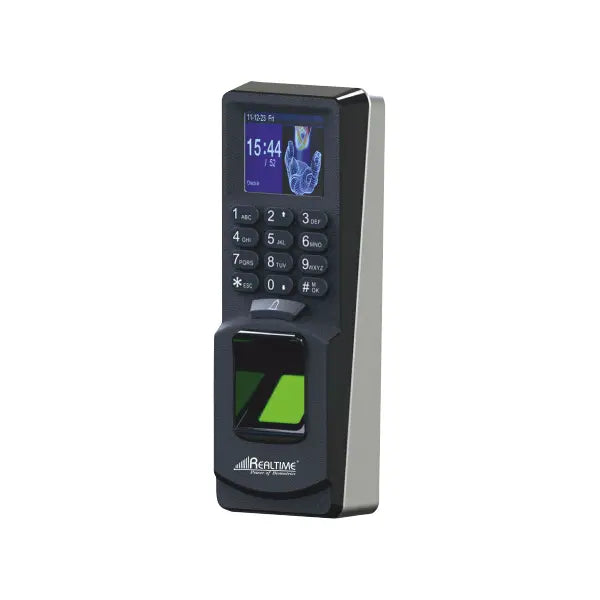

Realtime T7
Realtime T7
Couldn't load pickup availability
Overview
The Realtime T7 is a compact fingerprint attendance and access control system designed for small and medium-sized organizations requiring reliable employee attendance management and secure door access. Supporting fingerprint and RFID card authentication, the device delivers fast recognition and stable performance for daily operations.
Featuring a 2.4-inch TFT color display, built-in access control functionality, TCP/IP and RS485 communication, and USB data transfer support, the T7 provides flexible deployment options for offices, retail stores, schools, and warehouses. Its push technology enables real-time attendance synchronization for efficient workforce management.
Key Features
Why Choose Realtime T7?
Reliable Attendance Management
Provides accurate fingerprint and RFID card verification with quick identification speed, making employee attendance tracking simple and efficient.
Real-Time Data Push
Push technology enables the device to transmit attendance records automatically for centralized monitoring and reporting.
Built-In Access Control
Supports door locks, exit buttons, door sensors, alarms, and Wiegand interfaces for complete access control applications.
Flexible Communication
TCP/IP, RS485, and USB connectivity provide easy integration and convenient data transfer.
Compact and Cost-Effective
Its compact design and robust performance make it ideal for offices, retail stores, and educational institutions.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | Realtime T7 |
| Product Type | Fingerprint Attendance & Access Control System |
| Fingerprint Capacity | 800 Users |
| Attendance Record Capacity | 50,000 Logs (Expandable up to 100,000) |
| Verification Modes | Fingerprint, RFID Card |
| Fingerprint Verification Mode | 1:1 and 1:N |
| Fingerprint Sensor Resolution | 500 DPI |
| Identification Time | ≤ 0.8 Seconds |
| Working Modes | Offline / Online |
| Display | 2.4-inch TFT Color Display (320 × 240) |
| Communication | TCP/IP, RS485, USB Flash Drive |
| Card Type | 125 kHz EM RFID Card |
| Voice Prompt | English |
| Access Control Interface | Wiegand 26/34, Door Lock, Exit Button, Door Sensor, Alarm, Doorbell |
| Power Supply | 12V DC / 1A |
| Operating Temperature | 0°C to 50°C |
| Working Humidity | 20% – 80% |
| FAR | ≤ 0.0001% |
| FRR | ≤ 0.1% |
| Dimensions | 103 × 103 × 31 mm |
Applications
