Realtime

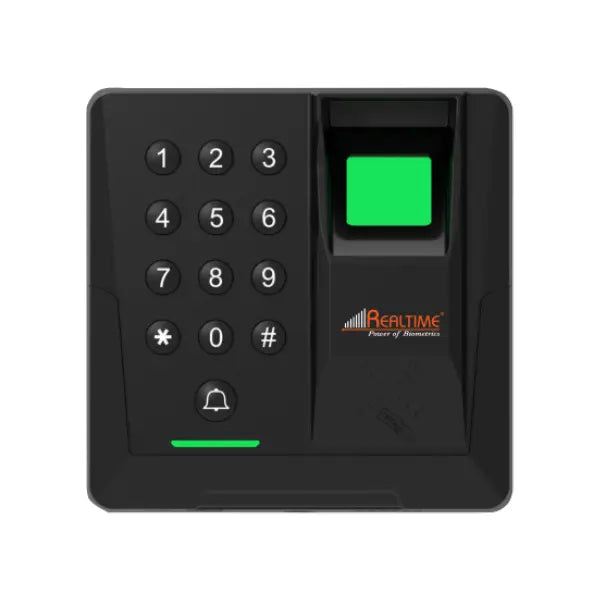

Realtime TD1D

Rs. 0.00

Sale Sold out

Overview

The Realtime TD1D is a compact standalone biometric access control system designed to provide secure entry management for homes, offices, shops, warehouses, and commercial facilities. Combining fingerprint authentication, RFID card verification, and PIN-based access, the device offers multiple identification options for enhanced security and convenience.

Built with an optical fingerprint sensor and integrated access control relay, the TD1D provides fast authentication and supports direct connection to electric locks, exit buttons, alarms, and external controllers. Its compact wall-mounted design makes it ideal for single-door access control applications.

Key Features

✔ Standalone access control system

✔ Fingerprint authentication support

✔ RFID card reader support

✔ 4 to 6 digit PIN verification

✔ Supports up to 500 fingerprints

✔ Stores up to 500 RFID cards

✔ Supports 500 password users

✔ Optical fingerprint sensor with 500 DPI resolution

✔ USB data export support

✔ Built-in access control relay

✔ Wiegand output support

✔ Alarm and exit button connectivity

Why Choose Realtime TD1D?

Multiple Authentication Methods

Supports fingerprint, RFID card, and PIN authentication, providing flexibility and enhanced security for users.

Standalone Operation

No computer or external controller is required for day-to-day operation, making installation simple and cost-effective.

Integrated Access Control

Built-in relay output allows direct connection with EM locks, electric strikes, alarms, and exit buttons.

Fast and Accurate Recognition

The optical fingerprint sensor delivers quick identification with low false acceptance and rejection rates.

Compact and Durable Design

Its small form factor and wall-mounted installation make it suitable for homes, offices, retail stores, and industrial applications.

Technical Specifications

Feature	Specification
Model	Realtime TD1D
Product Type	Standalone Biometric Access Control System
Fingerprint Capacity	500 Users
Card Capacity	500 Users
Password Capacity	500 Users
Total User Capacity	1,000 Users
Verification Modes	Fingerprint, RFID Card, Password
Fingerprint Verification	1:1 and 1:N
Fingerprint Sensor	Optical Sensor, 500 DPI
Card Type	125 kHz EM Proximity Card
Card Reading Distance	1 – 5 cm
PIN Length	4 – 6 Digits
Communication	USB Disk
Wiring Connections	Relay Output, Exit Button, Alarm, Wiegand Output
Lock Output	NO / NC / COM Relay
Relay Time	1 – 99 Seconds (Default 5 Seconds)
Power Supply	DC 12V
Idle Current	<50 mA
Working Current	<100 mA
Operating Temperature	-20°C to +50°C
Working Humidity	20% – 90% RH
Dimensions	88 × 88 × 30 mm
Weight	Approx. 350 g
FAR / FRR	0.0001% / 0.01%
