Realtime

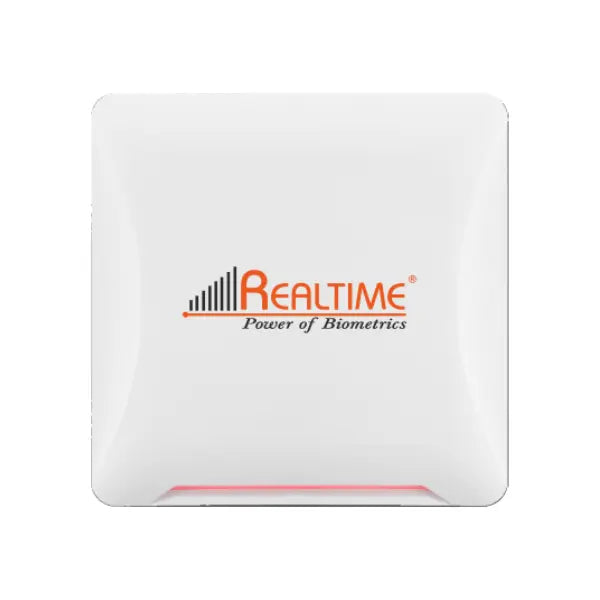

Realtime UHF10M

Rs. 0.00

Sale Sold out

Overview

The Realtime UHF-10M is a high-performance long-range UHF RFID reader designed for vehicle management, access control, attendance monitoring, and asset tracking applications. With a reading range of up to 10 meters, the device enables contactless identification of UHF tags and cards, making it ideal for parking systems, industrial facilities, gated communities, and logistics environments.

Supporting ISO 18000-6B and ISO 18000-6C (EPC Gen2) protocols, the UHF-10M offers flexible frequency settings, adjustable RF power, configurable reading modes, and Wiegand communication output. Its integrated high-gain antenna and high-speed reading capability ensure reliable performance in demanding environments.

Key Features

✔ Long-range UHF RFID reading up to 10 meters

✔ Supports ISO 18000-6B and ISO 18000-6C (EPC Gen2)

✔ Adjustable RF power from 0 to 30 dBm

✔ Flexible frequency configuration

✔ High-speed tag reading performance

✔ Timing and trigger reading modes

✔ Wiegand 26/34-bit communication output

✔ Built-in line polarization antenna

✔ Antenna gain up to 12 dBi

✔ FHSS and fixed-frequency operating modes

✔ Suitable for vehicle and personnel management

✔ Stable and reliable operation

Why Choose Realtime UHF-10M?

Long-Distance Identification

Provides contactless tag detection from distances up to 10 meters, enabling seamless vehicle and personnel access.

Flexible Operation

Supports configurable frequency ranges, RF power, and reading modes to adapt to various deployment scenarios.

High-Speed Performance

Fast reading speed ensures rapid tag recognition and smooth traffic flow in parking and access control systems.

Easy Integration

Wiegand 26/34-bit output allows easy connectivity with access controllers and attendance systems.

Industrial-Grade Reliability

Built for continuous operation with a high-gain antenna and stable RF performance.

Technical Specifications

Feature	Specification
Model	UHF-10M
Product Type	Long-Range UHF RFID Reader
Reading Distance	Up to 10 meters
Supported Protocols	ISO 18000-6B, ISO 18000-6C (EPC Gen2)
Frequency Range	902–928 MHz or 865–868 MHz
Operating Modes	FHSS or Fixed Frequency
RF Power	0–30 dBm (Software Configurable)
Reading Speed	< 6 ms (Average per 64-bit)
Reading Modes	Timing Mode / Trigger Mode
Communication Output	Wiegand 26 / 34-bit
Input Port	Trigger Input
Antenna Type	Built-in Line Polarization Antenna
Antenna Gain	Up to 12 dBi
Power Supply	DC 12V
Application Type	Vehicle Management, Personnel Tracking, Access Control
