Realtime

Realtime UHF20M

Rs. 0.00

Sale Sold out

Overview

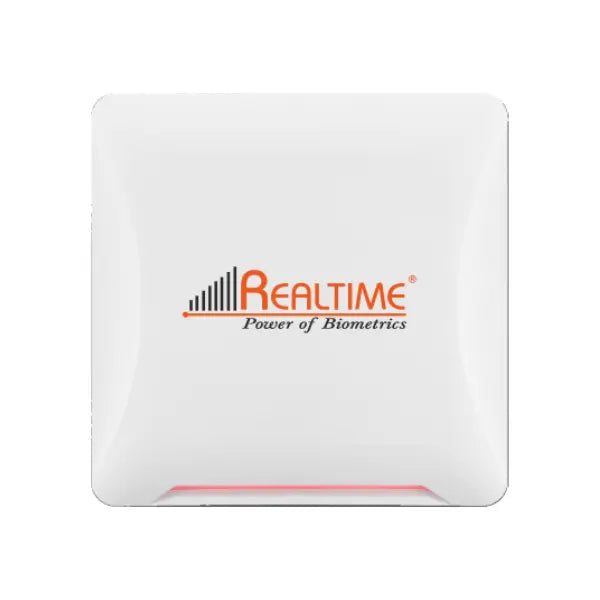

The Realtime UHF-20M is a professional long-range UHF RFID reader designed for high-performance vehicle management, access control, attendance systems, and asset tracking applications. With an impressive reading distance of up to 20 meters, the device enables contactless identification of UHF tags and cards, making it ideal for parking barriers, gated communities, logistics centers, warehouses, and industrial facilities.

Supporting ISO 18000-6B and ISO 18000-6C (EPC Gen2) standards, the UHF-20M offers configurable RF power, flexible frequency selection, multiple reading modes, and Wiegand communication output. Its built-in high-gain directional antenna ensures stable performance and fast tag recognition even in demanding environments.

Key Features

✔ Long-range UHF RFID reading up to 20 meters

✔ Supports ISO 18000-6B and ISO 18000-6C (EPC Gen2)

✔ Adjustable RF power from 0 to 30 dBm

✔ Flexible frequency configuration

✔ High-speed tag recognition

✔ Timing mode and trigger mode operation

✔ Wiegand 26-bit and 34-bit output

✔ Trigger input support

✔ Built-in line polarization antenna

✔ Antenna gain up to 12 dBi

✔ FHSS and fixed frequency operating modes

✔ Ideal for vehicle and personnel management

Why Choose Realtime UHF-20M?

Extended Reading Distance

With a maximum reading range of up to 20 meters, the UHF-20M provides seamless vehicle and personnel identification without physical contact.

Fast and Reliable Performance

The reader offers high-speed tag recognition with response times below 6 milliseconds for efficient traffic and access management.

Flexible Configuration

Frequency range, RF power, and reading modes can be configured through software to suit various deployment requirements.

Easy System Integration

Supports Wiegand 26/34-bit communication for seamless connectivity with access control panels and attendance systems.

Built for Continuous Operation

The high-gain integrated antenna and stable RF design ensure reliable performance in industrial and commercial applications.

Technical Specifications

Feature	Specification
Model	UHF-20M
Product Type	Long-Range UHF RFID Reader
Reading Distance	Up to 20 meters
Supported Protocols	ISO 18000-6B, ISO 18000-6C (EPC Gen2)
Frequency Range	ISM 902–928 MHz or ISM 865–868 MHz
Operation Modes	FHSS or Fixed Frequency (Software Configurable)
RF Power	0 – 30 dBm (Software Configurable)
Reading Speed	< 6 ms per 64-bit
Reading Modes	Timing Mode / Trigger Mode
Data Output	Wiegand 26-bit / Wiegand 34-bit
Input Port	Trigger Input
Antenna Type	Built-in Line Polarization Antenna
Antenna Gain	Up to 12 dBi
Power Supply	12V DC
Application Type	Vehicle Management, Personnel Management, Access Control
