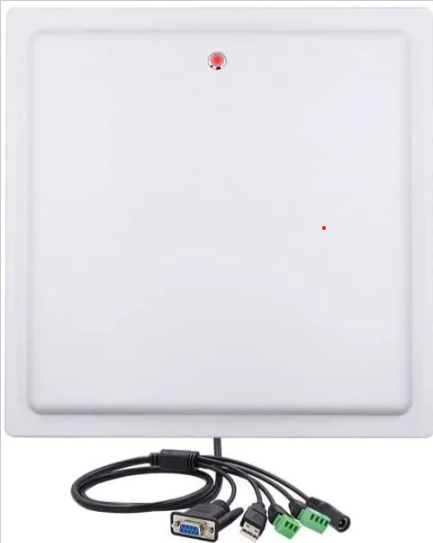

UHF LONG RANGE INTEGRATED READER RFENERGIE RFG-CR32

RFG-CR32 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Basedon proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identificationrate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit andindustrial production process control system. Get one for your organization.

Technical Specifications
PHYSICAL CHARACTERISTICS
RFID Integrated Reader	Yes
Dimension	445mm x 445mm x 55mm
Weight	3.55 kg
USER ENVIRONMENT
Operating Temperature	-10°C ~ +55°C
Storage Temperature	-20°C ~ +75°C
CONNECTIVITY
Communications	RS232, WG26, RELAY
Output	Wiegand
POWER SUPPLY
Power Input	9V DC
RFID UHF
Frequency	865~868MHz, 902~928MHz (Frequency customization optional)
Protocol	ISO18000-6B, ISO18000-6C (EPC C1G2)
Read Range	12m ~ 15m (Depending on tag)
Work Mode	Active Mode, Trigger Mode, and Answer Mode (Optional)
Antenna	12dBi Linear Antenna
Output Power	Up to 26dBm (Adjustable)
