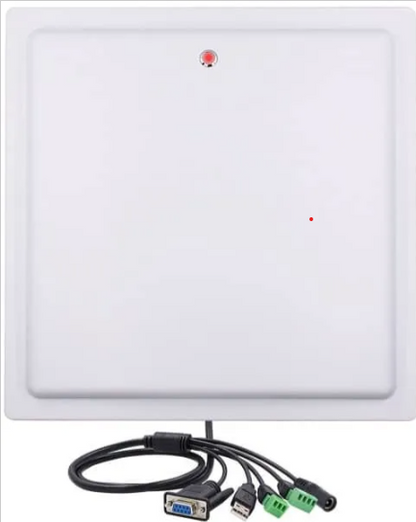

RFG-CR33

Middle range Reader TC/IP

Frequency USA: 902 MHz-928MHz,EU: 865-868MHz

Protocol 15018000-6B, 6C / EPC C1Gen2

Built In Antenna 7 dbi Circular Antenna

Work Mode Active, Trigger, Password; Answer Mode (Optional)

RF Power 26 dbm Adjustable

Read Distance 6-8 (Depends on Tag )

Interface RS232.USB.WG26,Relay (TCP/IP, POE. WIFI )

Power Supply 9-30 V

RFG-CR33 is a high-performance UHF RFID integrated reader. It is designed upon the fully self-intellectual property. Based on a proprietary efficient DSP algorithm, it supports fast tag read/write operation with a high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit, and industrial production process control system.

Automatic Scan COM-Port / Network

Read Specify Tag

Relay Data Cache

Data Cache

Remote Listening RSSI

RSSI

Specification
ISO/IEC18000-6B, 6C / EPC C1Gen2

USA: 902 MHz-928MHz

EU: 865-868MHz

CN: 920-925MHz

6dbi Circular Antenna

Read Range 0-6m (According to Tag & Environment)

TCP/IP, RS-232, USB, Wiegand Communication mode (Optional WIFI, POE)
