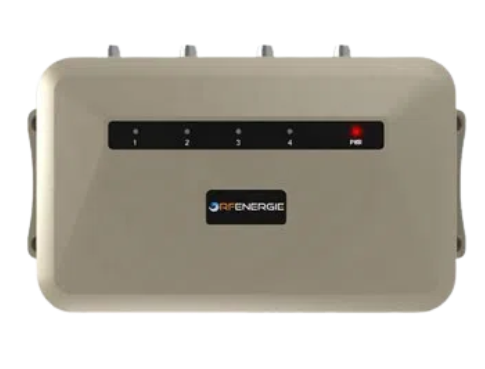

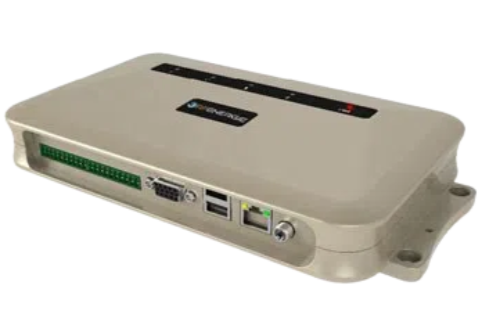

RFG-HC04 UHF RFID Controller

4 Ports Long Range UHF RFID Reader

ISO 18000-6B, 6C / EPC C1Gen2

DDR SDRAM : 128M; ROM : 256M

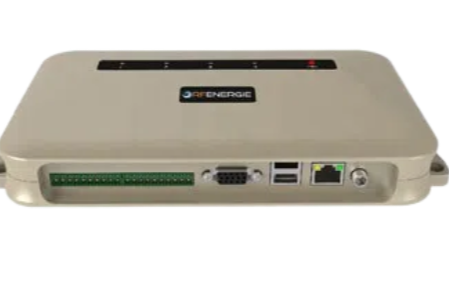

RS-232, RS-485, Wiegand, RJ45, USB,

Bluetooth Optional, WI-Fi Customizable

External 4x 9dBi /6dBi /12dBi Antenna

4 Relay Output

IP53 Protection Level

RFG-HC04 is new designed fixed UHF RFID reader with 4 ports for antennas. With Impinj R2000 chipset, the device supports multiple tags reading up to 500 times/second. It is widely used for asset management, inventory/warehouse management, vehicle management etc.

Impinj Indy R2000 chipset brings strong prime mover

Aluminum casting housing applies to industrial scenarios

Various communication / software interfaces match various applications

Different developing languages

SDK meet different developer needs

Excellent communication protocol architecture supports faster data processing algorithm

Split-type design supports the max data collection range, helping in cost saving

Special applications customized interfaces / data transferring prolongable

Seamlessly compatible with RFID middleware for rapid implementation of large projects

Widely used in ITS / ETC , warehousing & logistic, production automation
