Realtime

RS9+ (Slave Reader)

Rs. 0.00

Sale Sold out

Overview

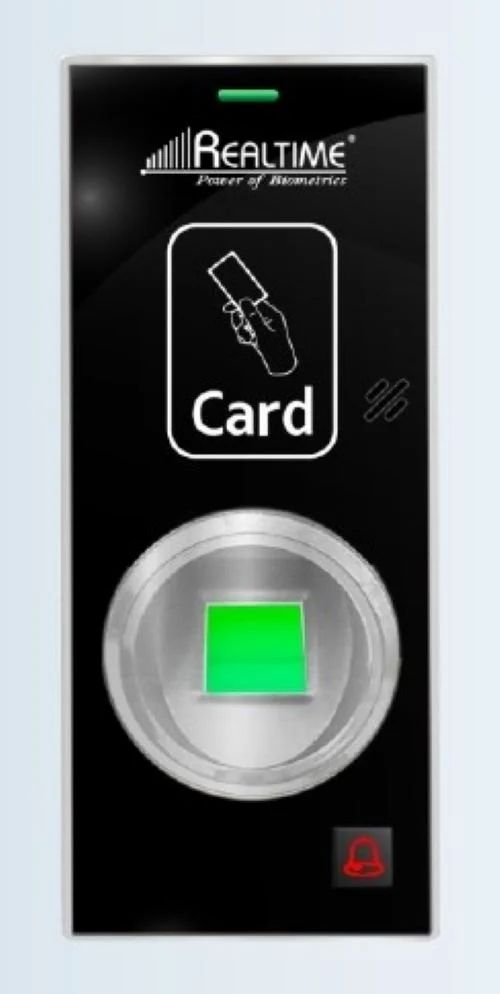

The Realtime RS9+ Fingerprint & RFID Slave Reader is a dedicated RS485-based biometric reader designed to work as a secondary (slave) device with compatible Realtime master attendance and access control systems. It does not function as a standalone attendance machine; instead, it captures fingerprint or card credentials and transmits them to a master controller for processing and storage.

It is commonly used in multi-door access control setups where a central biometric device (like RS70F, T304F+, RS910, etc.) manages user data while RS9+ readers are installed at entry/exit points for authentication.

Key Features

✔ Fingerprint + RFID card authentication support

✔ Works only as a slave reader (requires master device)

✔ RS485 communication protocol

✔ Fast fingerprint matching with high accuracy

✔ Dual LED indicators (Red/Green status)

✔ Compact wall-mounted design

✔ Low power consumption operation

✔ Supports EM proximity RFID cards

✔ Pushes data directly to master controller

✔ Designed for secure access control environments

Why Choose Realtime RS9+?

Perfect Slave Integration

Built specifically to extend Realtime biometric systems by adding extra entry points without duplicating full attendance machines.

Secure RS485 Communication

Uses RS485 wired communication for stable and interference-free data transmission to the master device.

Cost-Effective Expansion

Instead of installing multiple full biometric machines, RS9+ allows expansion of access points at a lower cost.

Reliable Authentication

Supports fingerprint and RFID verification with fast response and low error rate.

Ideal for Multi-Door Systems

Perfect for offices, factories, and secured facilities requiring multiple entry/exit access points.

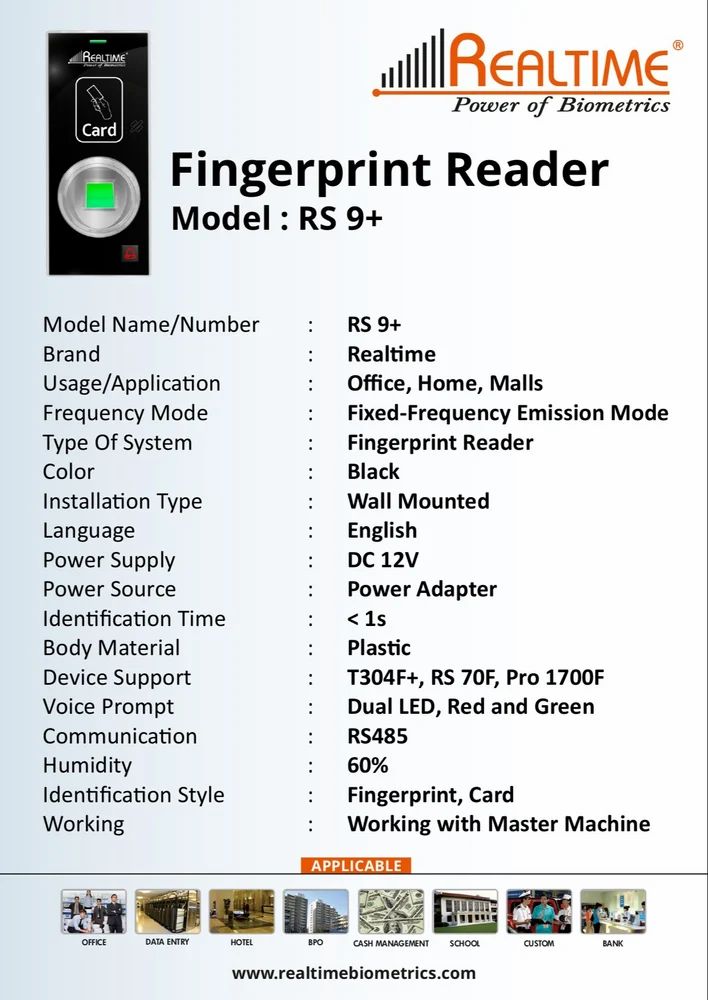

Technical Specifications

Feature	Specification
Product Type	Fingerprint & RFID Slave Reader
Model	RS9+
Function	Slave Reader (Works with Master Device)
Authentication	Fingerprint, RFID Card
Communication	RS485
Card Type	EM Proximity RFID
Reading Distance	~5 cm (Card)
Power Supply	12V DC
Working Current	Low Power Consumption (~80–100 mA)
Indicator	Dual LED (Red / Green)
Installation	Wall Mounted
Operating Temperature	0°C – 60°C
Humidity	Up to 60% RH
