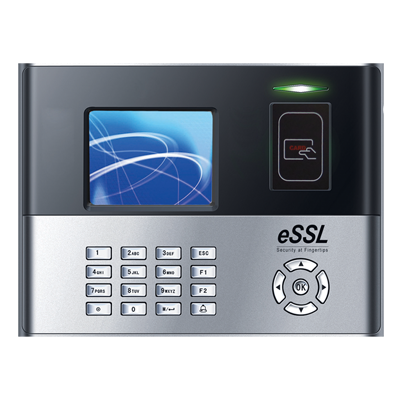

eSSL S990 RFID Card Reader – 125KHz EM Access Control System

The eSSL S990 RFID Card Reader is a high-performance 125KHz EM proximity-based access control and time attendance device designed for offices, factories, schools, hospitals, and commercial establishments. With support for up to 30,000 card users and 100,000 transaction records, the S990 provides reliable attendance management and secure door access control in a single device.

Powered by a 32-bit 800MHz processor, the eSSL S990 delivers fast authentication within one second and supports TCP/IP, RS232, and RS485 communication. Its advanced access control features such as Wiegand input/output, anti-passback, fire alarm integration, and door sensor support make it suitable for demanding security applications.

Key Features

125KHz EM RFID card reader for access control and attendance management
Supports up to 30,000 card users
Stores up to 100,000 transaction logs
Fast identification speed of less than 1 second
32-bit 800MHz high-speed processor
2.8-inch TFT display with intuitive interface
TCP/IP, RS232, and RS485 communication support
Wiegand 26-bit and 34-bit input/output support
Anti-passback functionality for enhanced security
Door sensor and fire alarm integration support
Supports EM Lock, Strike Lock, and Bolt Lock
Built-in mini speaker and schedule bell support
Optional Wi-Fi and GPRS communication
Compatible with eTimeTrackLite Desktop and Web Software
Supports third-party HRMS, Payroll, ERP, and SDK integration

Technical Specifications

Specification	Details
Model	eSSL S990
RFID Frequency	125KHz EM
Card Capacity	30,000 Cards
Transaction Capacity	100,000 Logs
Processor	32-bit Microprocessor, 800MHz
Identification Speed	< 1 Second
Display	2.8-inch TFT Color Display
Keypad	4×4 Keypad with 5 Function Keys
Communication	TCP/IP, RS232, RS485
Power Supply	12V DC, 1.5A
Operating Temperature	0°C to 45°C
Humidity	20% to 80%
Dimensions	210 × 157 × 40 mm
