BioMax SA225 Standalone RFID Access Controller – Single-door System
BioMax SA225 Standalone RFID Access Controller – Single-door System
📞 Call 9315441078 for Best Price
Couldn't load pickup availability

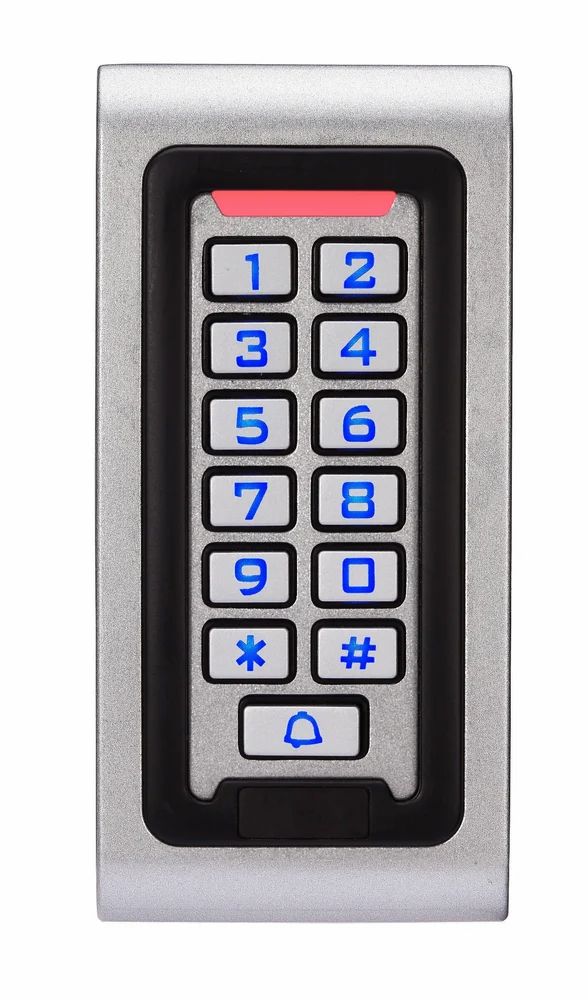

BioMax SA225 Standalone Keypad & RFID Access Controller
The BioMax SA225 is a rugged standalone keypad and RFID access control system designed for secure door access in residential, commercial, and industrial environments. Featuring an IP68 waterproof rating, a durable metal anti-vandal housing, and a stylish backlit touch keypad, the SA225 is built to deliver reliable performance even in harsh outdoor conditions.
Supporting up to 2,000 users through RFID cards or PIN codes, the SA225 also offers Wiegand 26 Input/Output for seamless integration with external access control systems. With its compact design, low power consumption, and external doorbell connection support, it provides a dependable and versatile access control solution.
Key Features
2,000 User Capacity
Stores up to 2,000 RFID cards or PIN codes, making it suitable for offices, apartments, factories, and commercial buildings.
Backlit Touch Keypad
Modern illuminated touch keypad enables comfortable operation even in low-light or nighttime environments.
IP68 Waterproof Design
Fully sealed waterproof construction ensures reliable outdoor performance under rain, dust, and harsh weather conditions.
Metal Anti-Vandal Housing
Strong metal casing provides enhanced durability and protection against physical damage or tampering.
Wiegand 26 Input & Output
Supports WG26 Input and Output for integration with external readers and professional access control systems.
External Doorbell Connection
Dedicated connection slot allows easy integration with an external doorbell for added convenience.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | BioMax |
| Model | SA225 |
| Product Type | Standalone Keypad & RFID Access Controller |
| User Capacity | 2,000 Cards / PIN Codes |
| Authentication Methods | RFID Card & PIN Code |
| Card Reading Distance | 2–5 cm |
| Operating Voltage | 12V DC |
| Idle Current | ≤ 30 mA |
| Lock Output Load | ≤ 1 A |
| Wiegand Interface | WG26 Input / Output |
| Waterproof Rating | IP68 |
| Operating Temperature | -40°C to 60°C |
| Housing Material | Metal Anti-Vandal Case |
| Keypad Type | Backlit Touch Keypad |
| Doorbell Support | External Doorbell Connection |
| Dimensions (W × H × D) | 56 × 110 × 20 mm |
Applications
- Corporate Offices
- Residential Apartments
- Commercial Buildings
- Factories & Warehouses
- Educational Institutions
- Retail Stores
- Hotels
- Outdoor Gates & Restricted Access Areas
Why Choose BioMax SA225?
The BioMax SA225 combines secure RFID and PIN authentication with a durable IP68 waterproof metal construction, making it ideal for demanding indoor and outdoor access control applications. Its 2,000-user capacity, backlit touch keypad, Wiegand 26 compatibility, and external doorbell support provide a reliable, secure, and easy-to-install solution for modern access management.
