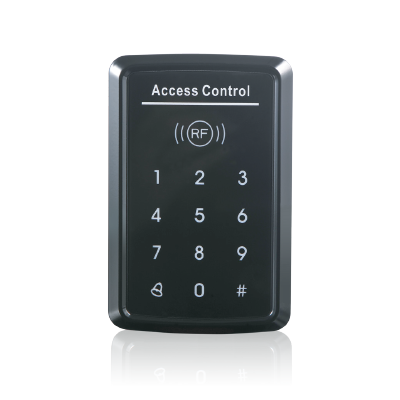

eSSL SA32-E RFID Card Reader – 125KHz EM Access Control

📞 Call 9315441078 for Best Price

SA32-E Standalone Access Control Device

The SA32-E Standalone Access Control Device is a compact and reliable access control solution featuring a contactless smart card reader and keypad authentication. Designed for offices, residential buildings, and small businesses, the device supports multiple access modes including Card, PIN, and Card + PIN. With support for up to 1,000 users, relay output, and door control interfaces, the SA32-E provides secure and convenient entry management.

Key Features

Supports access by Card, PIN, or Card + PIN
Stores up to 1,000 users
Supports EM (ID) cards and optional IC cards
Built-in relay output for door lock control
Dedicated door button and doorbell ports
Compact and easy-to-install design
Low power consumption
Reliable performance for indoor applications

Technical Specifications

Specification	Details
Model	SA32-E
Product Type	Standalone Access Control Device
Authentication Modes	Card, PIN, Card + PIN
User Capacity	1,000 Users
Card Type	EM (ID) Card, Optional IC Card
Card Reading Distance	1 – 15 cm
Operating Voltage	DC 12V ±10%
Operating Current	< 100mA
Relay Output	1 Relay Output
PUSH Output	1 PUSH (Low) Output
Door Button Port	1 Port
Doorbell Port	1 Port
Operating Temperature	0°C to 60°C
Operating Humidity	20% – 80% RH
Dimensions (L × W × H)	121 × 78 × 23 mm
Weight	110 g
