eSSL Security

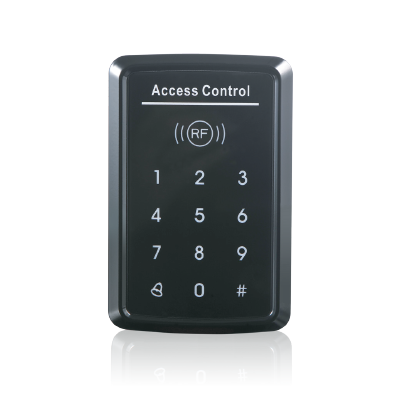

eSSL SA32-M RFID Card Reader – 13.56MHz Mifare Access Control

Rs. 0.00

Sale Sold out

SA32-M Standalone Access Control Device

The SA32-M Standalone Access Control Device is a compact RFID-based access control system designed for secure entry management using contactless smart cards and PIN authentication. It supports multiple access modes including Card, PIN, and Card + PIN, making it suitable for offices, residential buildings, and small commercial installations.

Key Features

Supports Card, PIN, and Card + PIN access modes
Built-in relay output for electric lock control
Supports PUSH (low) output for integration
Door button and doorbell interface support
Supports EM (ID) cards with optional IC card compatibility
Stores up to 1,000 users
Compact and durable design
Easy installation and configuration

Technical Specifications

Specification	Details
Model	SA32-M
Product Type	Standalone Access Control Device
Authentication Modes	Card, PIN, Card + PIN
User Capacity	1,000 Users
Card Type	EM (ID) Card, Optional IC Card
Card Reading Distance	1 – 15 cm
Operating Voltage	DC 12V ±10%
Operating Current	< 100mA
Relay Output	1 Relay Output
PUSH Output	1 PUSH (Low) Output
Door Button Port	1 Port
Doorbell Port	1 Port
Operating Temperature	0°C to 60°C
Operating Humidity	20% – 80% RH
Dimensions (L × W × H)	121 × 78 × 23 mm
Weight	110 g
