BioMax SA42 Standalone RFID Access Controller – Single-door System

📞 Call 9315441078 for Best Price

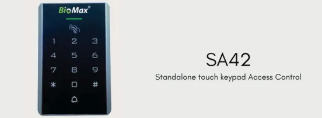

BioMax SA42 Standalone Touch Keypad RFID Access Controller

The BioMax SA42 is a compact standalone touch keypad RFID access control system designed to provide secure and convenient single-door access management for offices, apartments, schools, retail outlets, and commercial facilities. Equipped with a stylish backlit touch keypad and Proximity RFID card support, the SA42 offers fast and reliable authentication using RFID cards or password codes.

Supporting up to 2,000 users, Wiegand 26 Input/Output, adjustable door unlock timing, and built-in protection features, the SA42 delivers dependable access control while maintaining a slim and modern design suitable for both new and retrofit installations.

Key Features

Backlit Touch Keypad

Elegant illuminated touch keypad ensures comfortable operation in both daytime and low-light conditions.

2,000 User Capacity

Supports storage of up to 2,000 RFID cards and password codes for small to medium-sized access control systems.

Proximity RFID Card Support

Compatible with proximity RFID cards, providing quick and contactless access verification.

Wiegand 26 Input & Output

Features WG26 communication for seamless integration with external readers and access control panels.

Adjustable Door Unlock Time

Door opening time can be configured from 0 to 99 seconds to suit different installation requirements.

Reliable Protection Circuit

Built-in short-circuit protection and dedicated alarm and lock outputs ensure safe and stable operation.

Technical Specifications

Specification	Details
Brand	BioMax
Model	SA42
Product Type	Standalone Touch Keypad RFID Access Controller
Card Type	Proximity RFID Card
User Capacity	2,000 Cards / Passwords
Authentication Methods	RFID Card & Password
Reading Distance	2–5 cm
Operating Voltage	12V DC
Idle Current	≤ 30 mA
Lock Output Load	≤ 1 A
Alarm Output Load	≤ 2 A
Short-Circuit Protection	≤ 100 μs
Door Opening Time	0–99 Seconds (Adjustable)
Wiegand Interface	WG26 Input / Output
Operating Temperature	-10°C to 60°C
Operating Humidity	10% – 90%
Dimensions (L × H × W)	75 × 113 × 15 mm

Applications

Corporate Offices
Residential Apartments
Commercial Buildings
Retail Stores
Educational Institutions
Warehouses
Server Rooms
Restricted Access Areas

Why Choose BioMax SA42?

The BioMax SA42 combines a modern backlit touch keypad, proximity RFID authentication, Wiegand 26 compatibility, and support for up to 2,000 users in a slim and reliable standalone access controller. With adjustable door timing, built-in protection features, and dependable performance, it offers an efficient and cost-effective solution for secure single-door access control.
