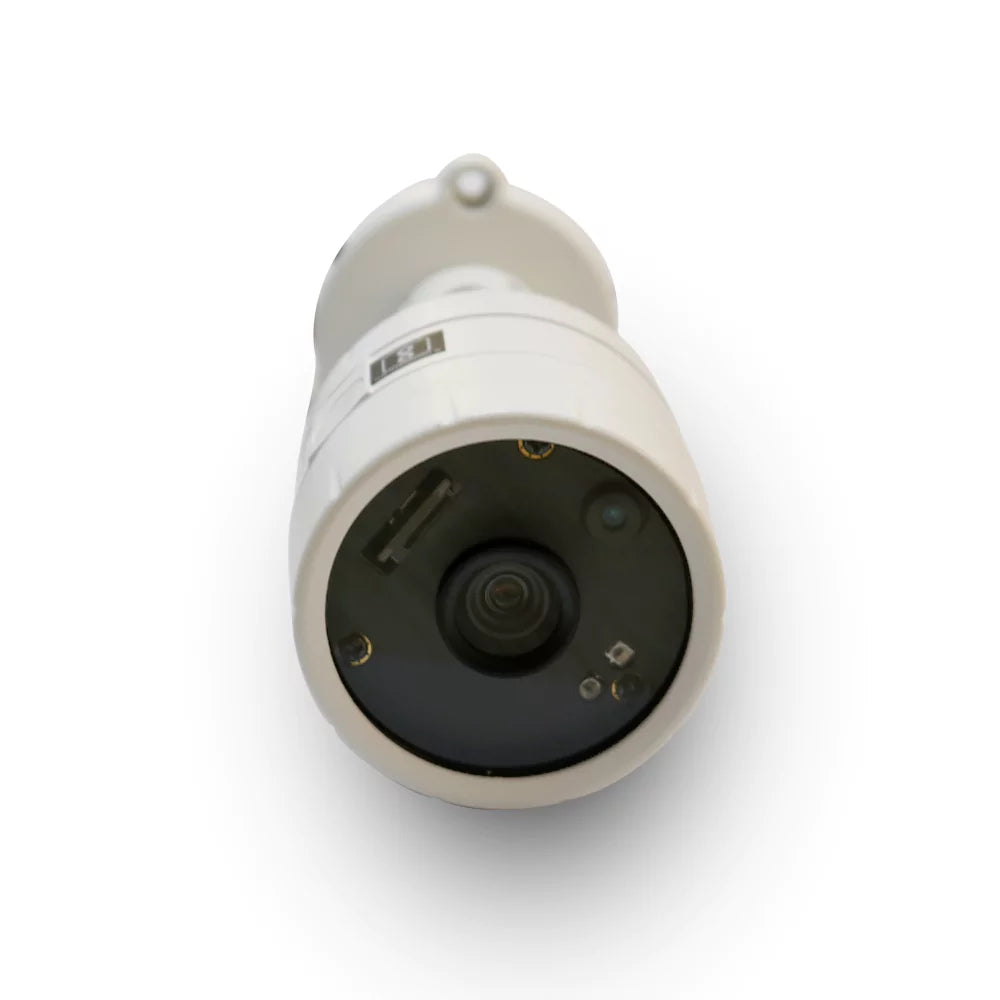

SATATYA CIBR20FL36CWP Matrix Camera

SATATYA CIBR20FL36CWP Matrix Camera

Regular price Rs. 0.00
Regular price Sale price Rs. 0.00
Sale Sold out

Features of SATATYA CIBR20FL36CWP

  • SONY STARVIS Sensor
  • H.265 Compression
  • True WDR (120dB)
  • Smart Streaming and Adaptive Streaming
  • On-board storage (512GB)
  • High Signal-to-Noise Ratio (>70dB)
Matrix SATATYA CIBR20FL36CWP Camera [caption id="attachment_21322" align="aligncenter" width="817"]CCTV SATATYA CIBR20FL36CWP
SATATYA CIBR20FL36CWP[/caption] CIBR20FL36CWP-2mp-ir-bullet-fixed-3dot6mm-lens-with-audio [su_button url="https://ampletrails.com/wp-content/uploads/2020/10/CIBR20FL36CWP-2mp-ir-bullet-fixed-3dot6mm-lens-with-audio.pdf" target="blank" style="soft" center="yes" icon="icon: envelope-o" text_shadow="0px 0px 0px #000000" desc="Datasheet of 2MP IR Bullet Fixed 3.6 mm Lens"] SATATYA CIBR20FL36CWP Matrix IP Camera[/su_button]

More about SATATYA CIBR20FL36CWP

2MP IR Bullet Camera with 3.6 mm Lens Previously, most surveillance cameras were bulky, sturdily built devices that often looked out of place in a professional business landscape. These days, however, things have changed. It is now totally possible to have both, a functional security product and one that is aesthetically pleasing at the same time. Matrix Professional Series Bullet IP Cameras are designed specifically to blend in with the minimalistic business aesthetics of modern enterprises. Our robust and discreet range of Professional Series Bullet IP Cameras can harmonize seamlessly with your business design, making it an unobtrusive form of surveillance. With Sony STARVIS series sensors, and resolutions as high as 5MP, these cameras give exceptional quality images in the most challenging environments. Apart from the latest compression technique of H.265 that reduces storage space, these cameras have built-in video analytics like Motion Detection, Intrusion Detection, and TripWire to ensure real-time security. These Cameras are best suited for SOHO and Medium-scale Enterprises and have variants in different focal lengths in 5MP, 3MP, and 2MP resolutions. [su_table]
TECHNICAL SPECIFICATIONS of SATATYA CIBR20FL36CWP
IMAGE SENSOR
Resolution 2 MP (1920 x 1080)
    Sensor Type and Size 1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back-Illuminated Image sensor (EXMOR Technology - STARVIS Series)
LENS
  Minimum Illumination Colour - 0.01 Lux @F1.2 (AGC ON) Monochrome - 0 Lux
Focal Length 3.6mm
Focus Range 0.3m to infinity
    Field of View (FOV) HFOV - 90° VFOV - 47° DFOV - 110°
Lens Mount M12
Focus Fixed focus
Aperture (F#) F 1.2
Iris Type Fixed
IR Range 50m
IR Led Wavelength 850nm
IR Switching Auto/ Manual
AUDIO INTERFACE
Audio IN 1
Audio OUT 1
Two-way Audio Supported
Audio Compression G.726 and G.711
Alarm In Yes
Alarm Out Yes
HARDWARE SPECIFICATIONS
SD Card Up to 512GB
Camera Adjustment Angle Pan: 0° to 180° Tilt: 0° to 180° Rotation: 0° to 360°
IMAGE AND VIDEO
No of Stream Profiles 4
      Stream Profiles 1: 1080p(2MP)/720p/D1/2CIF/CIF/QCIF up to 30fps (H.265/H.264) 2: D1/2CIF/CIF/QCIF up to 30fps (H.265/H.264) 3: 1080p(2MP)/720p/D1/2CIF/CIF/QCIF up to 5fps (MJPEG) 4: 720p/D1/2CIF/CIF/QCIF up to 30fps (H.265/H.264/MJPEG)
Available Resolutions 1920 x 1080, 720p, D1, 2CIF, CIF, QCIF
Max Resolution 1920 x 1080
Bitrate 128 kbps-8Mbps
Bitrate Type CBR, VBR
Video Compression H.265, H.264, MJPEG
Frame Rate 1-30fps
Shutter Speed 1/25-1/34000
Adaptive Streaming Yes
ONVIF Profiles S and G
Edge Recording Yes
Alarm Recording Pre and Post
Motion Recording Yes
Video Parameters Snapshot, Region of Interest (ROI), BLC, Day/Night Settings
Privacy Masks 3
WDR True WDR (120dB)
SNR 71db
Image Enhancement Saturation/Contrast/Sharpness/Brightness/Auto Exposure
DNR 2D &3D
    Video Analytics Motion/No Motion Detection, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion, Audio Exception, IP Conflict, Network Disconnect, Storage Full, Time-Triggered
EVENTS AND ACTIONS
Upload Image SD, NAS, FTP
Upload Clip SD, NAS, FTP
Notifications E-mail, SMS, TCP
PROTOCOLS SUPPORTED
  Supported protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, HTTPS, TLS/SSL, FTP, ICMP, IGMP v2 & v3
Web Viewer Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0
    Plugins IE: Matrix ActiveX Chrome: VLC plugin (2.0.4) and Quicktime(7.7.5) Mozilla: VLC plugin (2.0.4) and Quicktime(7.7.5)
OPERATING PARAMETERS
Power Supply 12V (DC); 802.3af (PoE)
Power Consumption <7W
Operating Humidity Less than 90% RH (non-condensing)
Operating Temperature -20°C to 50°C
Storage Temperature -20°C to 50°C
PHYSICAL PARAMETERS
Communication interface 10Base-T/100BaseTX Ethernet (RJ-45)
Weight 880 gm
Colour Pantone 7527C
Dimensions 301.6 x 84 x 92.5 (Length x Height x Width)
Storage NAS, SD Card
Certifications BIS, CE, IP66, FCC Part-15 Class-A, ONVIF S & G, IK10, UL
[/su_table] DOWNLOADS - TECHNICAL SPECIFICATIONS If you want to get more details please fill the form below. Our experts will contact you to give face attendance and various other solutions as per your requirements. Call us at 9315441078 or email us at info@ampletrails.com [wpforms id="25849"]
