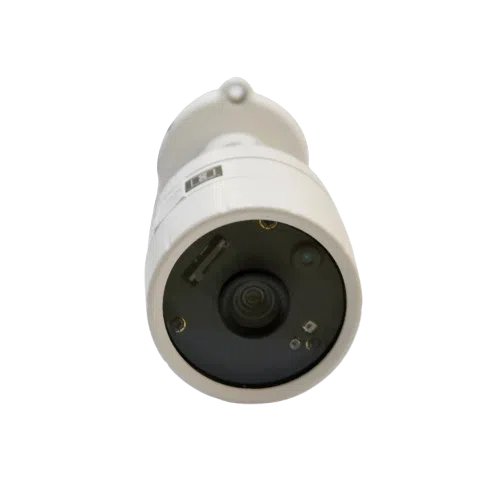

SATATYA MIBR20FL36CWS Matrix CCTV

SATATYA MIBR20FL36CWS Matrix CCTV

Regular price Rs. 0.00
Regular price Sale price Rs. 0.00
Sale Sold out

Features of SATATYA MIBR20FL36CWS

  • SONY STARVIS Sensor
  • H.265 Compression
  • True WDR (120dB)
  • Smart Streaming and Adaptive Streaming
  • On-board storage (512GB)
  • High Signal-to-Noise Ratio (>70dB)
Matrix Professional Series IP Cameras are built using superior components such as Sony STARVIS sensor and higher MTF lens to offer unmatched image quality, especially during the low light conditions. Powered by the True WDR algorithm, these cameras offer consistent image quality even in highly varying lighting conditions. Built-in intelligent analytics including Intrusion Detection, Trip Wire, etc. ensure real-time security. Moreover, H.265 compression and Automatic Motion based Frame Rate Reduction save bandwidth and storage up to 50% [caption id="attachment_21341" align="aligncenter" width="750"]SATATYA MIBR20FL36CWS Matrix Bullet IP Camera SATATYA Matrix Bullet IP Camera[/caption] MIBR20FL36CWS-2mp-ir-bullet-fixed-3dot6mm-lens [su_button url="https://ampletrails.com/wp-content/uploads/2020/10/MIBR20FL36CWS-2mp-ir-bullet-fixed-3dot6mm-lens.pdf" target="blank" style="soft" center="yes" icon="icon: envelope-o" text_shadow="0px 0px 0px #000000" desc="Datasheet of 2MP IR Dome Fixed 3.6mm Lens"] SATATYA MIBR20FL36CWS IP Camera[/su_button] 1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back-Illuminated Image sensor (EXMOR Technology - STARVIS Series) You can continue reading more about SATATYA MIBR20FL36CWS Matrix CCTV here [su_table]
TECHNICAL SPECIFICATIONS of MIBR20FL36CWS
IMAGE SENSOR
Resolution 2 MP (1920 x 1080)
    Sensor Type and Size 1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back Illuminated Image sensor (EXMOR Technology - STARVIS Series)
LENS
  Minimum Illumination Colour - 0.01 Lux @F1.2 (AGC ON) Monochrome - 0 Lux
Focal Length 3.6mm
Focus Range 0.3m to infinity
    Field of View (FOV) HFOV - 90° VFOV - 47° DFOV - 110°
Lens Mount M12
Focus Fixed focus
Aperture (F#) F 1.2
Iris Type Fixed
IR Range 30m
IR Led Wavelength 850nm
IR Switching Auto/ Manual
HARDWARE SPECIFICATIONS
SD Card Up to 512GB
Camera Adjustment Angle Pan: 0° to 180° Tilt: 0° to 180° Rotation: 0° to 360°
IMAGE AND VIDEO
No of Stream Profiles 4
        Stream Profiles Profile 1: 1080p(2MP)/720p/D1/2CIF/CIF/QCIF up to 30fps (H.265/ H.264) Profile 2: D1/2CIF/CIF/QCIF up to 30fps(H.265/H.264) Profile 3: 1080p(2MP)/720p/D1/2CIF/CIF/QCIF up to 5 fps(MJPEG) Profile 4: 720p/D1/2CIF/CIF/QCIF up to 30 fps(H.265/H.264/MJPEG)
Available Resolutions 1920 x 1080, 720p,D1,2CIF,CIF,QCIF
Max Resolution 1920 x 1080
Bitrate 128 kbps-8Mbps
Bitrate Type CBR, VBR
Video Compression H.265, H.264, MJPEG
Frame Rate 1-30fps
Shutter Speed 1/25-1/34000
Adaptive Streaming Yes
ONVIF Profiles Both S and G
Edge Recording Yes
Alarm Recording Pre and Post
Motion Recording Yes
Video Parameters Snapshot, Region of Interest (ROI), BLC, Day/Night Settings
Privacy Masks 3
WDR True WDR (120dB)
SNR 71db
Image Enhancement Saturation/ Contrast/ Sharpness/Brightness/Auto Exposure
DNR 2D &3D
    Video Analytics Motion/No Motion Detection, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion, IP Conflict, Network Disconnect, Storage Full, Time Triggered
EVENTS AND ACTIONS
Upload Image SD, NAS, FTP
Upload Clip SD, NAS, FTP
Notifications E-mail, SMS, TCP
PROTOCOLS SUPPORTED
  Supported protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, HTTPS, , TLS/SSL, FTP, ICMP, IGMP v2 & v3
Web Viewer Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0
    Plugins IE: Matrix ActiveX Chrome: VLC plugin(2.0.4) and Quicktime(7.7.5) Mozilla: VLC Plugin(2.0.4) and Quicktime(7.7.5)
OPERATING PARAMETERS
Power Supply 12V (DC); 802.3af (PoE)
Power Consumption <5.5W
Operating Humidity Less than 90% RH (non-condensing)
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 50°C
PHYSICAL PARAMETERS
Communication interface 10Base-T/100BaseTX Ethernet (RJ-45)
Weight 500gm
Colour Pantone 7527C
Dimensions 155 x 75 (Length x Width)
Storage NAS, SD Card
Certifications BIS, CE, IP66, FCC Part-15 Class-B, ONVIF S & G, IK10
[/su_table] SATATYA MIBR20FL36CWS Matrix CCTV is a very good choice. Call us at 9315441078.  By filling the below form, you can get in touch with our experts for your query related to Matrix IP cameras.  Email us at info@ampletrails.com [wpforms id="25849"] PROFESSIONAL SERIES BULLET IP CAMERAS
