SATATYA MIDR50FL40CWP P2

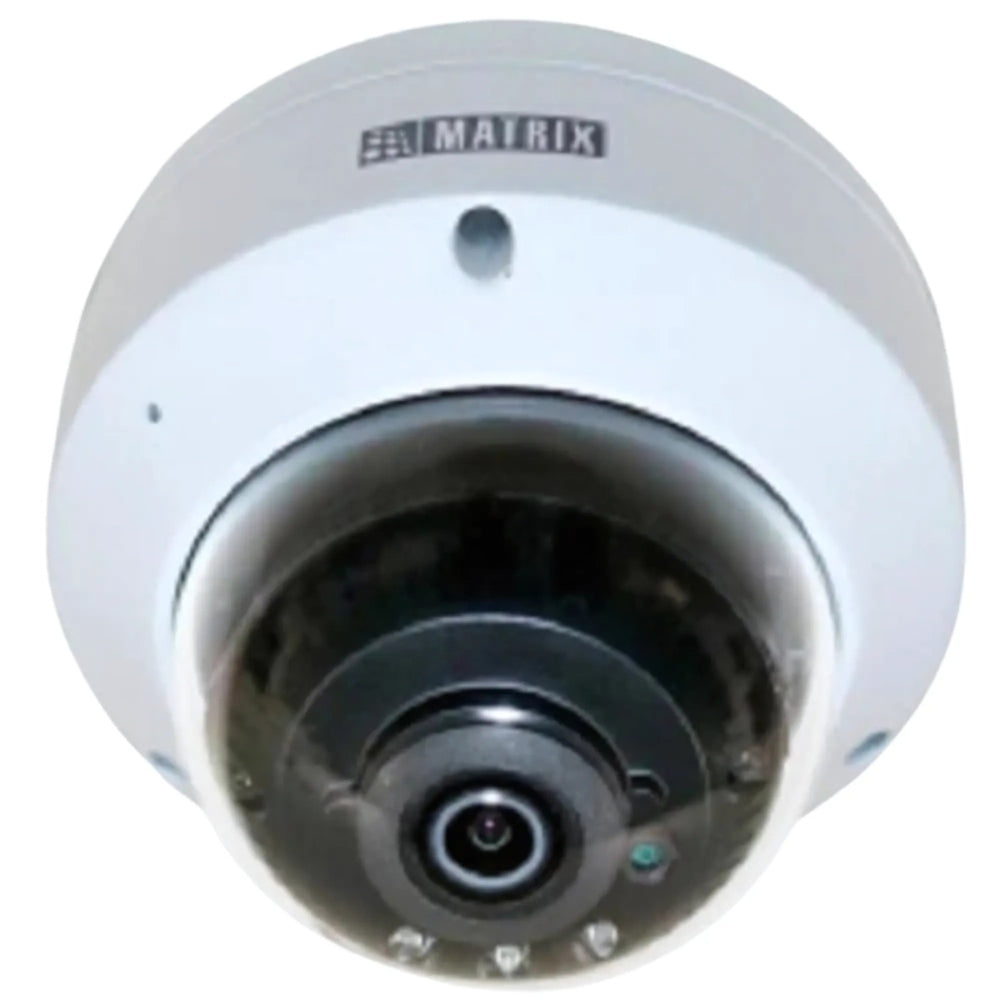

Matrix Satatya 5MP IR Dome IP Camera 4.0mm Lens with Audio Support

The Matrix Professional Series 5MP IR Dome Camera is crafted to deliver precision surveillance and exceptional video clarity, even in challenging lighting conditions. Featuring a SONY STARVIS sensor and high-quality lens, this camera ensures superior imaging performance during low-light situations. Equipped with intelligent video analytics and advanced cybersecurity, this dome camera is ideal for modern surveillance systems across commercial and industrial settings.

Features

• 5MP resolution for crystal-clear video capture (1920 x 1080 @ 30fps)
• 4.0mm fixed lens with wide-angle coverage
• True WDR (120dB) for consistent performance in varying lighting
• STARVIS back-illuminated sensor for enhanced low-light visibility
• 3D Digital Noise Reduction for sharper images with minimal distortion
• IR Range up to 30 meters for clear night vision
• Two-way audio support (Premium Variants) for live communication
• Smart Video Analytics: Motion Detection, Intrusion, Tripwire, Audio Exception
• Multiple video compression formats: H.265, H.264, MJPEG
• Four stream profile support with Adaptive Streaming and ROI
• PoE and 12V DC compatible power supply
• Onboard storage with SD card support up to 512GB and NAS connectivity
• IP67 and IK10 rated weatherproof and vandal-resistant housing
• Certified for secure operations with AES 256 encryption, TLS/SSL, and signed firmware

Technical Specifications

• Image Sensor: 1/2.8” SONY CMOS, STARVIS Series
• Resolution: 1920 x 1080 @ 30fps
• Minimum Illumination: 0.01 Lux (Color), 0 Lux (IR ON)
• Lens: 4.0mm Fixed
• Field of View (FOV): HFOV 87.5°, VFOV 44.4°, DFOV 104.9°
• IR Range: Up to 30 meters
• Audio Interface: 1 Audio In / 1 Audio Out (Premium Variants)
• Audio Support: Two-way, Full Duplex
• Audio Compression: G.726, G.711 a-law/u-law
• Video Compression: H.265, H.264, MJPEG
• Video Streams: 4 (1920x1080p, D1, 720p, MJPEG @ various frame rates)
• Edge Recording: Yes (Pre/Post, SD, NAS, SFTP)
• Motion Alerts: Email, SMS, TCP
• Cybersecurity: AES 256 encryption, TLS 1.2, Secure Boot, Signed Firmware
• Power Supply: 12V DC or PoE (IEEE 802.3af)
• Power Consumption: ~7W
• Operating Temperature: -30°C to 60°C
• Certifications: BIS, CE, FCC, IP67, IK10, RoHS, ONVIF S/G/T
• Dimensions: Ø126 x 100 mm
• Weight: 740g
• Color: Infinity White

Why Choose Matrix Professional Series 5MP IR Dome Camera?

Engineered for high-performance security, this dome camera offers a rich set of features including premium video quality, robust cybersecurity, and real-time smart analytics. Whether for indoor surveillance or outdoor coverage, the Matrix Professional Series camera ensures unmatched protection and operational efficiency.
