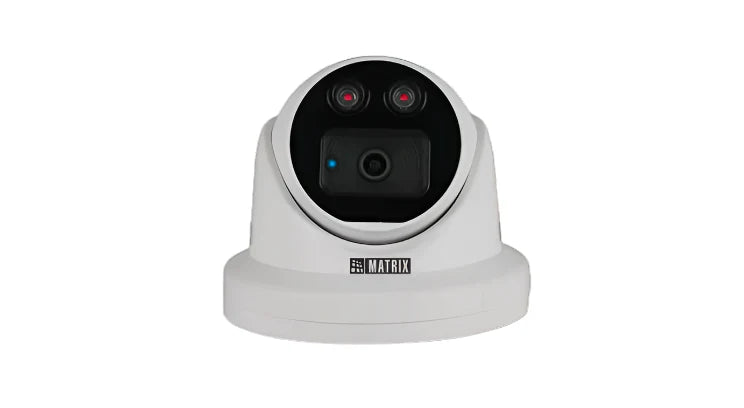

Matrix Satatya MITC80FL36CWS P2 8MP All Color Camera 3.6mm Lens with Aperture of f F1.6

Rs. 11,511.50

Sale Sold out

Product Details

The Matrix Satatya MITC80FL36CWS P2 is a high-performance 8MP all-color IP camera, designed to deliver unmatched surveillance quality even in the most challenging lighting conditions. Engineered with a 1/2.8″ SONY STARVIS CMOS sensor and a 3.6mm fixed lens with an aperture of F1.6, this camera captures crisp, ultra-HD images at 3840×2160 resolution. It ensures full-color clarity in low-light environments down to 0.05 Lux and supports up to 30m infrared visibility for complete day/night monitoring.

Advanced features such as True WDR (120dB), 2D & 3D DNR, and intelligent video analytics like motion, tamper, and intrusion detection ensure enhanced visibility and proactive monitoring. The camera is also built with robust cybersecurity features like AES-256 encryption, signed firmware, HTTPS streaming, and secure boot protection, making it ideal for sensitive, high-security environments. It supports ONVIF S, G, and T profiles for seamless integration and PoE for simplified installation. With durable IP67-rated housing and support for edge storage, this camera is your all-in-one solution for reliable, intelligent surveillance.

Features

Feature	Details
Ultra-HD 8MP Resolution	Provides detailed image capture at 3840 × 2160 for clear and actionable footage.
1/2.8″ SONY STARVIS CMOS Sensor	Delivers back-illuminated imaging performance for excellent low-light visibility.
Full Color at Low Light	Enables color video capture down to 0.05 Lux with an F1.6 aperture.
Fixed 3.6mm Lens	Provides an 84° horizontal field of view for wide-area surveillance.
30 Meter Infrared Range	Enables night vision in complete darkness with automatic/manual IR switching.
Four Stream Profiles	Offers flexible bandwidth and resolution configurations with H.264, H.265, and MJPEG support.
True 120dB WDR	Balances image quality in high-contrast lighting environments.
Video Analytics	Includes motion, no-motion, tamper, tripwire, and intrusion detection for smart security monitoring.
Privacy Masking	Supports up to 8 customizable zones for restricting sensitive areas in the camera view.
AES 256 and RSA 2048 Encryption	Secures video and data transmissions against cybersecurity threats.
IP67 Weatherproof Design	Protects the camera against dust and rain for reliable outdoor operation.
Edge Storage Support	Enables recording to NAS or SFTP without requiring an NVR.
ONVIF Compatibility	Supports Profiles S, G, and T for easy integration with third-party VMS solutions.

Technical Specifications

Specification	Details
Image Sensor	1/2.8″ SONY STARVIS CMOS, progressive scan with back-illumination for superior imaging.
Resolution	8MP (3840 × 2160), with support for multiple resolutions down to CIF.
Lens Options	2.8mm, 3.6mm, and 6mm fixed lenses with F1.6 aperture.
Minimum Illumination	0.05 Lux for color and 0 Lux in IR mode.
IR Range	Up to 30 meters with 850nm wavelength for enhanced night vision.
Video Streams	Four profiles with H.265, H.264, and MJPEG compression support.
Frame Rate	1–30 fps with adaptive streaming capabilities.
Bitrate	128kbps–16Mbps with CBR and VBR modes.
Video Enhancements	ROI, BLC, Day/Night settings, brightness, contrast, saturation, sharpness, and white balance.
WDR	True WDR at 120dB for optimal contrast management.
DNR	2D and 3D digital noise reduction for enhanced image clarity.
Analytics Functions	Motion, tamper, intrusion, trip/no-trip, and zone monitoring.
Alerts	IP conflict, network disconnect, and storage full notifications.
Event Actions	Supports image/video uploads to NAS, SD, or SFTP with email and SMS notifications.
Network Protocols	TCP/IP, HTTP, HTTPS, RTP, RTSP, FTP, SFTP, SNMP, and more.
Web Browser Support	IE, Firefox, and Chrome with web viewer interface.
Cybersecurity	AES-256 encryption, RSA-2048, secure boot, signed firmware, HTTPS, and 802.1x authentication.
Power Supply	PoE (IEEE 802.3af), with approximately 7W power consumption.
Operating Conditions	-30°C to 60°C with less than 95% non-condensing humidity.
Dimensions	Ø138.58 mm × 118.97 mm
Weight	720g
Certifications	BIS, CE, FCC, IP67, and ONVIF Profiles S, G, and T.

Why Choose Matrix Satatya MITC80FL36CWS 8MP All Color Camera?

Matrix Satatya MITC80FL36CWS stands at the forefront of surveillance technology, combining ultra-HD clarity with unmatched low-light performance. Whether you're safeguarding a commercial facility, public space, or critical infrastructure, this camera ensures round-the-clock protection with intelligent video analytics, robust encryption, and seamless third-party compatibility. Designed for durability and dependability, its IP67 rating makes it suitable for all weather conditions, while PoE simplifies installation. With advanced cybersecurity measures built-in, your data and video streams remain secure from end to end. When precision, reliability, and smart technology matter—Matrix delivers.
