Matrix Satatya PTZ5040P 5MP IR Dome PTZ with 38X Zoom

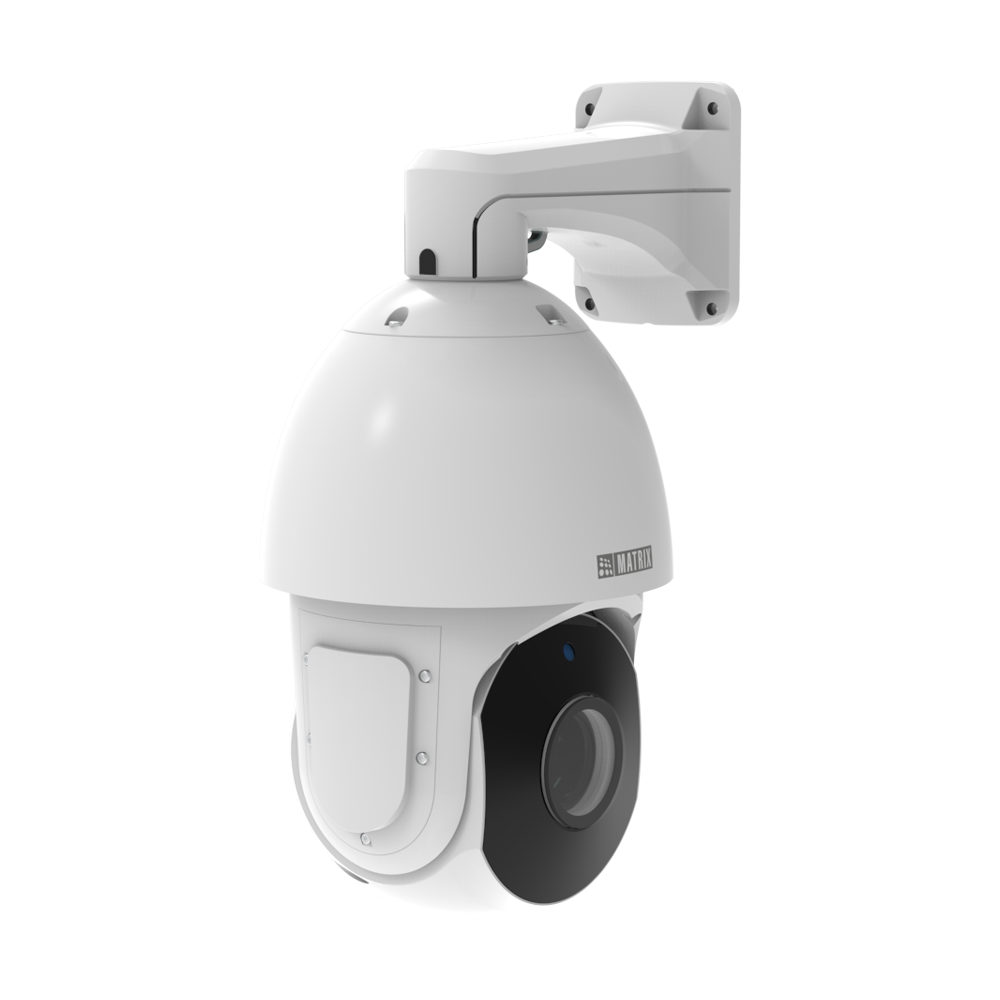

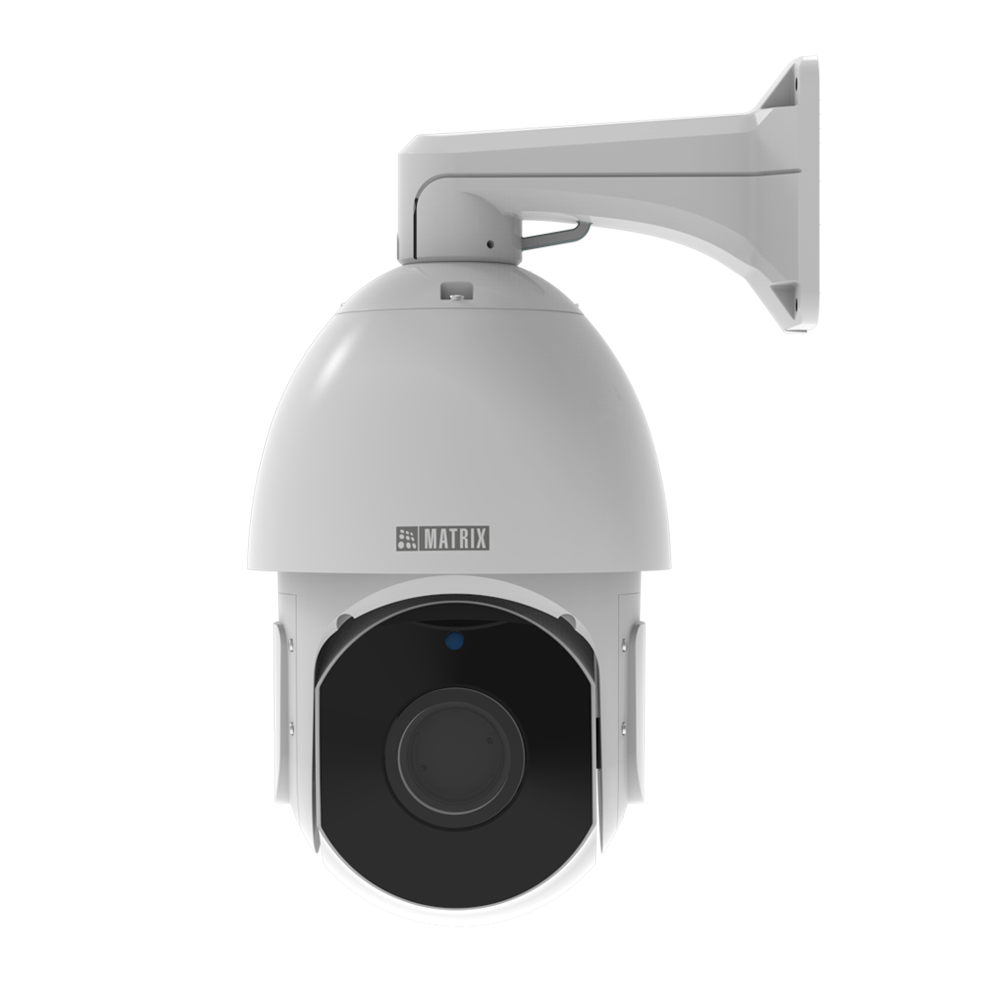

Matrix SATATYA PTZ5040P – 5MP IR Dome PTZ Camera with 38X Optical Zoom

The Matrix SATATYA PTZ5040P is a high-performance 5MP Pan-Tilt-Zoom (PTZ) IP camera designed for large-area surveillance where long-range visibility and precise monitoring are critical. With 38X optical zoom, 360° pan, and high-speed tilt control, it delivers clear identification of distant objects without losing image quality. It is widely used in perimeter security, industrial sites, smart cities, and transport infrastructure deployments.

Powered by a 1/2.8” Sony STARVIS CMOS sensor, the camera delivers sharp imaging even in low-light conditions, while True WDR (120dB) ensures balanced video in challenging lighting environments.

Key Features

• 5MP high-resolution PTZ surveillance camera
• 38X optical zoom with additional digital zoom capability
• 360° continuous pan with high-speed tilt movement
• IR night vision support up to 300 meters
• Sony STARVIS sensor for enhanced low-light performance
• True WDR (120dB) for backlight correction
• H.265 / H.264 / MJPEG compression support for efficient storage
• Up to 300 preset positions for automated patrol monitoring
• Edge recording support via SD card (up to 512GB)
• ONVIF compatibility for easy integration with VMS/NVR systems

Applications

Large Area Surveillance

Ideal for monitoring highways, parking lots, stadiums, and open industrial spaces where long-distance zoom is required.

Perimeter Security

Helps track movement along boundaries of factories, warehouses, and restricted zones.

Smart City Projects

Used in traffic monitoring, public safety surveillance, and city-wide command centers.

Transport & Infrastructure

Suitable for airports, railway stations, ports, and logistics hubs requiring wide-area visibility.

Industrial Facilities

Ensures continuous monitoring of manufacturing plants, storage yards, and high-risk zones.

Technical Specifications

System Requirements
