Product Details

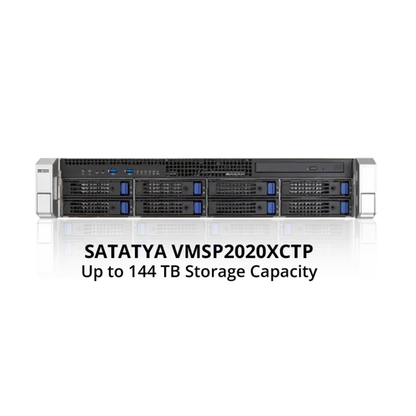

Matrix SATATYA VMSP2020XCTP Video Management System Platform with 8HDD Slots and Cyber Secure VMS
The Matrix SATATYA VMSP2020XCTP is a robust video management system built on enterprise-grade server hardware with integrated cybersecurity features. Preloaded with Windows 10 IoT Enterprise LTSC 2019 and the SATATYA SAMAS PLT license, this platform offers seamless camera integration, intelligent video management, and high-performance recording. With support for up to 255 IP cameras and powerful data backup policies, it’s ideal for large-scale surveillance operations.
Key Features
- High-Performance Processor: 3rd Gen 6-Core Xeon processor with 32GB RAM for high-speed processing.
- Preloaded Software: Windows 10 IoT Enterprise LTSC 2019 with SATATYA SAMAS PLT license.
- Hot-Swap Storage: 8 hot-swap 3.5"/2.5" SATA HDD/SSD bays, expandable up to 18TB (HDD not included).
- Redundant Power Supply: Dual hot-swap 800W (1+1) redundant power supply for reliable, uninterrupted operation.
- High-Speed Networking: 2× 10GbE LAN ports with 512Mbps uplink and 512Mbps downlink throughput.
- Camera Compatibility: Supports ONVIF and major camera brands with resolutions up to 12MP.
- Flexible Decoding: Supports 1× 4K, 4× 1080P, 9× 720P, or 16× D1 decoding.
- Video Compression: Supports H.265, H.264, and MJPEG compression formats.
- Storage Optimization: Adaptive recording and 3-level data backup for efficient storage management.
- Hardware RAID: Built-in RAID support for enhanced data redundancy and reliability.
- Scalability: Expandable up to 255 IP camera licenses for large-scale surveillance deployments.
Technical Specifications
| Specification | Details |
|---|---|
| Processor | 3rd Gen Xeon 6-Core |
| RAM | 32GB |
| Storage Bays | 8× 3.5"/2.5" SATA, up to 18TB (HDD Not Included) |
| Operating System | Windows 10 IoT Enterprise LTSC 2019 |
| VMS License | SATATYA SAMAS PLT (Expandable) |
| Network Ports | 2× 10GbE LAN |
| Video Input | Supports Cameras up to 12MP Resolution |
| Decoding | 1× 4K / 4× 1080P / 9× 720P / 16× D1 |
| Video Compression | H.265, H.264, MJPEG |
| Redundancy | Dual 800W Redundant Power Supply |
| RAID | Supported |
| Throughput | Uplink: 512Mbps / Downlink: 512Mbps |
| Scalability | Expandable up to 255 IPC |
| Backup | 3-Level Backup Policies with Adaptive Recording |
| Camera Support | ONVIF and Major Camera Brands |
Why Choose Matrix SATATYA VMSP2020XCTP Video Management System Platform?
This system combines enterprise-grade performance with top-tier surveillance management. It’s ideal for critical infrastructure, corporate environments, or any application needing powerful recording, decoding, and cybersecurity in one scalable solution. With flexible storage, high throughput, and expandable camera licensing, it adapts to growing security demands with ease.
