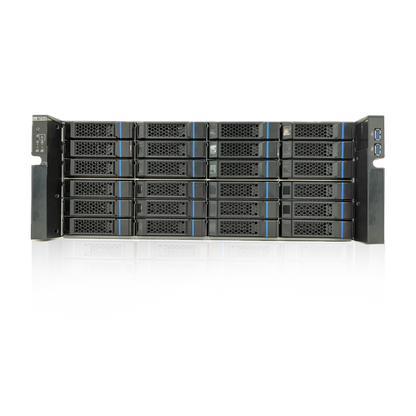

Matrix SATATYA VMSP4020XCTP Video Management System with 24 HDD Slots and Cyber Secured VMS
The Matrix SATATYA VMSP4020XCTP Video Management System is engineered for enterprise-level surveillance with powerful hardware and built-in security features. It comes preloaded with Windows 10 IoT Enterprise LTSC 2019 and the SATATYA SAMAS PLT license, supporting up to 255 IP cameras. With 24 hot-swap HDD bays, a 16-core Xeon processor, 64GB RAM, and a GTX1650 GPU, it ensures smooth video processing, high reliability, and secure data handling in demanding environments.
Key Features
- 3rd Gen 16-core Xeon processor with 64GB RAM for high-performance operation
- Preloaded with Windows 10 IoT Enterprise LTSC 2019 and expandable SATATYA SAMAS PLT license
- 24 hot-swap 3.5"/2.5" SATA HDD/SSD bays (up to 18TB per slot, HDDs not included)
- Dual input hot-swap 1200W (1+1) redundant power supply for system stability
- 2x 10GbE and 2x 1GbE LAN ports with 512Mbps uplink and downlink throughput
- Supports Onvif and major camera brands up to 12MP resolution
- Decoding support for 1x 4K, 4x 1080P, 9x 720P, or 16x D1 streams
- Video compression formats include H.265, H.264, and MJPEG
- GPU GTX1650 and hardware RAID controller for fast processing and data protection
- Multiple display outputs: HDMI, VGA, DP, and DVI-D
- Expandable camera support up to 255 IPC
Technical Specifications
| Specification | Details |
|---|---|
| Processor | 3rd Gen Xeon 16-Core |
| RAM | 64GB |
| Storage Bays | 24x 3.5"/2.5" SATA (18TB max each, HDD not included) |
| OS | Windows 10 IoT Enterprise LTSC 2019 |
| VMS License | SATATYA SAMAS PLT (Expandable) |
| Network Ports | 2x 10GbE, 2x 1GbE |
| Video Input | Supports up to 12MP resolution |
| Decoding | 1 x 4K / 4 x 1080P / 9 x 720P / 16 x D1 |
| Video Compression | H.265, H.264, MJPEG |
| GPU | GTX1650 |
| RAID | Hardware RAID controller included |
| Display Outputs | 1x HDMI, 1x VGA, 1x DP, 1x DVI-D |
| Power Supply | Dual 1200W (1+1) Redundant |
| Throughput | Uplink - 512Mbps / Downlink - 512Mbps |
| Scalability | Supports up to 255 IP cameras |
| Camera Support | Onvif and major brands |
Why Choose Matrix SATATYA VMSP4020XCTP Video Management System?
With massive storage capacity, advanced security, and smart camera integration, this Matrix VMS platform is ideal for high-security installations. It delivers seamless performance, efficient storage, and reliable monitoring, making it the top choice for enterprises needing 24x7 surveillance.
