eSSL SB-ES-3012-2 Double Lane Swing Barrier – Stainless Steel Lobby Access Control
eSSL SB-ES-3012-2 Double Lane Swing Barrier – Stainless Steel Lobby Access Control
Couldn't load pickup availability

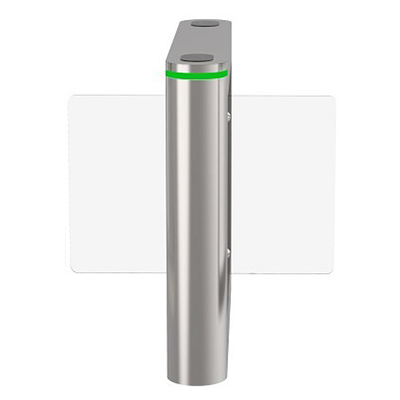

eSSL SB-ES-3012-2 Multi-Lane Swing Barrier
The eSSL SB-ES-3012-2 is a premium multi-lane intelligent swing barrier designed for secure and efficient pedestrian access control in high-traffic environments. Built with a durable SUS304 stainless steel cabinet, transparent acrylic swing arms, and a high-performance motor system, the SB-ES-3012-2 delivers smooth operation, reliable performance, and long service life. It is ideal for corporate offices, factories, educational institutions, airports, metro stations, and commercial buildings.
Multi-Lane Access Management
Designed for multiple pedestrian lanes to ensure smooth and efficient traffic flow during peak hours.
Compact & Elegant Design
Features a slim SUS304 stainless steel cabinet with transparent acrylic swing arms for modern entrance aesthetics.
Advanced Safety Protection
Equipped with 4 pairs of infrared sensors for anti-tailgating and safe pedestrian management.
Multiple Authentication Support
Compatible with RFID cards, QR code scanners, fingerprint readers, face recognition devices, and third-party access control systems.
Key Features
- Multi-Lane Intelligent Swing Barrier.
- Premium SUS304 Stainless Steel Construction.
- 10 mm Transparent Acrylic Swing Arm.
- 4 Pairs of Infrared Sensors.
- Fast Operating Time of 0.2 Seconds.
- Pass Rate up to 20-35 Persons per Minute.
- Bi-Directional Access Control.
- Low Noise and Smooth Operation.
- Supports Multiple Authentication Technologies.
- Compact and Elegant Design.
- Suitable for Indoor and Sheltered Outdoor Installation.
- Long Service Life with Minimal Maintenance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SB-ES-3012-2 |
| Type | Multi-Lane Swing Barrier |
| Product Size (L × W × H) | 1200 × 185 × 980 mm |
| Pass Width | 600 mm |
| Net Weight | 65 kg |
| Cabinet Thickness | 1.0 mm |
| Cabinet Material | 1.0 mm SUS304 Stainless Steel |
| Top Cover Material | 1.2 mm SUS304 Stainless Steel |
| Arm Material | 10 mm Transparent Acrylic |
| Driver | Brushed Motor |
| Infrared Sensors | 4 Pairs |
| Pass Rate | 20-35 Persons/Minute |
| Operating Time | 0.2 Seconds |
| Power Supply | 100-240V AC |
| Operational Voltage | 24V DC |
| Maximum Power Consumption | 35W |
| Frequency | 50-60 Hz |
| Working Temperature | -25°C to +70°C |
| MCBF | 5,000,000 Cycles |
| Installation Environment | Indoor & Sheltered Outdoor |
Operating Features
- Single-direction and bi-directional passage modes.
- Automatic reset if passage is not completed within preset time.
- Infrared anti-tailgating protection.
- Smooth and low-noise operation.
- Easy integration with access control systems.
- Designed for continuous high-frequency operation.
Applications
- Corporate Offices
- Commercial Buildings
- Educational Institutions
- Factories & Manufacturing Plants
- Government Facilities
- Metro Stations
- Airports
- Banks & Financial Institutions
- IT Parks & Business Centres
- Residential Communities
Why Choose eSSL SB-ES-3012-2?
- Designed specifically for multi-lane pedestrian access management.
- Premium SUS304 stainless steel construction.
- Fast 0.2-second operation.
- Supports multiple authentication technologies.
- 4 infrared sensors for enhanced safety.
- 5 million cycle durability.
- Low maintenance and reliable performance.
Package Includes
- 1 × eSSL SB-ES-3012-2 Multi-Lane Swing Barrier
- Installation Accessories
- User Manual
