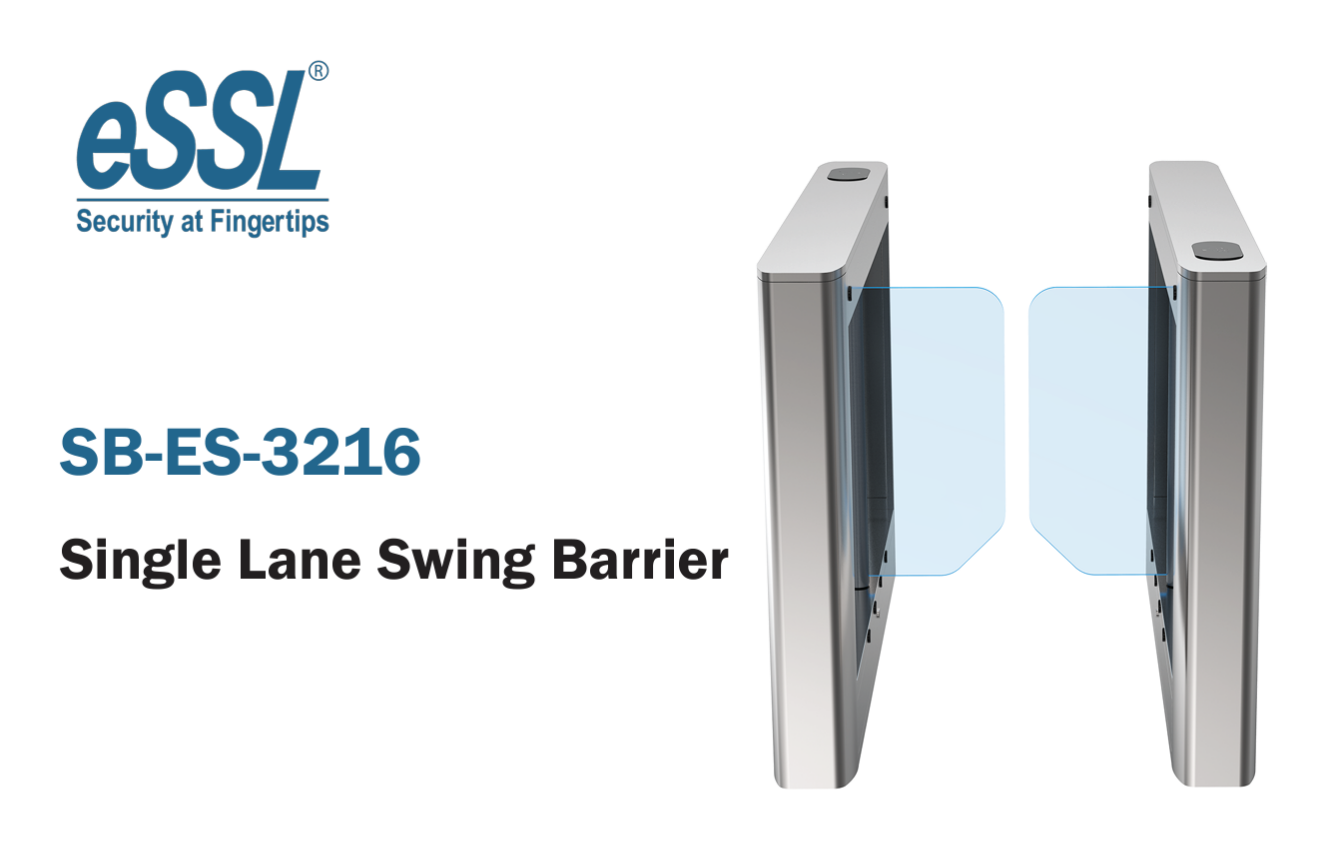

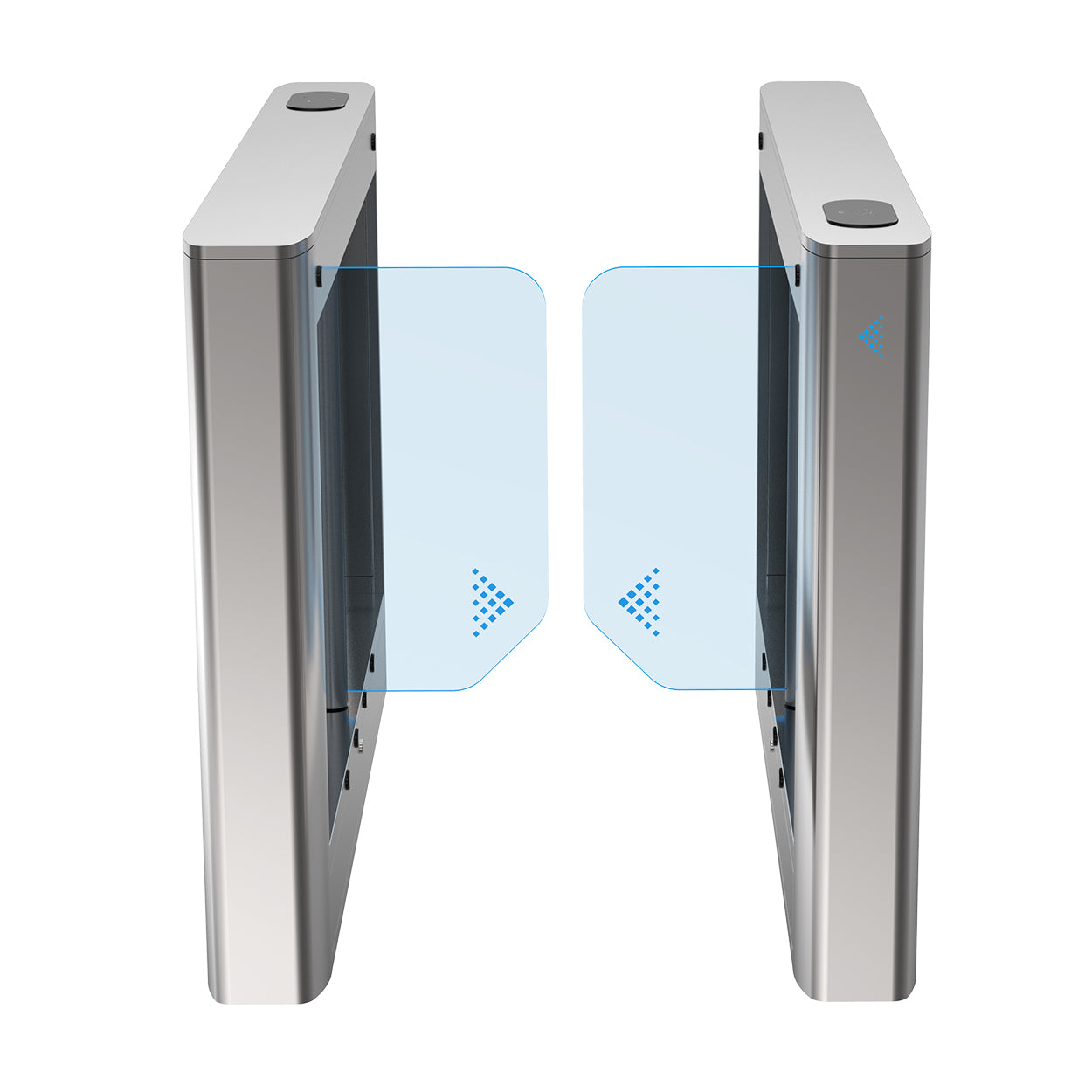

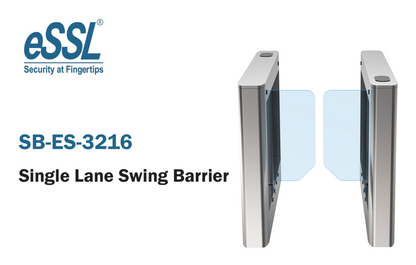

eSSL SB-ES-3216 Intelligent Swing Barrier
The eSSL SB-ES-3216 is a premium intelligent swing barrier designed for secure and efficient pedestrian access control in high-traffic environments. Featuring a robust SUS304 stainless steel cabinet, brushless motor technology, and advanced infrared safety sensors, the SB-ES-3216 delivers smooth, reliable, and low-noise operation. It is ideal for corporate offices, commercial buildings, airports, metro stations, educational institutions, and government facilities.
Elegant & Modern Design
Features a sleek stainless-steel body with acrylic swing panels and LED indicators, making it suitable for premium entrances.
Advanced Safety Protection
Equipped with infrared anti-pinch protection and automatic opening during power failure to ensure safe evacuation.
Fast & Efficient Access Control
Supports high pedestrian throughput while maintaining secure and controlled access management.
Multiple Authentication Support
Compatible with RFID cards, QR code scanners, fingerprint readers, face recognition devices, and third-party access control systems.
Key Features
- Premium SUS304 Stainless Steel Construction.
- Brushless Motor for Smooth and Quiet Operation.
- Bi-Directional Access Control.
- Automatic Opening During Power Failure.
- Infrared Anti-Pinch Protection.
- Anti-Tailgating and Anti-Reverse Functions.
- LED Direction Indicators.
- Supports One-Way and Two-Way Passage Modes.
- Compatible with RFID, Face Recognition, Fingerprint & QR Code Systems.
- Suitable for Indoor and Sheltered Outdoor Installations.
- Long Service Life with Minimal Maintenance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SB-ES-3216 |
| Type | Intelligent Swing Barrier |
| Cabinet Material | SUS304 Stainless Steel |
| Barrier Material | Acrylic Swing Arm |
| Dimensions (L × W × H) | 1500 × 150 × 980 mm |
| Lane Width | 600 mm Standard (Optional up to 900 mm) |
| Pass Rate | 30 – 35 Persons/Minute |
| Motor Type | DC Brushless Motor |
| Unlock Time | 0.2 Seconds |
| Power Supply | AC 100V ~ 240V, 50/60Hz |
| Operating Voltage | 24V DC |
| Power Consumption | 50W |
| Operating Temperature | -20°C to +70°C |
| Working Humidity | 5% ~ 90% RH (Non-Condensing) |
| Protection Rating | IP54 |
| Communication Interface | Dry Contact / RS485 |
| MCBF | 5 Million Cycles |
| Installation Environment | Indoor / Sheltered Outdoor |
Operating Features
- Automatic unlocking during power failure.
- Anti-tailgating and anti-reverse passage protection.
- Infrared anti-pinch safety mechanism.
- Automatic reset if passage is not completed within the preset time.
- Supports one-way and bi-directional operation modes.
- Easy integration with access control systems.
Applications
- Corporate Offices
- Commercial Buildings
- Educational Institutions
- Government Facilities
- Metro Stations
- Airports
- Banks & Financial Institutions
- Factories & Manufacturing Plants
- IT Parks & Business Centres
- Residential Communities
Why Choose eSSL SB-ES-3216?
- Premium and elegant swing barrier design.
- Fast and reliable operation with brushless motor technology.
- Supports multiple authentication technologies.
- Automatic emergency opening during power failure.
- Advanced anti-pinch and anti-tailgating protection.
- 5 million cycle durability with low maintenance.
- Suitable for premium access control applications.
Package Includes
- 1 × eSSL SB-ES-3216 Swing Barrier
- Installation Accessories
- User Manual
