eSSL SB-ES-3216-2 Double Lane Swing Barrier Gate for High-Capacity Access
eSSL SB-ES-3216-2 Double Lane Swing Barrier Gate for High-Capacity Access
Couldn't load pickup availability

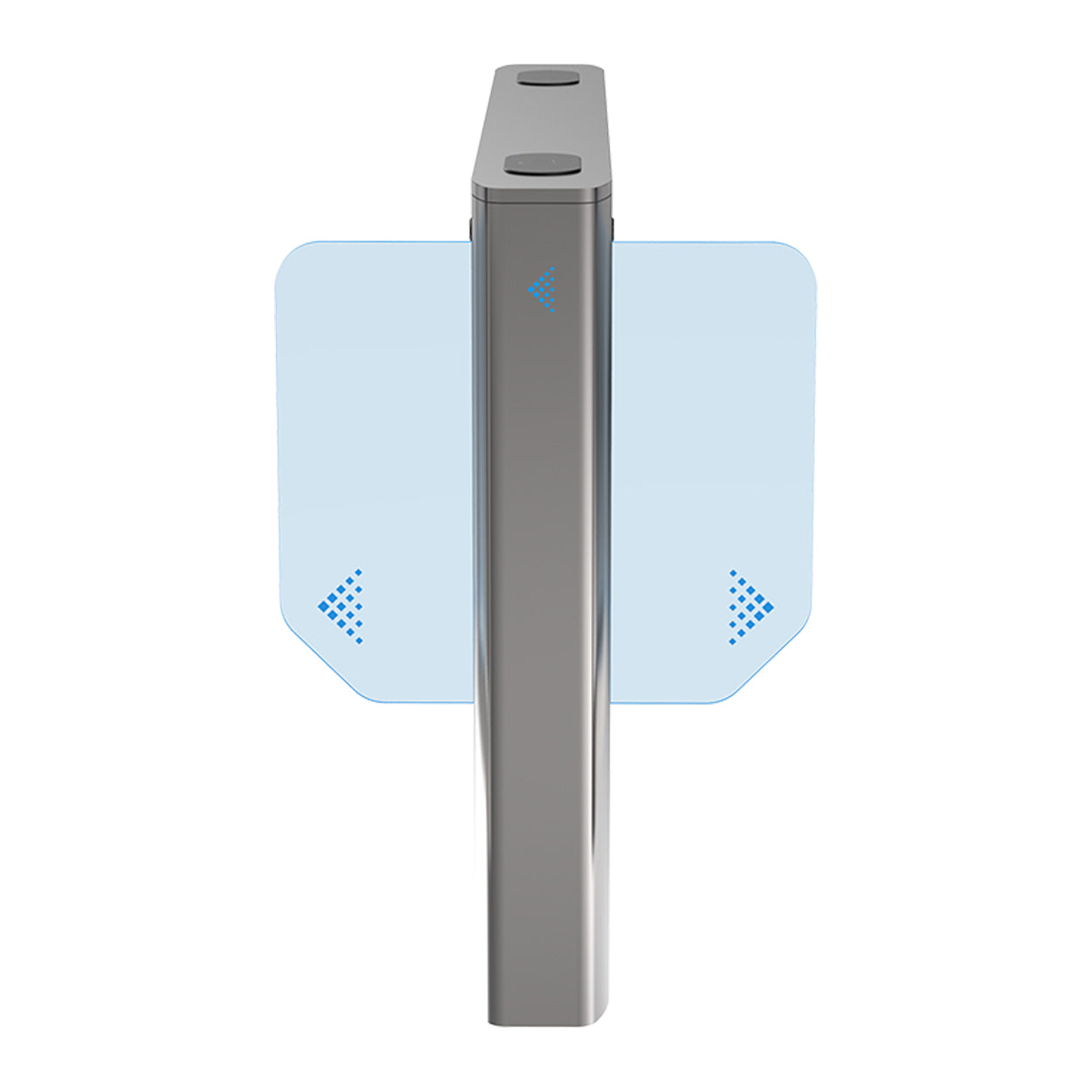

eSSL SB-ES-3216-2 Dual Lane Swing Barrier
The eSSL SB-ES-3216-2 is a premium dual-lane intelligent swing barrier designed for secure and efficient pedestrian access management in high-traffic environments. Featuring a durable SUS304 stainless steel cabinet, brushless motor technology, and advanced infrared safety protection, the SB-ES-3216-2 provides smooth, low-noise operation and exceptional reliability. It is ideal for corporate offices, airports, metro stations, educational institutions, government facilities, and commercial buildings.
Dual Lane Access Management
Designed for two pedestrian lanes, ensuring smooth and efficient entry and exit in high-traffic areas.
Advanced Safety Protection
Features infrared anti-pinch protection and automatic opening during power failure for safe emergency evacuation.
Elegant & Modern Design
Premium SUS304 stainless steel construction with acrylic swing panels and LED direction indicators.
Multiple Authentication Support
Compatible with RFID cards, QR code scanners, fingerprint readers, face recognition devices, and third-party access control systems.
Key Features
- Dual Lane Intelligent Swing Barrier.
- Premium SUS304 Stainless Steel Construction.
- DC Brushless Motor Technology.
- Bi-Directional Access Control.
- Automatic Opening During Power Failure.
- Infrared Anti-Pinch Protection.
- Anti-Tailgating and Anti-Reverse Functions.
- LED Direction Indicators.
- Supports One-Way and Two-Way Passage Modes.
- Compatible with RFID, Fingerprint, Face Recognition & QR Code Systems.
- Low Noise and Smooth Operation.
- Suitable for Indoor and Sheltered Outdoor Installations.

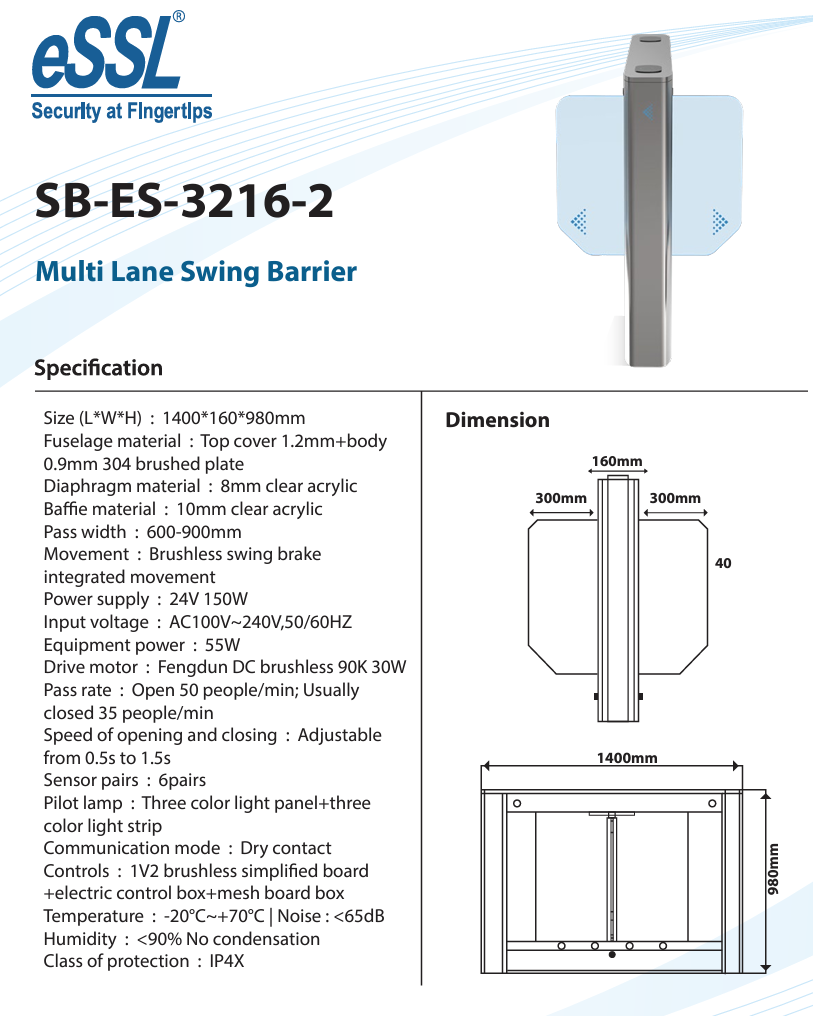

Technical Specifications
| Specification | Details |
|---|---|
| Model | SB-ES-3216-2 |
| Type | Dual Lane Intelligent Swing Barrier |
| Cabinet Material | SUS304 Stainless Steel |
| Barrier Material | Acrylic Swing Arm |
| Dimensions (L × W × H) | 1500 × 230 × 980 mm |
| Passage Width | 600 mm per Lane (Optional up to 900 mm) |
| Pass Rate | 30–35 Persons/Minute per Lane |
| Motor Type | DC Brushless Motor |
| Unlock Time | 0.2 Seconds |
| Power Supply | AC 100V ~ 240V, 50/60Hz |
| Operating Voltage | 24V DC |
| Power Consumption | 50W |
| Operating Temperature | -20°C to +70°C |
| Working Humidity | 5% ~ 90% RH (Non-Condensing) |
| Protection Rating | IP54 |
| Communication Interface | Dry Contact / RS485 |
| MCBF | 5 Million Cycles |
| Installation Environment | Indoor / Sheltered Outdoor |
Operating Features
- Automatic unlocking during power failure.
- Anti-tailgating and anti-reverse passage protection.
- Infrared anti-pinch safety mechanism.
- Automatic reset if passage is not completed within the preset time.
- Supports one-way and bi-directional operation modes.
- Easy integration with access control systems.
Applications
- Corporate Offices
- Commercial Buildings
- Educational Institutions
- Government Facilities
- Metro Stations
- Airports
- Banks & Financial Institutions
- Factories & Manufacturing Plants
- IT Parks & Business Centres
- Residential Communities
Why Choose eSSL SB-ES-3216-2?
- Dual-lane design for high pedestrian throughput.
- Premium SUS304 stainless steel construction.
- Fast and reliable brushless motor operation.
- Supports multiple authentication technologies.
- Automatic emergency opening during power failure.
- Advanced anti-pinch and anti-tailgating protection.
- 5 million cycle durability with minimal maintenance.
Package Includes
- 1 × eSSL SB-ES-3216-2 Dual Lane Swing Barrier
- Installation Accessories
- User Manual
*Specifications and features are subject to change by the manufacturer without prior notice.
