eSSL SB-ES-3218 Swing Barrier Gate – Stainless Steel Lobby Access Control
eSSL SB-ES-3218 Swing Barrier Gate – Stainless Steel Lobby Access Control
Couldn't load pickup availability

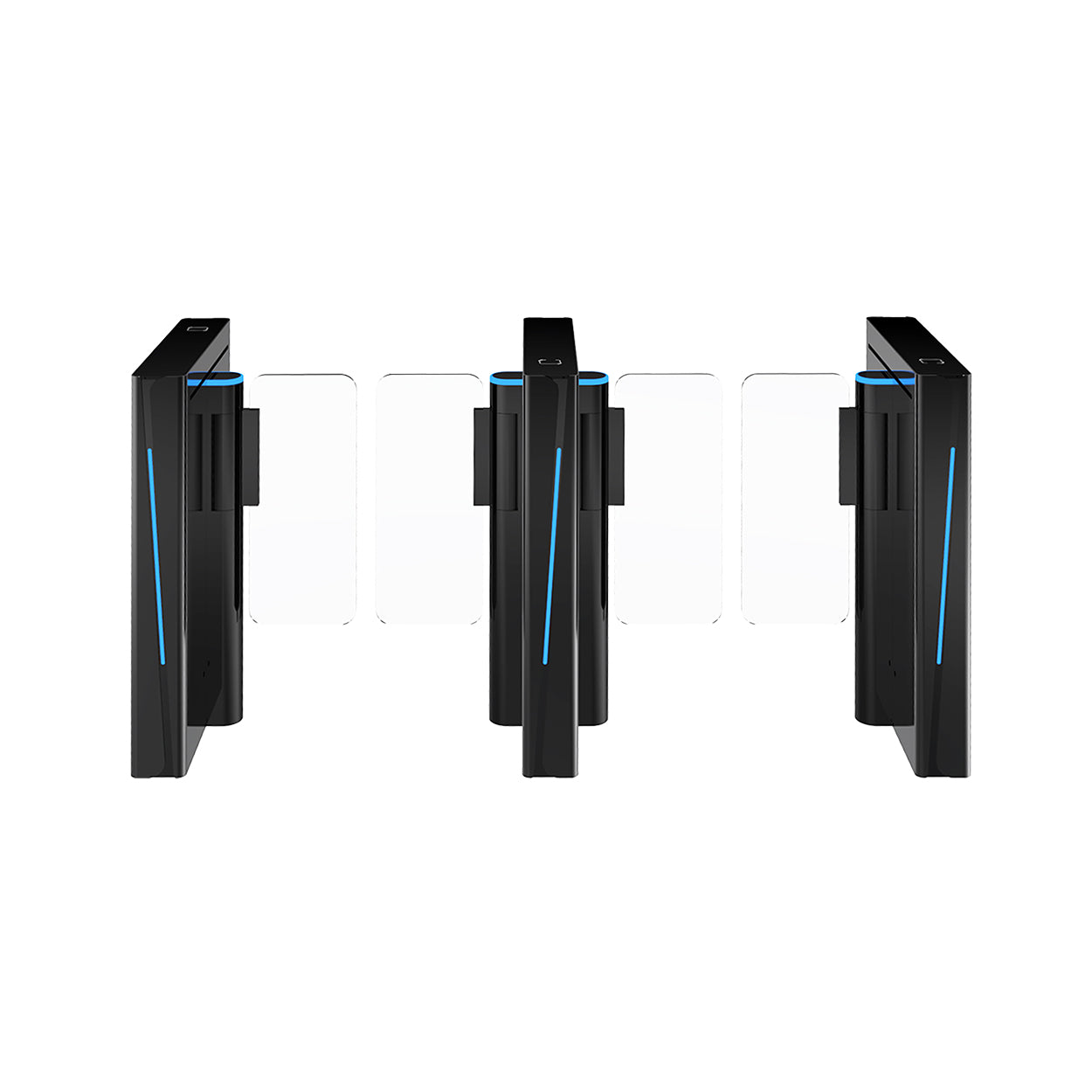

eSSL SB-ES-3218 Intelligent Swing Barrier
The eSSL SB-ES-3218 is a premium intelligent swing barrier designed for secure and efficient pedestrian access control in offices, commercial buildings, educational institutions, metro stations, and other high-traffic environments. Featuring a compact and elegant design with a robust metal body and clear acrylic swing arms, the SB-ES-3218 delivers smooth operation, advanced safety protection, and long-term reliability.
Compact & Elegant Design
Designed with a slim cabinet and transparent acrylic swing arms, making it ideal for modern building entrances and limited installation spaces.
Advanced Safety Features
Equipped with 6 pairs of infrared sensors, anti-tailgating protection, anti-reverse passage detection, and automatic opening during power failure.
Fast & Smooth Operation
Powered by a DC brushless motor with adjustable opening and closing speed from 0.5 to 1.5 seconds.
Multiple Authentication Support
Compatible with IC cards, ID cards, QR scanners, barcode readers, and face recognition systems.
Key Features
- Compact Intelligent Swing Barrier.
- DC Brushless Motor Technology.
- 6 Pairs of Infrared Sensors.
- Pass Rate of 35-50 Persons per Minute.
- Passage Width of 600-900 mm.
- Automatic Opening During Power Failure.
- Anti-Tailgating and Anti-Reverse Protection.
- Automatic Reset Function.
- Infrared Anti-Clip Function.
- RGB LED Indicator Lights.
- Supports IC Card, ID Card, QR Code and Face Recognition.
- Low Noise and Smooth Operation.
- Supports One-Way and Two-Way Access Modes.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SB-ES-3218 |
| Type | Intelligent Swing Barrier |
| Dimensions (L × W × H) | 600 × 130 × 980 mm |
| Material | Top Cover: 3.0 mm, Body: 8.0 mm |
| Arm Material | 8 mm Clear Acrylic |
| Passage Width | 600 – 900 mm |
| Height from Ground (Upper Part) | 900 mm |
| Height from Ground (Lower Part) | 245 mm |
| Movement | Standard Speed Gate Movement |
| Power Supply | 24V DC, 500W |
| Input Voltage | AC100V – 240V, 50/60Hz |
| Drive Unit | DC Brushless Motor |
| Pass Rate | 35 – 50 Persons/Minute |
| Opening Speed | 0.5 – 1.5 Seconds (Adjustable) |
| Sensor Pairs | 6 Pairs |
| Clutch Size | Φ80 mm |
| Pilot Lamp | RGB Light |
| Communication Mode | RS485 |
| Controller | 1V2 Brushless Controller |
| Noise Level | ≤65 dB |
| Operating Temperature | -20°C to +70°C |
| Humidity | ≤90% RH (Non-Condensing) |
| Protection Rating | IP4X |
| Installation Environment | Indoor |
Operating Features
- Automatic opening during power failure for emergency evacuation.
- Anti-tailgating and anti-reverse passage protection.
- Automatic reset if passage is not completed within the preset time.
- Infrared anti-clip safety protection.
- Supports memory and non-memory card modes.
- Supports one-way and bi-directional access modes.
- Open and normally closed operating modes available.
Applications
- Corporate Offices
- Commercial Buildings
- Educational Institutions
- Government Facilities
- Metro Stations
- Airports
- Banks & Financial Institutions
- Factories & Manufacturing Plants
- Residential Communities
- IT Parks & Business Centres
Why Choose eSSL SB-ES-3218?
- Compact design suitable for narrow installation spaces.
- Premium acrylic swing arm with RGB indicators.
- High throughput of up to 50 persons per minute.
- Advanced infrared safety protection.
- Supports multiple authentication technologies.
- Smooth and quiet brushless motor operation.
- Reliable and low-maintenance design.
Package Includes
- 1 × eSSL SB-ES-3218 Swing Barrier
- Installation Accessories
- User Manual
*Specifications and features are subject to change by the manufacturer without prior notice.
