eSSL SB-TL-129 Swing Barrier Gate – Stainless Steel Lobby Access Control
eSSL SB-TL-129 Swing Barrier Gate – Stainless Steel Lobby Access Control
📞 Call 9315441078 for Best Price
Couldn't load pickup availability

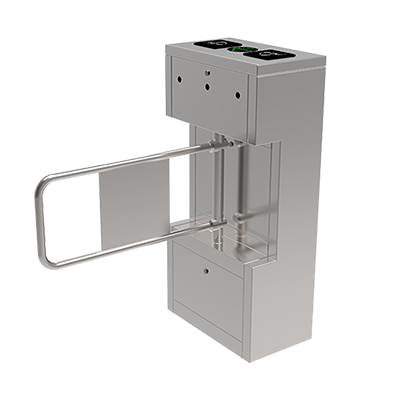

eSSL SB-TL-129 Swing Barrier
The eSSL SB-TL-129 is an intelligent swing barrier designed for secure and efficient pedestrian access control in offices, commercial buildings, educational institutions, airports, metro stations, and industrial facilities. Featuring a durable construction, smooth DC electromagnetic drive, and advanced safety features, the SB-TL-129 provides reliable operation for medium and high-traffic entrances.
Secure Pedestrian Management
Provides controlled entry and exit with intelligent anti-illegal entry detection and multiple operating modes.
Advanced Safety Protection
Equipped with photocell and mechanical anti-clipping technology to ensure safe operation.
Multiple Authentication Support
Compatible with IC cards, ID cards, barcode readers, magnetic cards, QR systems, and third-party access control devices.
Emergency & Flexible Operation
Supports single passage, bi-directional passage, always open, and always locked operating modes.
Key Features
- Intelligent Swing Barrier.
- Passage Width up to 550 mm.
- Throughput Rate up to 30 Persons per Minute.
- Photocell and Mechanical Anti-Clipping Protection.
- Voice and Strobe Light Alerts.
- Single Direction and Bi-Directional Passage Modes.
- Delay Closing Function (1–60 Seconds Adjustable).
- Automatic Identification using IC/ID Cards and Barcode Systems.
- Always Open and Always Locked Modes.
- Low Maintenance and Reliable Performance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SB-TL-129 |
| Type | Swing Barrier |
| Passage Width (Max) | ≤ 550 mm |
| Throughput Rate | 30 Persons/Minute |
| Power Supply | 100V ~ 240V AC |
| Operational Voltage | 24V DC |
| Maximum Power Consumption | 30 W |
| Frequency | 50 ~ 60 Hz |
| Protection Rating | IP54 |
| Working Temperature | -25°C to +70°C |
| Drive Type | DC Electro-Magnetic Drive |
| Dimensions (L × W × H) | 800 × 480 × 980 mm |
| Net Weight (Including Bars) | 40 kg |
| Communication | Compatible with Third-Party Access Control Systems |
| Installation Environment | Indoor & Sheltered Outdoor |
Operating Features
- Single passage in the set direction.
- Bi-directional single passage.
- Automatic identification using IC, ID, barcode, or magnetic cards.
- Adjustable closing delay from 1 to 60 seconds.
- Photocell and mechanical anti-clipping protection.
- Voice and strobe light alerts.
- Always free or always locked operating modes.
Applications
- Corporate Offices
- Commercial Buildings
- Educational Institutions
- Government Facilities
- Metro Stations
- Airports
- Factories & Manufacturing Plants
- IT Parks & Business Centres
- Residential Communities
- Public Facilities
Why Choose eSSL SB-TL-129?
- Compact and elegant swing barrier design.
- Supports multiple authentication technologies.
- Advanced anti-clipping protection for user safety.
- Reliable DC electromagnetic drive mechanism.
- High throughput of up to 30 persons per minute.
- IP54 protection for dependable operation.
- Easy integration with access control systems.
- Long service life and low maintenance requirements.
Package Includes
- 1 × eSSL SB-TL-129 Swing Barrier
- Installation Accessories
- User Manual
