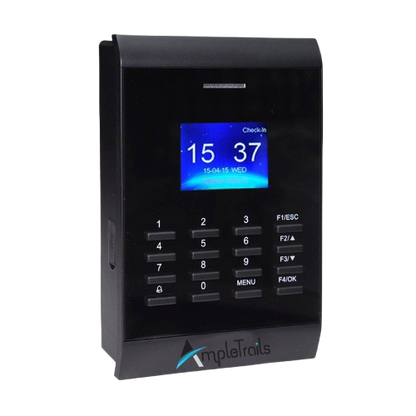

SC405 RFID ATTENDANCE SYSTEM

SC405 RFID ATTENDANCE SYSTEM

Rs. 9,963.00
Rs. 11,025.00 Rs. 9,963.00
Sale Sold out

SC-405 Proximity Time Attendance & Access Control System

The SC-405 Proximity Time Attendance & Access Control System is a reliable RFID-based attendance and access management solution designed for offices, factories, schools, and commercial facilities. It supports up to 30,000 RFID card users and stores 50,000 transaction logs, making it ideal for medium to large organizations. Equipped with TCP/IP, USB Host, and RS232 communication, the SC-405 delivers fast identification, seamless integration, and dependable access control functionality.

Key Features

  • Supports up to 30,000 RFID card users
  • Stores up to 50,000 attendance transactions
  • Fast identification speed of less than 1 second
  • 32-bit Microprocessor for reliable performance
  • RFID card reading distance of 8–10 cm
  • TCP/IP, RS232, and USB Host communication
  • Supports Push Data functionality
  • Built-in access control with Wiegand 26-bit interface
  • Compatible with exit readers and door accessories
  • Optional support for Mifare, HID Proximity, and Anti-passback

Technical Specifications

Specification Details
Model SC-405
Product Type RFID Time Attendance & Access Control System
User Capacity 30,000 RFID Cards
Transaction Capacity 50,000 Logs
Processor 32-bit Microprocessor
Identification Speed ≤ 1 Second
Card Reading Distance 8 – 10 cm
Communication TCP/IP, RS232, USB Host 2.0
Power Supply 12V DC, 400mA
Operating Temperature 0°C to 45°C
Operating Humidity 20% – 80% RH
Dimensions (L × W × H) 143 × 95.5 × 39.5 mm
Wiegand Interface 26-bit Input / Output
Access Control 50 Time Zones, 5 Groups, 10 Time Combinations
Supported Exit Devices JS500E, KR500E, Push Button, No Touch Exit
Push Data Supported
Optional Features Mifare, HID Proximity, Anti-passback

Product Features

  • High-capacity RFID attendance and access control system
  • Fast and accurate card authentication
  • Built-in access control with configurable time zones
  • Multiple communication interfaces for easy deployment
  • Supports Push Data for real-time attendance synchronization
  • Compatible with various exit readers and door accessories
  • Reliable operation for continuous daily use

Applications

  • Corporate Offices
  • Manufacturing Units
  • Educational Institutions
  • Hospitals & Healthcare Facilities
  • Warehouses & Logistics Centers
  • Retail Stores
  • Government Buildings
  • Commercial Establishments

Why Choose SC-405?

  • Large user and transaction storage capacity
  • Reliable RFID-based attendance and door access management
  • Supports Push Data for centralized monitoring
  • Flexible communication and access control options
  • Easy integration with existing security infrastructure
  • Ideal for medium and large organizations

Package Includes

  • 1 × SC-405 RFID Time Attendance Device
  • Power Adapter
  • Wall Mounting Accessories
  • User Manual
