Matrix Comsec

SETU VFX880

Rs. 20,892.16

~~Rs. 22,981.38~~ Rs. 20,892.16

Sale Sold out

Features of SETU VFX880

VoIP-FXO-FXS Gateway with 8 FXO, 8 VoIP Channels

VoIP Protocol	SIP (9 SIP Accounts)
VoIP Channels	8
FXO Port	8
FXS Ports	0
Ethernet Ports	2
Power Supply	12V DC (Adaptor Based)

Download PDF

Product Description

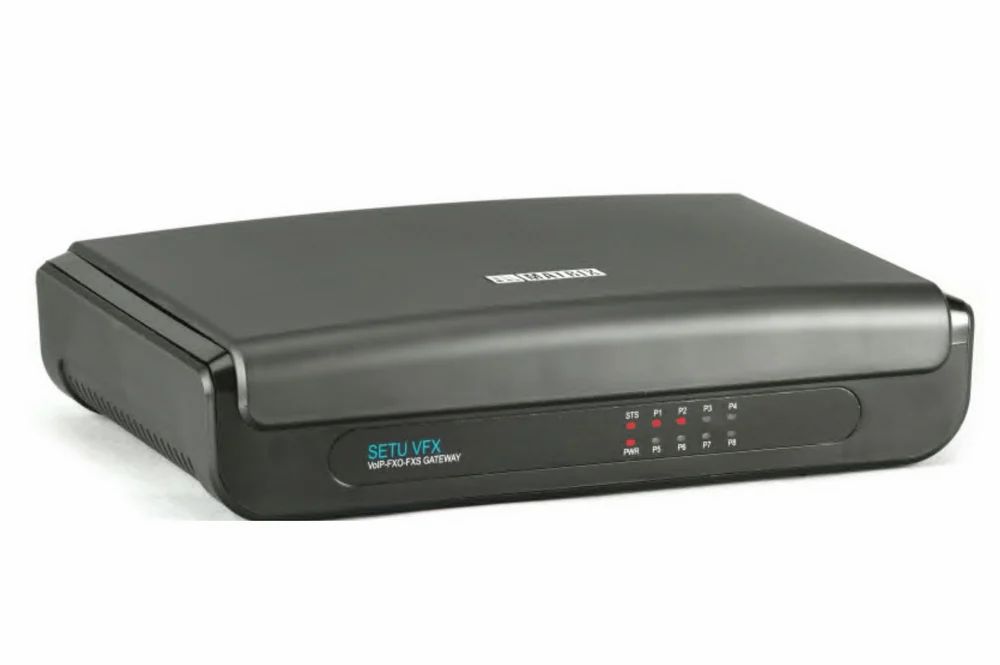

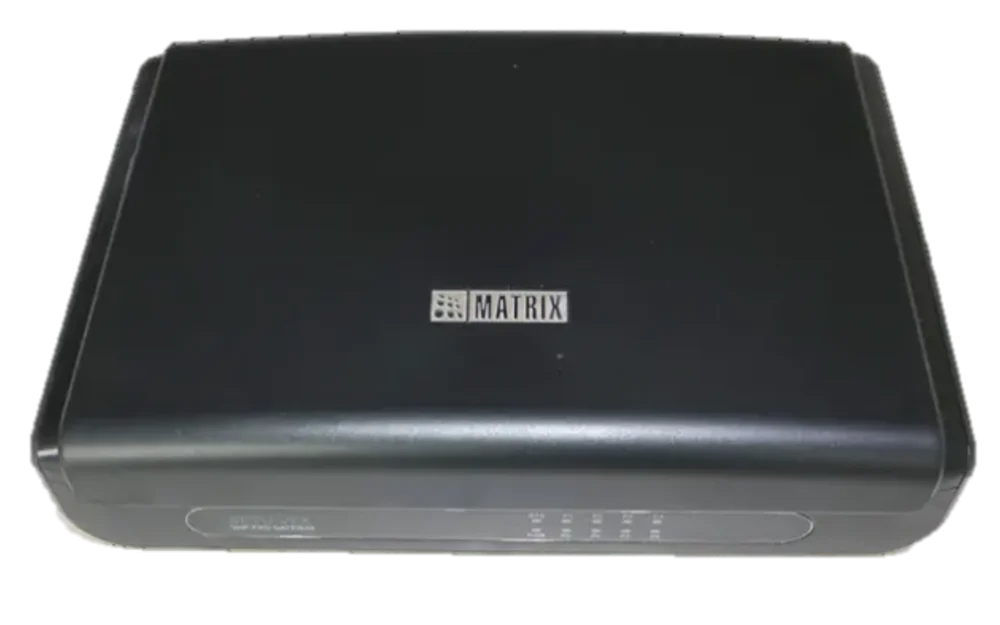

SETU VFX880 is a high-density VoIP FXO gateway designed to connect traditional PSTN lines with modern SIP-based IP communication systems. It enables seamless interoperability between 8 analog CO (FXO) trunk ports and VoIP networks, allowing businesses to efficiently route calls between PSTN and IP-PBX environments.

This gateway is ideal for enterprises, SMEs, and call centers that require reliable PSTN connectivity while migrating to or operating hybrid VoIP systems.

Key Features

8 FXO ports for PSTN (CO line) connectivity
SIP-based VoIP support (SIP V2, SDP, RTP)
Seamless PSTN to IP call routing
Supports up to 16 VoIP channels
Carrier-grade voice processing
Web-based configuration and management
Reliable PSTN fallback for VoIP systems
Supports DTMF signaling
Compact rack-friendly design
Suitable for hybrid telephony deployments

Technical Specifications

Specification	Details
Product Name	SETU VFX880
Product Type	VoIP FXO Gateway
Brand	Matrix Comsec
FXO Ports	8 Analog PSTN (CO) Lines
VoIP Channels	16
SIP Accounts	Up to 32
VoIP Protocols	SIP V2, SDP, RTP (RFC 2833)
Network Interface	1 × 10/100 Base-T Ethernet (RJ45)
Voice Codecs	G.711, G.729A, G.723.1
Echo Cancellation	G.168 support
Dialing Support	DTMF
Power Supply	12V DC (Adapter based)
Management	Web-based configuration
Function	PSTN ↔ VoIP Gateway
