Matrix Comsec

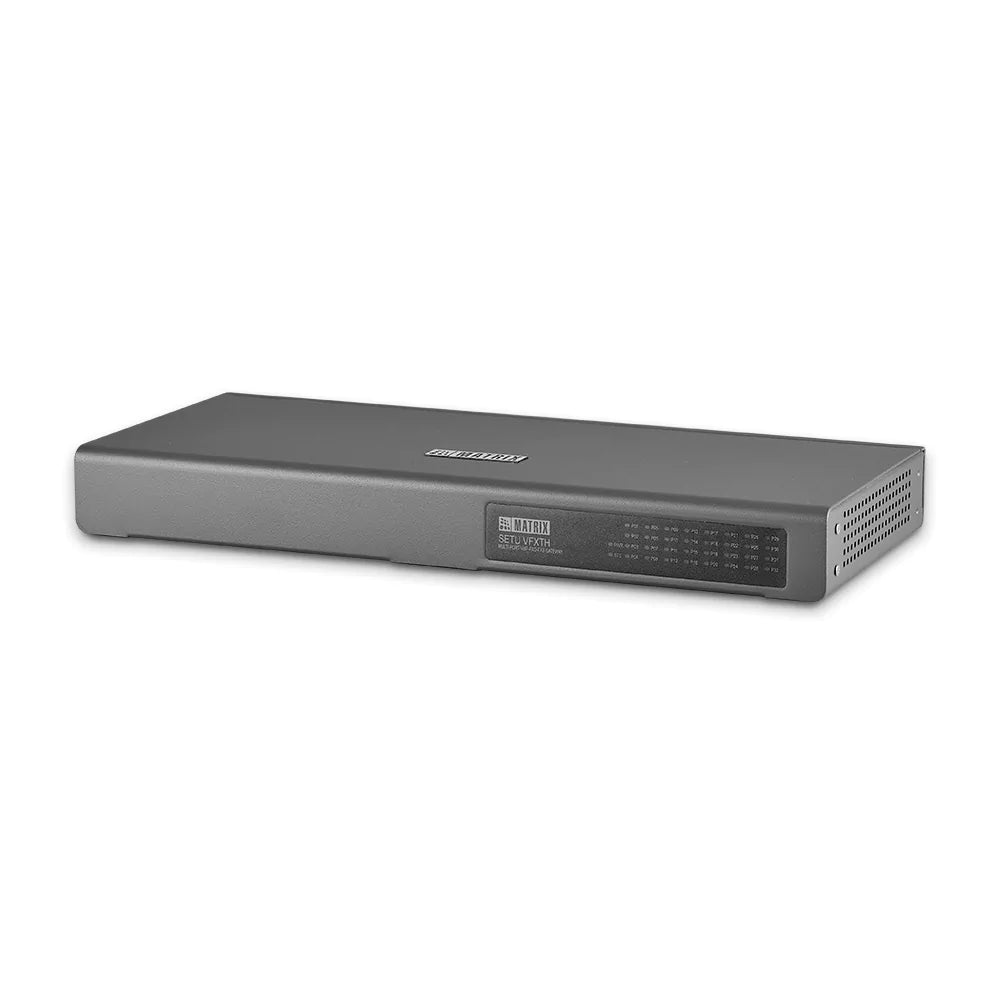

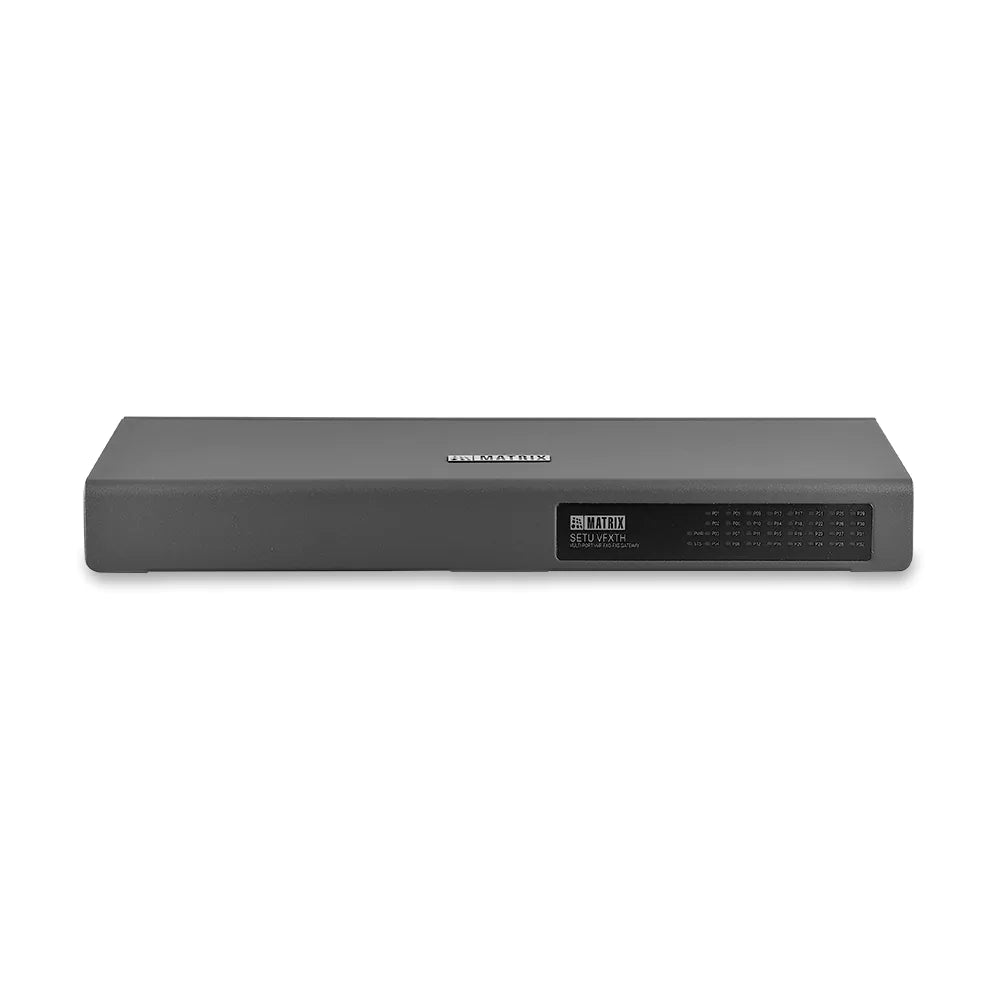

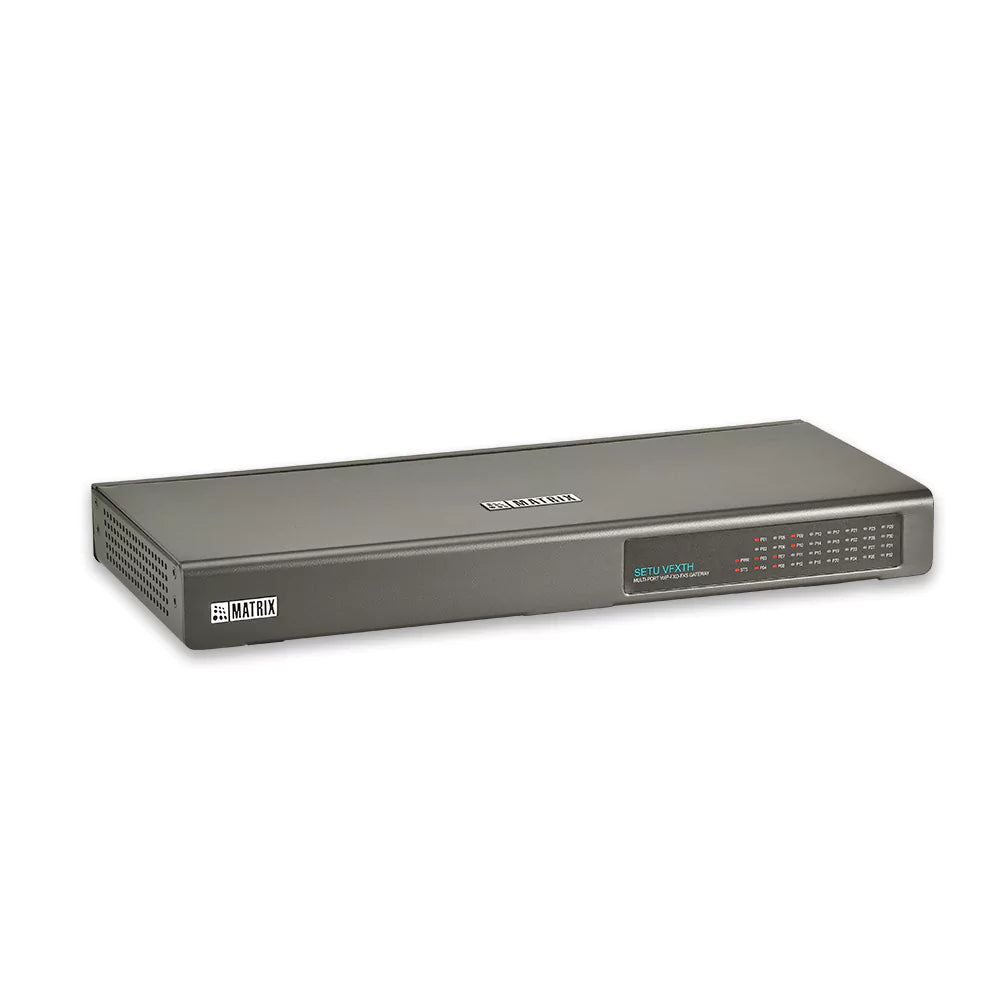

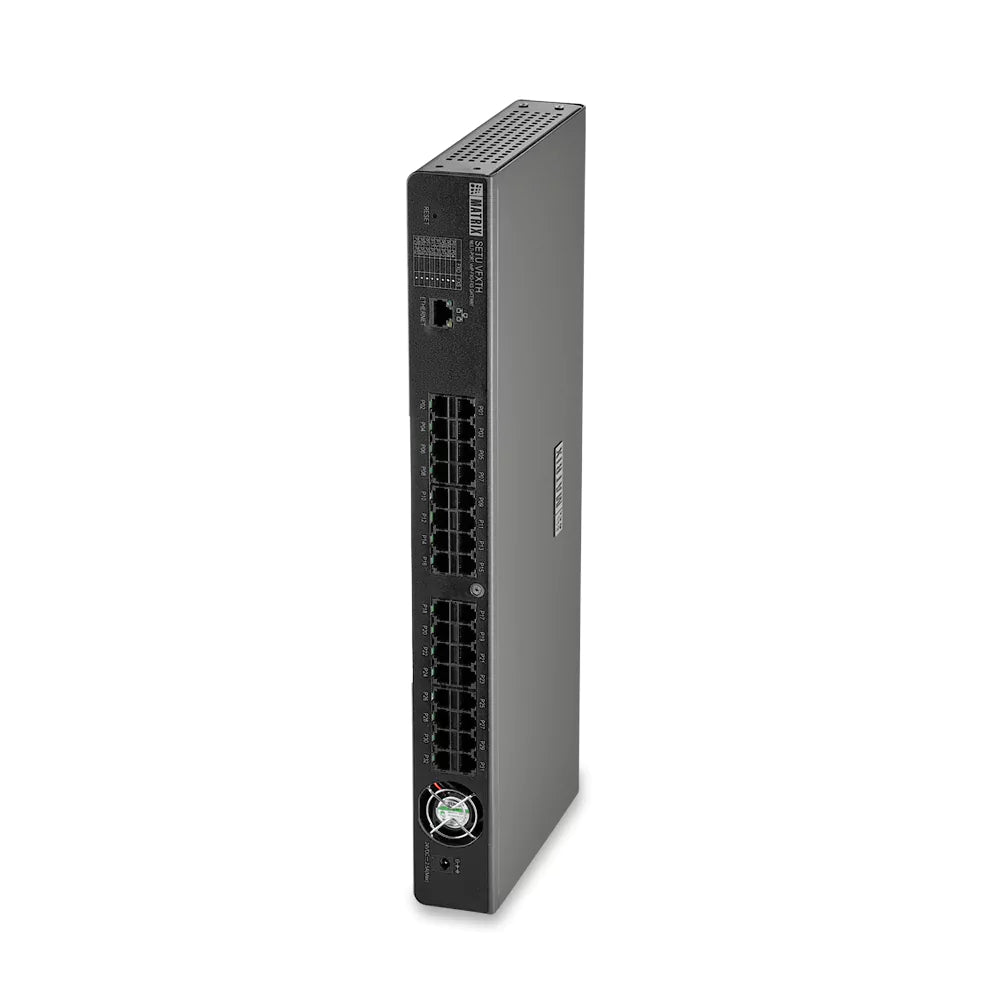

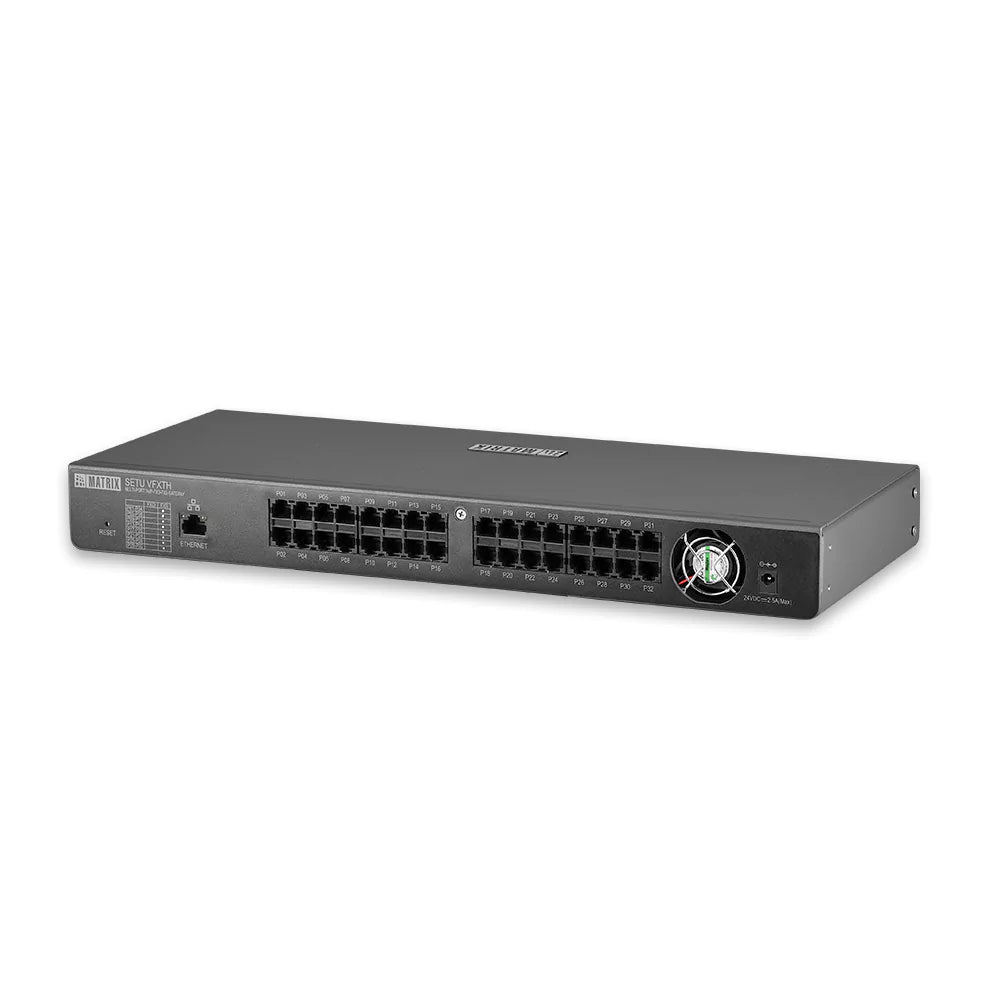

SETU VFXTH0024

Rs. 41,367.04

~~Rs. 45,503.74~~ Rs. 41,367.04

Sale Sold out

Features of SETU VFXTH0024

VoIP–FXO–FXS Gateway with 24 FXS, 24 VoIP Channels

VoIP Protocol	SIP (32 SIP Accounts)
VoIP Channels	24
FXO Ports	0
FXS Ports	24
Ethernet Ports	1
Power Supply	24V DC (Adaptor Based)

Download PDF

Product Description

SETU VFXTH0024 is a high-density VoIP FXS gateway designed to integrate traditional analog telephones with modern SIP-based IP communication systems. It enables seamless connectivity between 24 FXS analog extensions and VoIP networks, making it ideal for enterprises upgrading from legacy PBX to IP telephony.

This gateway supports scalable deployment for SMEs, call centers, and multi-location businesses requiring reliable analog-to-IP conversion with centralized management.

Key Features

24 FXS ports for analog extensions
24 VoIP channels
SIP-based communication support (SIP V2, SDP, RTP)
Seamless analog to IP integration
Supports DTMF and Pulse dialing
Carrier-grade voice processing
Web-based configuration and management
Supports fax and legacy device connectivity
Ideal for multi-site communication environments
Reliable enterprise-grade performance

Technical Specifications

Specification	Details
Product Name	SETU VFXTH0024
Product Type	VoIP FXS Gateway
Brand	Matrix Comsec
VoIP Channels	24
SIP Accounts	Up to 32
FXS Ports	24 Analog Extensions
FXO Ports	0
VoIP Protocols	SIP V2, SDP, RTP (RFC 2833)
Network Interface	1 × 10/100 Base-T Ethernet (RJ45)
Dialing Support	DTMF & Pulse Dialing
Echo Cancellation	G.168 with up to 128 ms tail length
Fax Support	T.38 and Pass-through
Power Supply	24V DC (Adapter based)
Management	Web-based configuration
Function	VoIP ↔ Analog Extension Gateway
