eSSL SH-GT16DC DC Shutter Opener – 250kg Automatic Door Motor

📞 Call 9315441078 for Best Price

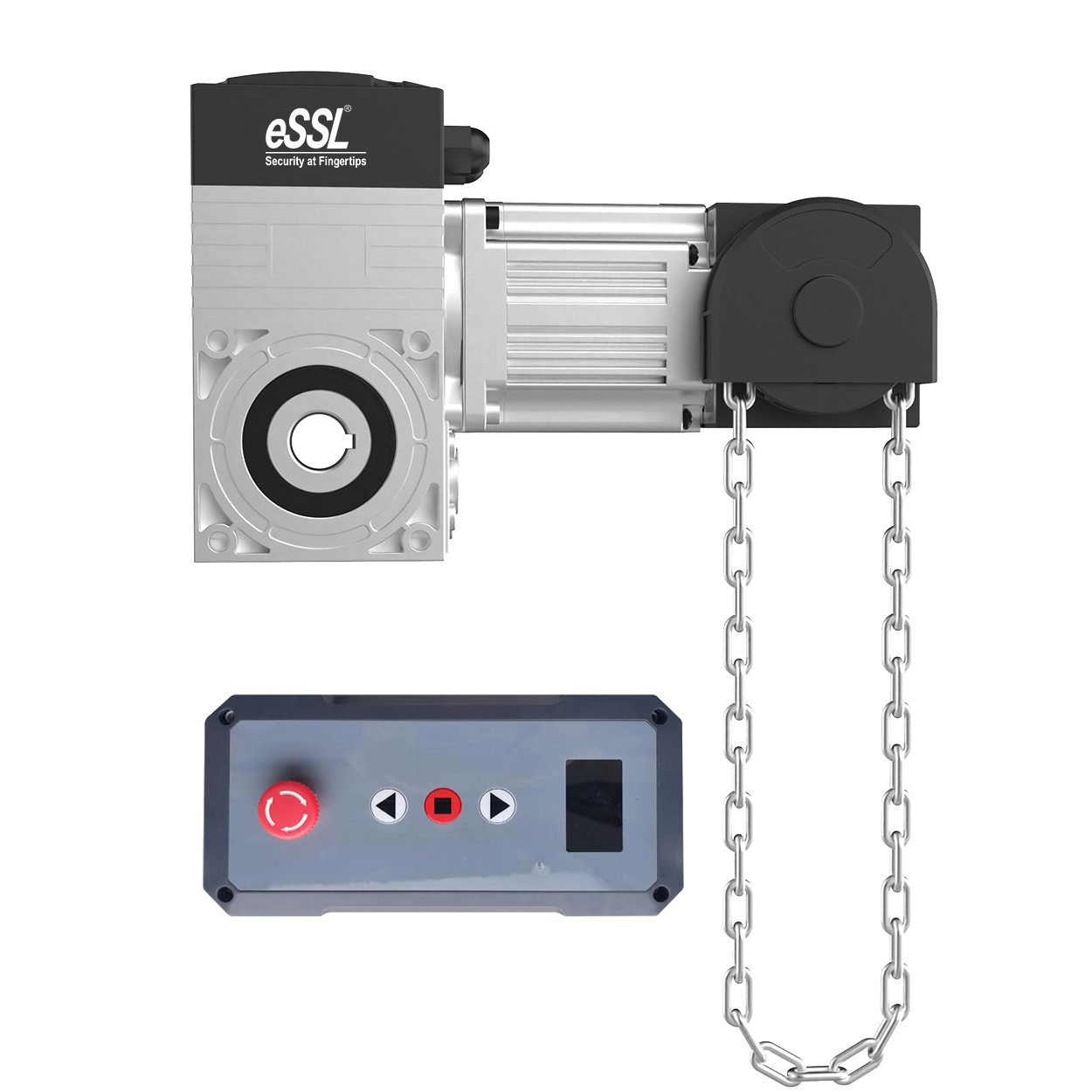

eSSL SH-GT16DC Garage Door Opener

The eSSL SH-GT16DC is a premium DC motor garage door opener designed for sectional and overhead garage doors in residential and commercial applications. Equipped with a high-performance 24V DC motor, intelligent control system, soft start and soft stop technology, and obstacle detection, the SH-GT16DC provides safe, smooth, and reliable door automation with low-noise operation.

24V DC Motor Technology

High-efficiency DC motor ensures smooth, quiet, and reliable operation with low power consumption.

Soft Start & Soft Stop

Gradual acceleration and deceleration reduce mechanical wear and extend the service life of the opener.

Obstacle Detection

Automatically reverses the door when an obstacle is detected, improving operational safety.

Battery Backup Support

Allows the garage door to operate during power failures when connected to an optional backup battery.

Key Features

24V DC Motor Technology.
Quiet and Smooth Operation.
Soft Start and Soft Stop Function.
Automatic Close Function.
Obstacle Detection with Auto Reverse.
LED Courtesy Light.
Manual Release During Power Failure.
Remote Control Operation.
Supports Battery Backup System.
Intelligent Control Board.
Low Power Consumption.
Easy Installation and Maintenance.

Technical Specifications

Specification	Details
Model	SH-GT16DC
Product Type	Garage Door Opener
Motor Type	24V DC Motor
Input Power Supply	220V AC ±10%, 50/60Hz
Motor Voltage	24V DC
Drive Type	Chain / Belt Drive
Opening Speed	Approx. 120-180 mm/s
Maximum Door Area	16 m²
Maximum Door Height	3.5 m
Protection Class	IP20
Operating Temperature	-20°C to +50°C
Remote Frequency	433.92 MHz
Courtesy Light	LED Light Included
Safety Features	Obstacle Detection & Automatic Reverse
Emergency Operation	Manual Release Mechanism
