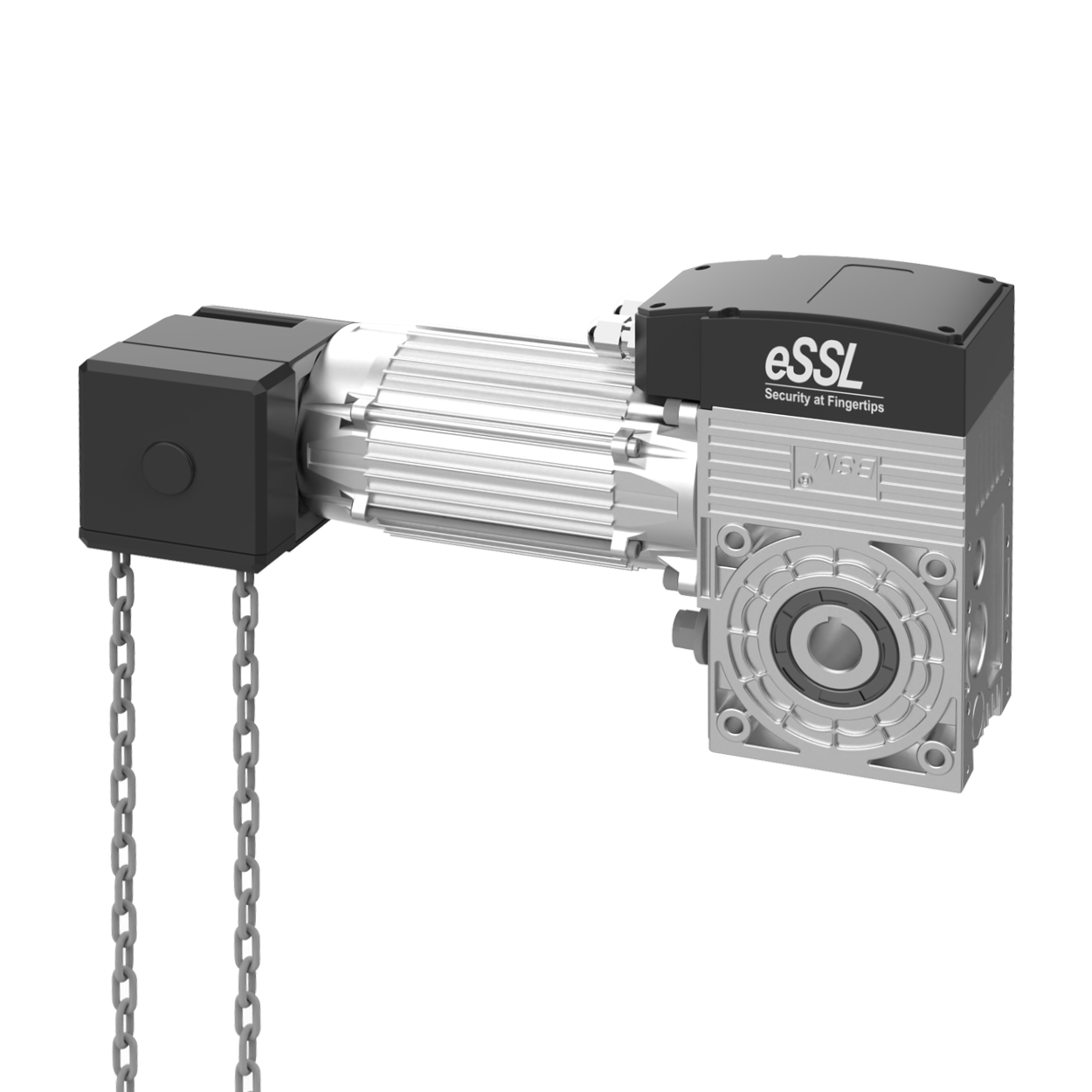

eSSL SH-GT5.75-ZM Garage Door Opener – 575kg Automatic Door Motor

📞 Call 9315441078 for Best Price

eSSL SH-GT5.75-ZM Industrial Shutter & Garage Door Opener

The eSSL SH-GT5.75-ZM is a heavy-duty industrial shutter and garage door opener engineered for rolling shutters and industrial doors in warehouses, factories, commercial complexes, and industrial facilities. Equipped with a powerful 550W motor, high 75N.m output torque, and robust thermal protection, the SH-GT5.75-ZM ensures reliable, safe, and efficient operation even in demanding environments.

Powerful 550W Motor

High-performance AC motor delivers reliable lifting performance for heavy-duty industrial shutters and garage doors.

75N.m High Output Torque

Provides strong lifting force for smooth operation of large and heavy rolling shutters.

Advanced Thermal Protection

Built-in 130°C thermal protection safeguards the motor against overheating and increases service life.

Heavy-Duty Industrial Design

Designed for intensive industrial applications with reliable performance and low maintenance requirements.

Key Features

Industrial Door Operator for Rolling Shutters and Garage Doors.
Powerful 550W AC Motor.
Maximum Output Torque of 75N.m.
Output Speed of 23 RPM.
Hoisting Height Greater Than 5 Meters.
Built-in 130°C Thermal Protection.
Heavy-Duty Gear Reduction Mechanism.
Stable and Low Noise Operation.
Emergency Manual Operation Support.
Compatible with External Control Systems.
Durable Construction for Industrial Applications.
Easy Installation and Maintenance.

Technical Specifications

Specification	Details
Model	SH-GT5.75-ZM
Product Type	Industrial Shutter & Garage Door Opener
Power Supply	220V ±10%, 60Hz
Motor Power	550W
Insulation Class	Class B
Thermal Protection	130°C
Working Temperature	-30°C to +50°C
Motor Speed	1400 RPM
Output Speed	23 RPM
Maximum Output Torque	75N.m
Hoisting Height	> 5 m
Output Shaft Diameter	Φ25.4 mm / Φ31.8 mm
Application Type	Industrial Rolling Shutters & Garage Doors
