SSR solid state relay DC-AC 10A with ALUMINIUM Plate INPUT 4-32VDC OUTPUT 24-480VAC (47-63 Hz)

SSR Solid State Relay DC-AC 10A with Aluminium Heat Sink Plate | Input 4–32VDC, Output 24–480VAC

The SSR Solid State Relay DC-AC 10A is a high-performance electronic switching device designed for reliable and silent operation in industrial automation, temperature control, and power management applications. Featuring a robust aluminium heat sink plate for efficient heat dissipation, this relay accepts a low-voltage DC control signal and switches AC loads up to 10A with fast response and long service life.

Key Features

• 10A Load Capacity: Suitable for switching AC loads up to 10 amperes.
• Wide Input Voltage Range: Supports control signals from 4–32VDC.
• AC Output Voltage: Compatible with 24–480VAC, 47–63Hz loads.
• Built-In Aluminium Plate: Provides efficient heat dissipation and improves relay lifespan.
• Silent Operation: No moving parts for noise-free switching.
• High Reliability: Offers excellent resistance to vibration and mechanical wear.
• Fast Switching Speed: Delivers rapid response for precise control applications.
• Long Service Life: Designed for continuous industrial operation.

Applications

Industrial Automation • Temperature Controllers • Heating Elements • PLC Systems • Packaging Machines • CNC Equipment • 3D Printers • Motor Control Systems • Power Distribution Panels

Technical Specifications

Frequently Asked Questions

What type of relay is this?

This is a DC-input, AC-output solid state relay (SSR) rated for 10A load current.

What input voltage is required?

The relay accepts control signals ranging from 4VDC to 32VDC.

What AC voltage can it switch?

It supports AC loads from 24VAC to 480VAC at frequencies between 47Hz and 63Hz.

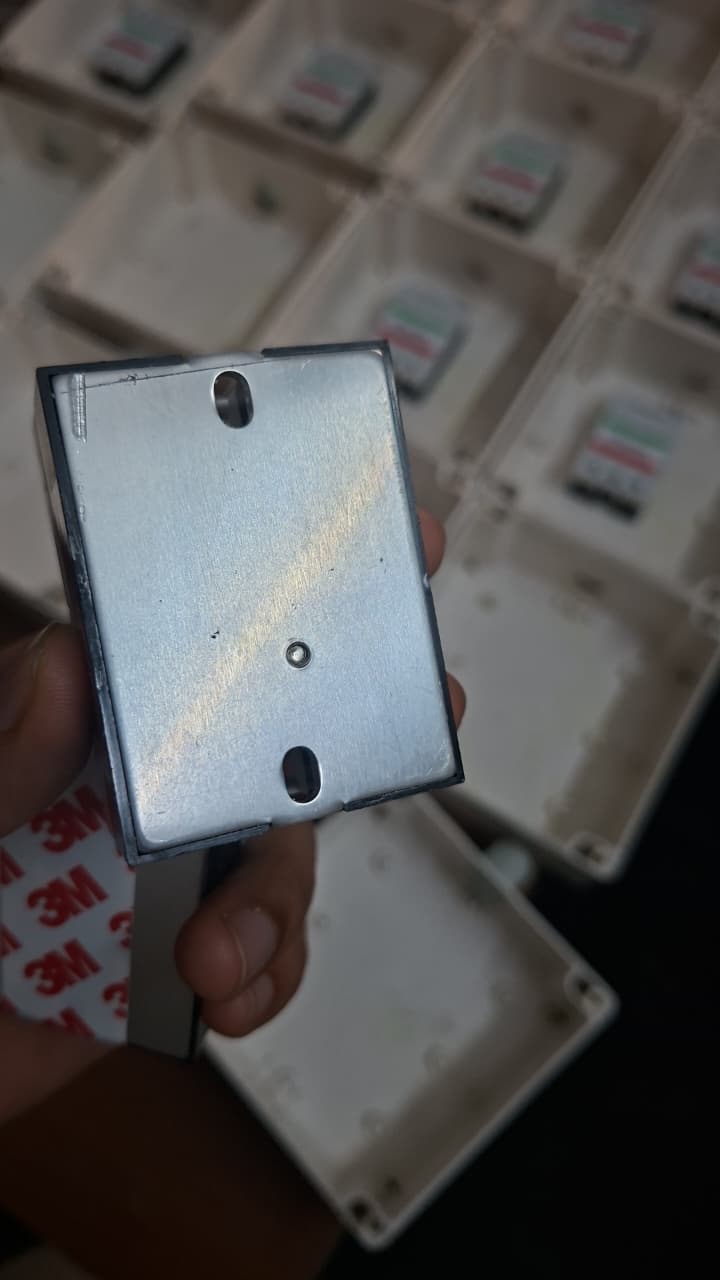

Why is an aluminium plate included?

The aluminium plate acts as a heat sink, improving heat dissipation and ensuring stable operation under continuous loads.
