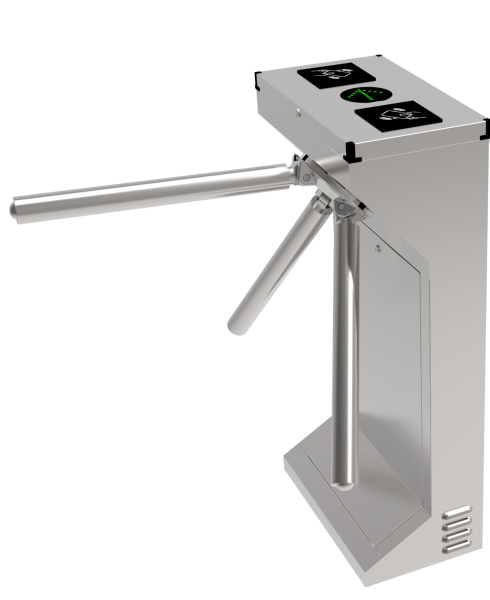

BioMax TNS-108 Tripod Turnstile Gate
The BioMax TNS-108 is a premium tripod turnstile designed for secure pedestrian access control in offices, factories, commercial buildings, metro stations, educational institutions, and other high-traffic facilities. Constructed with durable AISI304/AISI316 stainless steel, the TNS-108 delivers reliable performance, long service life, and excellent resistance to corrosion and vandalism.
Supporting RFID, ID cards, barcode, and magnetic card authentication, the TNS-108 integrates easily with modern access control and attendance systems. It offers multiple operating modes, emergency arm drop functionality, and optional semi-automatic or fully automatic operation, making it a dependable solution for controlled entry and exit management.
Key Features
Multiple Card Compatibility
Supports RFID IC cards, ID cards, barcode cards, and magnetic cards for access control, attendance, and ticketing applications.
Semi-Automatic & Full-Automatic Operation
Available in semi-automatic, fully automatic, or mechanical modes to suit different installation requirements.
Bi-Directional Access Control
Configurable for single-direction, bi-directional, always-open, or always-locked operation.
Emergency Arm Drop Function
Barrier arms automatically drop during power failure or emergency situations for safe and quick evacuation.
Remote Override Control
Supports wired or wireless remote override for emergency operation and manual access management.
Heavy-Duty Stainless Steel Construction
Manufactured from high-quality AISI304 or optional AISI316 stainless steel for superior durability and corrosion resistance.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | BioMax |
| Model | TNS-108 |
| Product Type | Tripod Turnstile Gate |
| Passage Width | ≥ 550 mm |
| Throughput Rate | 35 Persons/Minute |
| Power Supply | 100–240V AC, 50/60 Hz |
| Operating Voltage | 24V DC |
| Maximum Power Consumption | 35 W |
| Protection Rating | IP44 |
| Operating Temperature | -25°C to 70°C |
| Housing Material | AISI304 Stainless Steel (Optional AISI316) |
| Barrier Arm Material | Stainless Steel |
| Dimensions (Excluding Arms) | 480 × 280 × 960 mm |
| Net Weight (Including Arms) | 42 kg |
| Supported Credentials | RFID IC Card, ID Card, Barcode Card, Magnetic Card |
| Operating Modes | Single Direction, Bi-Directional, Free Passage, Always Locked/Unlocked |
Applications
- Corporate Offices
- Factories & Industrial Plants
- Commercial Buildings
- Educational Institutions
- Metro & Railway Stations
- Airports
- Government Buildings
- Sports Stadiums & Event Venues
Why Choose BioMax TNS-108?
The BioMax TNS-108 provides secure, efficient, and intelligent pedestrian access management with robust stainless steel construction, multiple authentication options, flexible operating modes, and emergency safety features. Its reliable performance, high throughput capacity, and compatibility with modern access control systems make it an ideal solution for demanding commercial and industrial environments.
