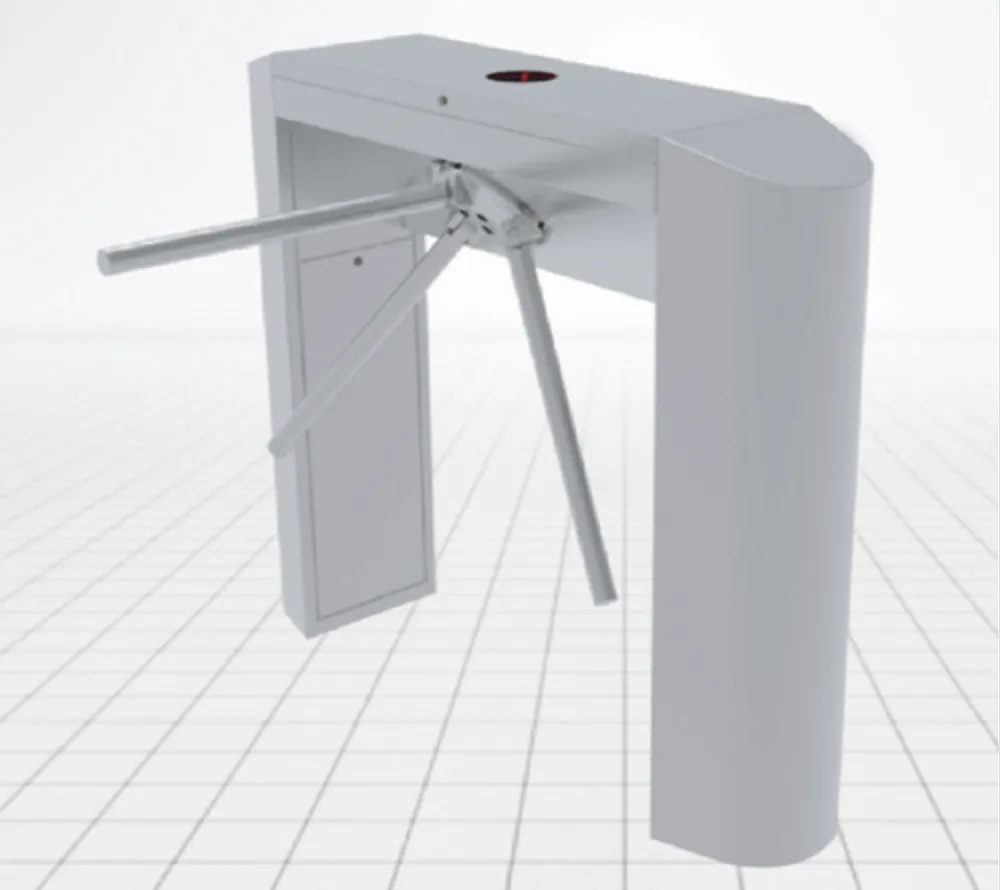

BioMax TNS-243 Tripod Turnstile
The BioMax TNS-243 is a robust and reliable tripod turnstile designed for secure pedestrian access control in offices, factories, commercial buildings, educational institutions, transportation hubs, and high-security facilities. Built with premium AISI304 or optional AISI316 stainless steel, it combines mechanical strength with dependable electronic operation for long-lasting performance.
Supporting RFID IC cards, ID cards, barcode cards, and magnetic cards, the TNS-243 integrates seamlessly with access control, attendance, and ticketing systems. Multiple operating modes, emergency arm drop functionality, and optional semi-automatic or fully automatic operation make it an ideal solution for managing authorized entry and exit efficiently.
Key Features
Multiple Authentication Support
Compatible with RFID IC cards, ID cards, barcode cards, and magnetic cards for access control, attendance management, and ticket validation.
Semi-Automatic & Full-Automatic Operation
Available in semi-automatic, fully automatic, and mechanical operating modes to meet different security requirements.
Flexible Access Modes
Supports single-direction, bi-directional, free passage, and always locked or unlocked operating configurations.
Emergency Safety Function
Barrier arms automatically drop during power failure or emergency situations, allowing fast and safe evacuation.
LED Direction Indicators
Built-in direction indicators clearly display the passage status and guide users through the correct entry direction.
Heavy-Duty Stainless Steel Construction
Manufactured using corrosion-resistant AISI304 stainless steel with optional AISI316 housing for demanding indoor and outdoor installations.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | BioMax |
| Model | TNS-243 |
| Product Type | Tripod Turnstile Gate |
| Passage Width | ≥ 550 mm |
| Throughput Rate | 35 Persons/Minute |
| Power Supply | 100–240V AC, 50/60 Hz |
| Operating Voltage | 24V DC |
| Maximum Power Consumption | 35 W |
| Frequency | 50–60 Hz |
| Protection Rating | IP44 |
| Operating Temperature | -25°C to 70°C |
| Housing Material | AISI304 Stainless Steel (Optional AISI316) |
| Barrier Arm Material | Stainless Steel |
| Dimensions (Excluding Arms) | 1200 × 280 × 980 mm |
| Net Weight (Including Arms) | 35 kg |
| Supported Credentials | RFID IC Card, ID Card, Barcode Card, Magnetic Card |
| Operating Modes | Single Direction, Bi-Directional, Free Passage, Always Locked / Always Free |
Applications
- Corporate Offices
- Industrial Plants & Factories
- Educational Institutions
- Commercial Buildings
- Metro & Railway Stations
- Airports & Transport Terminals
- Government Facilities
- Sports Stadiums & Event Venues
Why Choose BioMax TNS-243?
The BioMax TNS-243 delivers reliable pedestrian access management through its heavy-duty stainless steel construction, multiple credential support, intelligent operating modes, and advanced safety features. With a throughput of up to 35 persons per minute, emergency arm-drop functionality, and seamless integration with access control systems, it is an ideal solution for secure, high-traffic entry and exit control.
