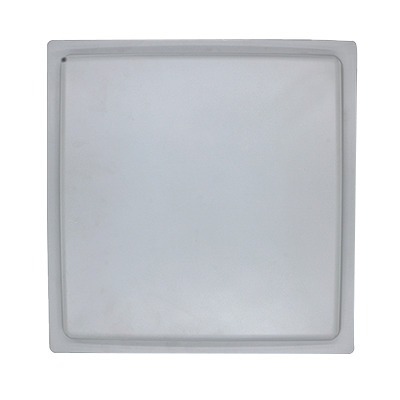

eSSL U10 RFID Card Reader – 860-960MHz UHF Access Control
The eSSL U10 RFID Card Reader is a high-performance UHF integrated RFID reader designed for long-range identification and hands-free access control. Operating in the 860-960MHz frequency band, the U10 provides fast, accurate, and reliable tag reading, making it ideal for vehicle access control, parking management, logistics, and industrial automation applications.
Featuring an integrated high-gain antenna, adjustable RF power, and multiple communication interfaces, the U10 offers seamless integration with access control panels, boom barriers, parking management systems, and third-party software platforms. Its rugged design and dependable performance make it suitable for demanding commercial and industrial environments.
Why Choose the eSSL U10?
- Operates in the 860-960MHz UHF frequency range
- Supports ISO18000-6C and EPC Gen2 protocols
- Long-range reading distance of up to 10–15 meters
- Adjustable RF output power from 0 to 31 dBm
- High sensitivity of -80 dBm
- Integrated high-gain antenna design
- Ethernet, RS232, RS485, and Wiegand interfaces
- Relay output for boom barrier and gate automation
- Rugged construction for indoor and outdoor installations
- Fast and reliable tag identification with minimal maintenance
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | UHF Integrated RFID Reader |
| Model | eSSL U10 |
| Frequency | 860-960MHz |
| Protocol | ISO18000-6C, EPC Gen2 |
| Read Range | Up to 10–15 meters |
| RF Power | 0–31 dBm Adjustable |
| Sensitivity | -80 dBm |
| Processor | ARM Cortex-M3 100MHz CPU |
| Memory | 16KB Tag Data Memory, 32KB Non-Volatile Storage |
| Communication Interface | 100M Ethernet |
| Additional Interfaces | RS232, RS485 |
| Wiegand Support | Wiegand 26/34 |
| Input/Output | 1 Input and 1 Output (TTL) |
| Relay Output | 1 Relay |
| Power Supply | DC +9V to +15V |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 440 × 440 × 68.6 mm |
Key Features
- Long-range UHF RFID reading
- Integrated high-gain antenna
- Adjustable transmission power
- Fast multi-tag identification
- Multiple communication interfaces
- Wiegand compatibility with access control systems
- Relay output for gate and barrier control
- High stability and low power consumption
- Easy installation and maintenance
- Suitable for continuous operation in commercial environments
Applications
The eSSL U10 RFID Reader is widely used for:
Vehicle Access Control
Automate entry and exit of authorized vehicles in residential societies, commercial complexes, and industrial facilities.
Parking Management Systems
Enable hands-free parking access and integrate with boom barriers and parking software.
Logistics and Warehousing
Track pallets, containers, and goods movement efficiently with long-range RFID technology.
Industrial Automation
Monitor equipment and assets across manufacturing plants and warehouses.
Campus and Corporate Security
Manage vehicle access for offices, educational institutions, and government facilities.
Asset Tracking
Improve inventory visibility and streamline operations using RFID-based identification.
Compatible Systems
The eSSL U10 UHF Reader integrates with:
- Access Control Panels
- Boom Barriers
- Parking Management Systems
- Vehicle Management Software
- ERP and Warehouse Management Platforms
- Security and Automation Systems
- Third-Party Controllers and Applications
Ideal For
- Residential Societies
- Corporate Offices
- Industrial Facilities
- Warehouses and Logistics Centers
- Manufacturing Plants
- Educational Institutions
- Hospitals
- Commercial Buildings
- Government and Defense Installations
