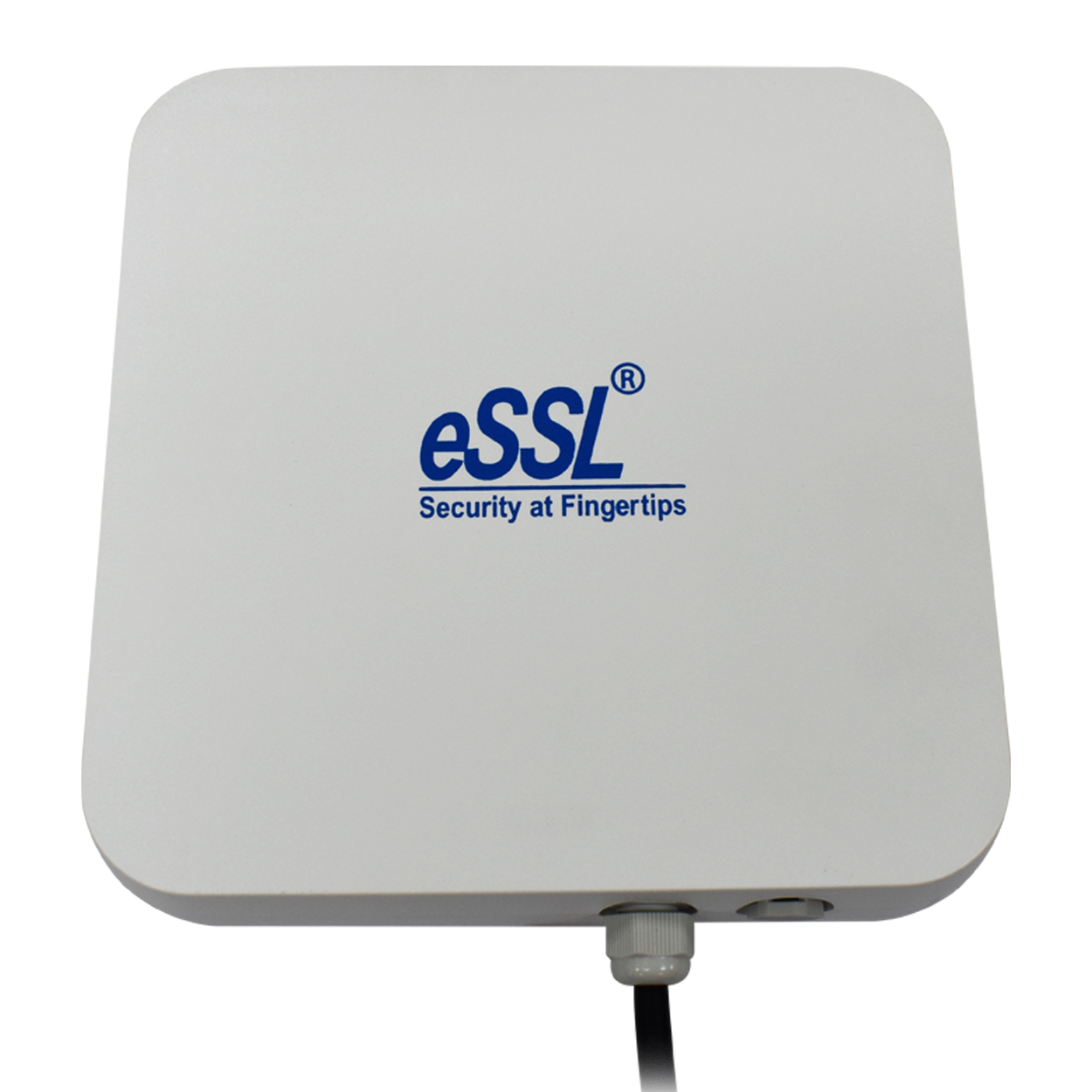

eSSL U14 UHF RFID Card Reader – 860-960MHz UHF Access Control
The eSSL U14 UHF RFID Card Reader is a high-performance long-range UHF integrated RFID reader designed for vehicle access control, parking management, logistics, asset tracking, and industrial automation applications. Operating in the 860-960MHz frequency band, the U14 delivers fast and accurate identification of UHF tags and cards while providing reliable performance in demanding indoor and outdoor environments.
Featuring an integrated 8dBi circularly polarized antenna, adjustable RF power, and multiple communication interfaces, the U14 seamlessly integrates with access control panels, boom barriers, parking management software, and third-party systems.
Why Choose the eSSL U14?
- Operates in the 860-960MHz UHF frequency range
- Supports EPC Global Class 1 Gen 2 (ISO/IEC 18000-6C) protocol
- Long-range reading distance of up to 12 meters
- Integrated 8dBi circularly polarized antenna
- Adjustable output power from 5 dBm to 33 dBm
- High receiver sensitivity of -80 dBm
- Multiple communication interfaces for flexible integration
- Supports Wiegand 26, 34, and 66 formats
- IP66/IP67 weatherproof protection for outdoor use
- Reliable performance for continuous operation in harsh environments
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | UHF Integrated RFID Reader |
| Model | eSSL U14 |
| Frequency Range | 860-960MHz (Configurable) |
| Protocol | EPC Global Class 1 Gen 2 (ISO/IEC 18000-6C) |
| Antenna | Integrated 8dBi Circular Polarized Antenna |
| Read Distance | 0–12 meters |
| Output Power | 5 dBm – 33 dBm (Adjustable) |
| Receiver Sensitivity | -80 dBm @ 10% BER |
| Peak Tag Reading Rate | High-Speed Multi-Tag Reading |
| Ethernet Interface | RJ45 10/100M |
| Serial Communication | RS232, RS485 |
| Wiegand Output | Wiegand 26 / 34 / 66 |
| Inputs | 2 GPI (12V–24V) |
| Outputs | 2 Relay Outputs |
| Baud Rate | Up to 460,800 bps |
| Protection Rating | IP66 / IP67 |
| Operating Temperature | Industrial Grade |
| Dimensions | 220 × 220 × 40 mm |
Key Features
- Long-range UHF RFID identification
- High-speed tag reading capability
- Built-in 8dBi circularly polarized antenna
- Adjustable transmission power
- Ethernet, RS232, and RS485 communication
- Wiegand compatibility with access control systems
- Relay outputs for boom barrier integration
- Dustproof and waterproof IP66/IP67 enclosure
- Compact and rugged design
- Suitable for indoor and outdoor deployments
Applications
Vehicle Access Control
Enable automatic entry and exit of authorized vehicles in residential societies, offices, industrial facilities, and campuses.
Parking Management Systems
Integrate with boom barriers and parking software for hands-free vehicle access.
Logistics and Warehouse Automation
Track pallets, goods, and inventory efficiently using long-range RFID technology.
Asset Tracking
Monitor valuable equipment and assets across industrial and commercial facilities.
Campus and Corporate Security
Manage vehicle movement and secure access in offices, educational institutions, and government facilities.
Industrial Automation
Improve operational efficiency through RFID-based identification and monitoring.
Compatible Tags
The eSSL U14 UHF Reader supports:
- UHF1-Tag1
- UHF1-Tag3
- UHF1-Tag4
- UHF1-Tag5
- EPC Gen2 UHF Cards
- ISO18000-6C Compatible Tags and Labels
Ideal For
- Residential Societies
- Corporate Offices
- Industrial Facilities
- Warehouses and Distribution Centers
- Manufacturing Plants
- Educational Institutions
- Hospitals
- Commercial Buildings
- Parking Management Companies
