eSSL Security

eSSL U5 RFID Card Reader – 860-960MHz UHF Access Control

Rs. 0.00

Sale Sold out

eSSL U5 RFID Card Reader – 860-960MHz UHF Access Control

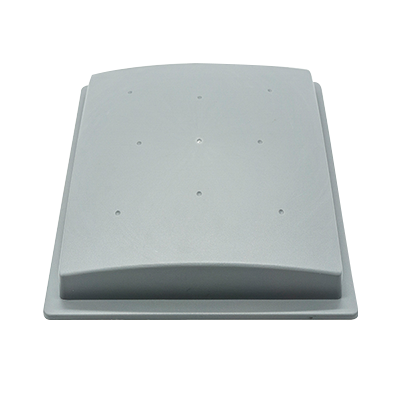

The eSSL U5 RFID Card Reader is a high-performance UHF integrated RFID reader designed for medium-range identification and access control applications. Operating in the 860-960MHz frequency band, it provides fast and reliable long-distance reading for vehicle access management, parking systems, logistics, asset tracking, and industrial automation.

Featuring an integrated high-gain antenna, multiple communication interfaces, and rugged construction, the U5 offers seamless integration with access control systems, boom barriers, and third-party software platforms. Its dependable performance makes it an ideal solution for commercial, industrial, and institutional applications.

Why Choose the eSSL U5?

Operates in the 860-960MHz UHF frequency range
Supports ISO18000-6C / EPC Gen2 protocol
Adjustable RF power from 0 to 31 dBm
High sensitivity of -80 dBm
Reading distance up to 6 meters and above with a 9dBi antenna
Multiple interfaces including Ethernet, RS232, RS485, and Wiegand
Built-in relay output for access control integration
Fast and reliable tag identification
Suitable for indoor and outdoor installations
Easy integration with parking and vehicle management systems

Technical Specifications

Specification	Details
Product Type	UHF Integrated RFID Reader
Model	eSSL U5
Frequency	860-960MHz
Protocol	ISO18000-6C, EPC Global Gen2
RF Power	0-31 dBm Adjustable
Sensitivity	-80 dBm
Processor	ARM Cortex-M3 100MHz CPU
Memory	16KB Tag Data Memory, 32KB Non-Volatile Storage
Reading Distance	More than 6 meters (with 9dBi antenna)
Communication Interface	100M Ethernet
Additional Interfaces	RS232, RS485
Wiegand Output	Wiegand 26/34
Input/Output	1 Input, 1 Output (TTL)
Relay Output	1 Relay
Power Supply	DC +9V to +15V
Operating Temperature	-20°C to +60°C
Dimensions	280 × 280 × 68.5 mm
