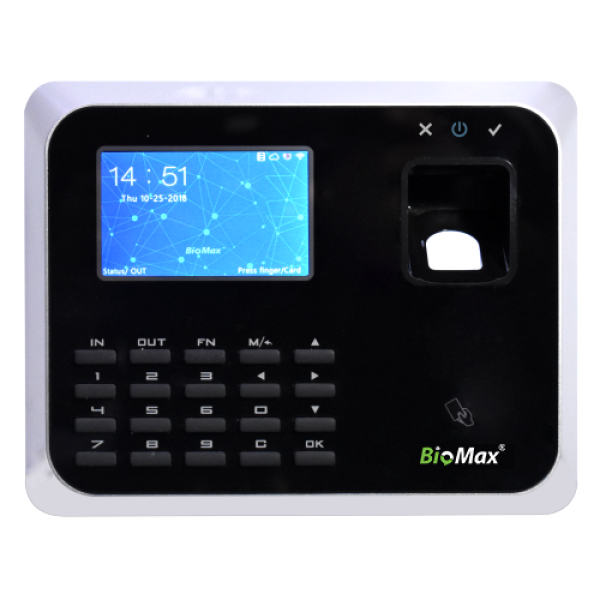

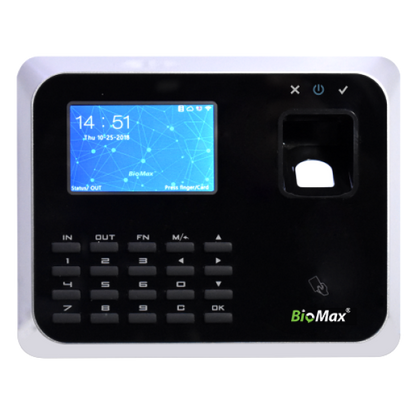

Biomax V-AX14 Fingerprint Attendance & Access Control Terminal – 3,000 Users, Wi-Fi, RS485, Door Sensor

The Biomax V-AX14 is a fingerprint and card terminal for time attendance and access control, with Wi-Fi, RS232/485, Wiegand and a door sensor input.

Key specifications

Who should purchase it?

Offices and factories with up to 3,000 staff that want wireless attendance plus door control.

How many users can it support?

3,000 fingerprints and 3,000 cards, with storage for 1,00,000 logs.

Which biometric methods does it support?

Fingerprint (FAR 0.00001%, FRR 0.001%, 22 x 18 mm scan area) and card; Mifare card is optional.

Does it support TCP/IP, USB, Wi-Fi or cloud connectivity?

Wi-Fi, TCP/IP, USB host & client and RS232/485, with push data to server software.

Does it support an attendance application?

Attendance application support for this model is confirmed on your quotation – our team will share the current manufacturer details.

Which software is compatible?

Biomax lists push data support for server-based attendance software. Biomax's own TimeSheet attendance software runs as web or cloud software, and AmpleTrails sets up the matching software version for you. AmpleTrails can integrate attendance data with your payroll or HRMS.

Does it support access control?

Yes. One relay, Wiegand input/output and door sensor input, with 6-digit work codes and 16 self-defined status keys.

What are the installation requirements?

Wall mounting with a 12V DC / 2A supply. Operating temperature -20°C to 50°C; size 168 x 130 x 37 mm. AmpleTrails installs and configures this device anywhere in India: mounting, network setup, software installation, employee enrolment and admin training. See installation services.

What is included in the box?

The box content list for this model is confirmed on your quotation – our team will share the current manufacturer details.

What is the warranty?

Supplied with the Biomax manufacturer warranty through AmpleTrails, an authorised Biomax partner. The exact warranty term is stated on your invoice, and our support team handles warranty claims for you.

What alternatives are available?

• Biomax V-AX11 – 10,000-user model with a 3.2" display
• Biomax V-AX18 – slim door-frame model with tamper alarm
• Biomax V-TA45 – attendance-focused model on LAN
• Browse all biometric attendance machines or the full Biomax range.
