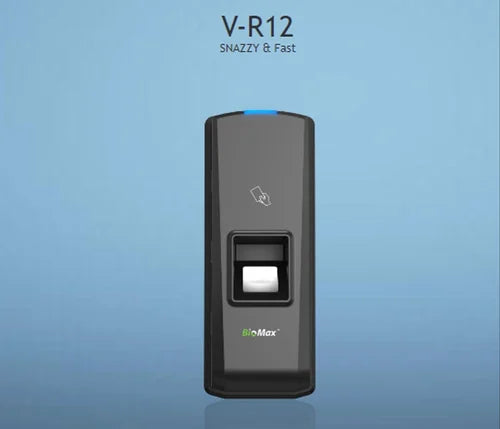

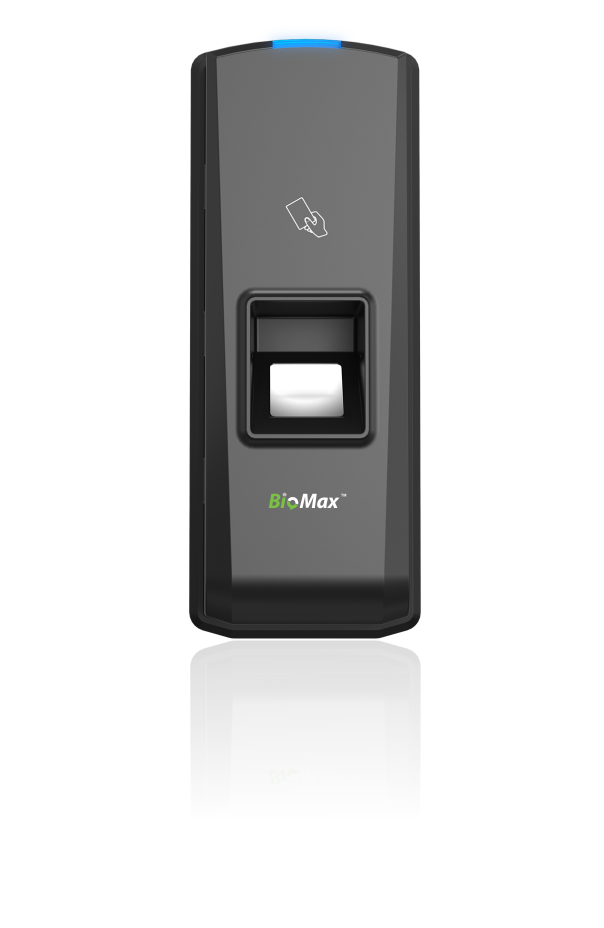

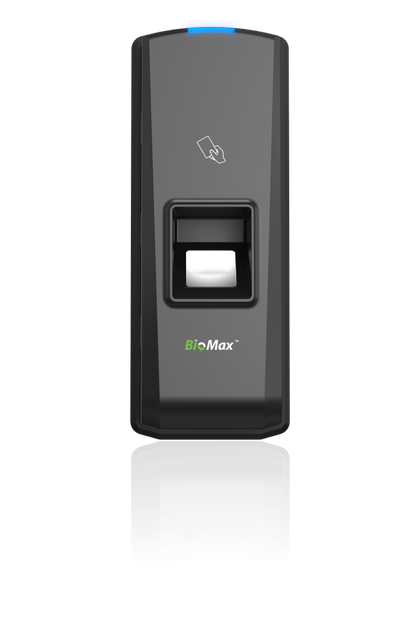

BioMax V-R12 Fingerprint & RFID Card Reader

BioMax V-R12 Fingerprint & RFID Card Reader

📞 Call 9315441078 for Best Price

BioMax V-R12 Fingerprint & RFID Card Reader

The BioMax V-R12 is an advanced biometric access control reader designed to deliver fast, secure, and reliable user authentication. Combining a high-speed fingerprint sensor with RFID card technology, the V-R12 provides dual verification options for modern access control environments.

Featuring a powerful 32-bit high-speed CPU, touch-activated fingerprint sensor, RS485 communication, and optional LAN/PoE connectivity, the V-R12 delivers quick verification performance with compact dimensions and efficient operation. It is designed for organizations requiring secure identity verification with enhanced speed and convenience.

Key Features

Fingerprint & RFID Authentication

Supports fingerprint identification and RFID card verification for flexible and secure access control.

Advanced Fingerprint Sensor

Equipped with a high-quality fingerprint sensor providing accurate and fast biometric recognition.

High-Speed 32-Bit CPU

Powerful processing technology ensures quick verification and efficient user authentication.

Touch Wake-Up Technology

Sensor activates through touch, improving usability while maintaining low power consumption.

RFID Card Compatibility

Supports standard EM cards with optional Mifare card compatibility for versatile deployment.

Network & Access Control Integration

Supports RS485 communication with optional LAN and PoE connectivity for professional access control systems.

Technical Specifications

Specification Details
Brand BioMax
Model V-R12 / VR-12
Product Type Fingerprint & RFID Card Reader
Authentication Methods Fingerprint + Card
RFID Card Support Standard EM Card, Optional Mifare Card
Fingerprint Sensor Advanced Fingerprint Sensor
Sensor Wake Mode Touch Activation
CPU 32-Bit High Speed CPU
Resolution 500 DPI
Scan Area 22 mm × 18 mm
Identification Mode Fingerprint / Card
Communication RS485
Connectivity LAN Connectivity, PoE (Power over Ethernet)
Operating Temperature -20°C – 50°C
Power Supply DC 12V, 1A
Dimensions (L × W × H) 160 × 150 × 65 mm

Applications

  • Corporate Offices
  • Commercial Buildings
  • Server Rooms
  • Industrial Facilities
  • Research Laboratories
  • Educational Institutions
  • Restricted Access Areas
  • High-Security Installations

Why Choose BioMax V-R12?

The BioMax V-R12 Fingerprint Card Reader combines biometric fingerprint recognition, RFID card technology, and high-speed processing in a compact and reliable device. With fast verification, flexible communication options, and advanced sensor technology, it provides a secure and efficient access control solution for modern security requirements.
