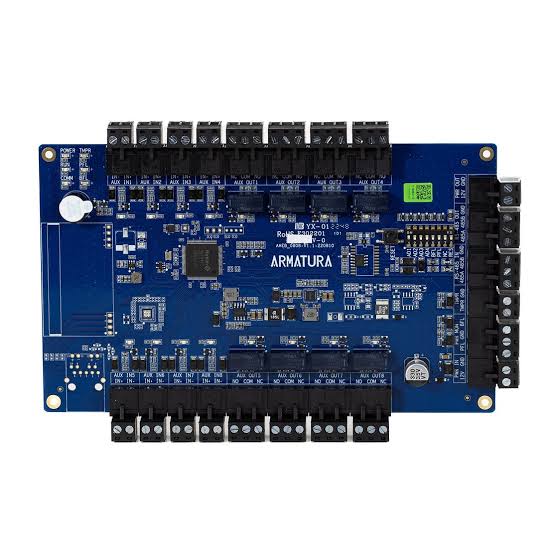

ZKTeco AHEB-0808 IO Expansion Board (8-In/8-Out)

ZKTeco AHEB-0808 IO Expansion Board (8-In/8-Out) — Multi-Door Access Control Panel

The ZKTeco AHEB-0808 IO Expansion Board (8-In/8-Out) is a multi-door access-control panel engineered for large-scale Indian deployments — IT parks, factories, hospitals, government buildings. Specifically, it supports thousands of users and credentials with sub-second authorisation, even on legacy 100 Mbps networks.

Why integrators specify the AHEB-0808 IO Expansion Board (8-In/8-Out)

🔌 Multi-door support — drive multiple doors from one panel. Therefore, wiring costs and rack space drop noticeably on larger sites.

🔔 I/O for alarms & locks — wire in door sensors, exit buttons, alarm horns and electric strikes without extra adapters.

📊 Thousands of users — on-board capacity scales for enterprise deployments without external database tricks.

🧠 Native integration — works directly with ZKBio CVSecurity, ZKBio Access and BioTime — no middleware required.

🛠️ DIN-rail or wall mount — installers can put it where it actually fits the cabinet, not where the panel dictates.

📡 OSDP + Wiegand — modern OSDP for new readers, plus Wiegand for retrofits. As a result, integrators don't have to pick one and lose the other.

Where this fits best

University campuses · Government complexes · Manufacturing facilities · Five-star hotels · Multi-tenant commercial buildings · IT parks & SEZs · Banking branches

Specifications at a glance

• Model: ZKTeco AHEB-0808 IO Expansion Board (8-In/8-Out)
• Category: Access Control Panel Expansion
• Reader support: Wiegand & OSDP
• Capacity: Thousands of users & events
• Network: TCP/IP, RS-485
• Software: ZKBio CVSecurity, ZKBio Access, BioTime
• I/O: Door sensor, exit button, alarm output, lock control
• Mounting: Wall mount or DIN rail (variant-dependent)
• Warranty: 12-month manufacturer warranty

Frequently asked questions

Q. Is it suitable for multi-building campuses?
Absolutely. The AHEB-0808 IO Expansion Board (8-In/8-Out) is built for enterprise-scale deployments — typical use cases include IT parks, hospital campuses, manufacturing plants and university grounds.

Q. Does it support OSDP readers?
Yes. The AHEB-0808 IO Expansion Board (8-In/8-Out) accepts both OSDP and standard Wiegand reader inputs. Therefore, integrators can mix legacy Wiegand readers with modern OSDP readers on the same panel.

Q. What software does it work with?
The AHEB-0808 IO Expansion Board (8-In/8-Out) integrates natively with ZKBio CVSecurity and ZKBio Access, plus BioTime for attendance-focused deployments. Additionally, an open SDK is available for custom HRMS integrations.

Q. What happens if the network goes down?
Door rules and the recent event log are stored on the controller itself. Consequently, doors keep operating to policy even when the management server is unreachable, and events sync back the moment connectivity returns.
