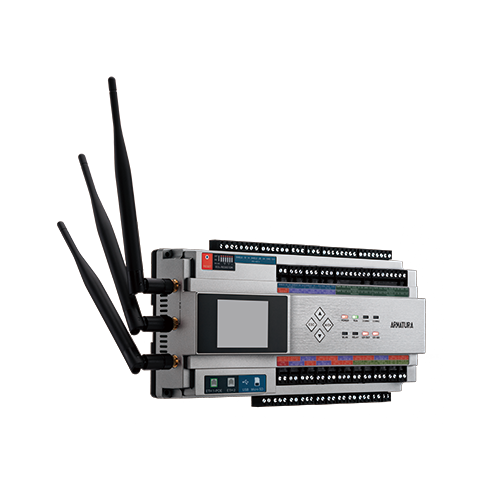

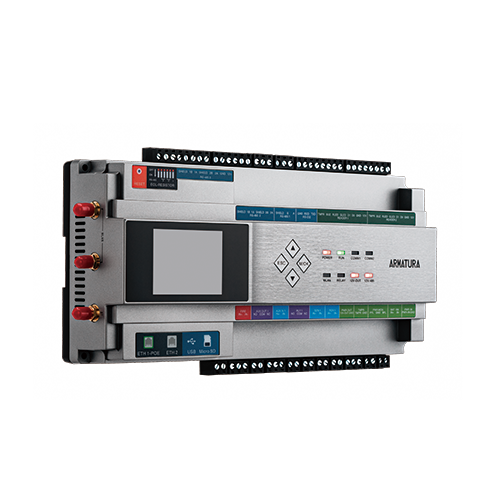

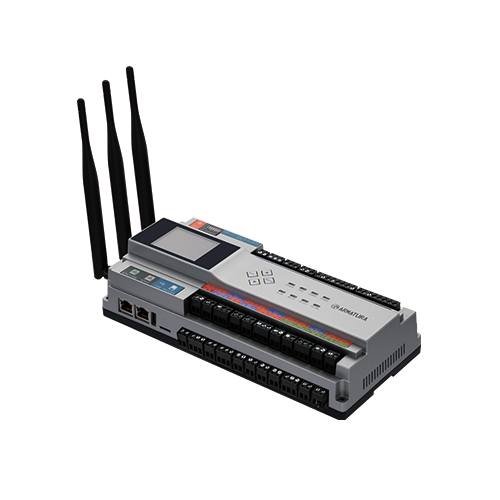

ZKTeco AHSC-1000 Access Control Panel

ZKTeco AHSC-1000 Access Control Panel

Rs. 69,924.00
Rs. 83,909.00 Rs. 69,924.00
Sale Sold out
Product Details

AHSC-1000 High Security Access Control Controller

The AHSC-1000 is a high-performance access control controller designed to provide ultimate authentication performance, scalability, advanced global functionality, and high-level cybersecurity. It supports peer-to-peer communication and provides multiple secure communication interfaces for integrating readers, controllers, and access control devices.

With support for RFID cards, mobile credentials, fingerprints, facial recognition, dynamic QR codes, and large-scale access control deployments, the AHSC-1000 is suitable for enterprise and high-security access control applications.

Key Features

  • Ultimate authentication performance for advanced access control applications.
  • Scalable architecture for large access control deployments.
  • Advanced global functionality based on peer-to-peer communication.
  • High-level cybersecurity with encrypted controller communications.
  • Supports Ethernet, Wi-Fi and Bluetooth communication.
  • Supports RS-485, Wiegand and RS-232 interfaces.
  • Supports OSDP readers over RS-485.
  • On-board 2.4-inch TFT monitor for controller status and configuration information.
  • Built-in webserver for system configuration and management.
  • Supports RFID, Bluetooth, NFC and dynamic QR code credentials.
  • Supports fingerprint and facial authentication.
  • Supports up to 5,000,000 transaction events.
  • Supports large-scale access point and reader expansion.

Product Advantages

  • High Security: Supports AES-256 encryption for controller-to-server and inter-controller communications.
  • Flexible Connectivity: Ethernet, Bluetooth, Wi-Fi, RS-485, Wiegand and RS-232 interfaces provide flexible integration options.
  • Large Biometric Capacity: Supports up to 100,000 fingerprint and 100,000 face templates when configured as a primary controller.
  • High Credential Capacity: Supports up to 800,000 RFID cards as a main controller.
  • Mobile Credential Support: Supports Bluetooth, NFC and dynamic QR code credentials.
  • Scalable Architecture: Supports additional DU modules and IO expansion for large installations.
  • Built-in Webserver: Provides system configuration, monitoring, user management, logs and network settings.
  • High Transaction Storage: Stores up to 5,000,000 events.

Technical Specifications

Specification Details
Product Type High-Security Access Control Controller
Primary Power PoE 802.3at / 9 - 24 VDC ± 20%, 550 mA maximum (reader current not included)
Primary Host Communication Ethernet: 100Base-TX
256-bit AES symmetric encryption for Controller-to-Server and Inter-Controller communications
Secondary Host Communication Bluetooth 5.2
Third Host Communication Wi-Fi IEEE 802.11ac 5GHz, or 2.4GHz/5GHz IEEE 802.11n
256-bit AES symmetric encryption for Controller-to-Server and Inter-Controller communications
Ethernet Network Connection Port 1: Ethernet 100Base-TX
Port 2: Ethernet 100Base-TX
Configurable for Port Failover
Number of Ports 2 × TCP/IP (IPv4 & IPv6)
3 × RS-485
2 × Wiegand
1 × RS-232
Inputs 4-state supervision with resistor values (5% tolerance)
Normally Open: 1.2k, 2.2k, 4.7k or 10k
Normally Closed: 1.2k, 2.2k, 4.7k or 10k
Dedicated Panel Tamper IO Input
Dedicated Microchip Control Fire Alarm IO Input & REX Input
Outputs 1 relay, 1 × Form-C with dry contacts
Normally Open Contact Rating 5A @ 30VDC resistive
Normally Closed Contact Rating 5A @ 30VDC resistive
On-Board Monitor 2.4-inch TFT Monitor
Resolution: 320 × 240
On-Board Webserver System Configuration and Management
Controller Status Monitoring
Device Connection Status Monitoring & Configuration
Performance Status
Server Primary Controller Setting
Network Status Monitoring & Setting
IP Access Filter
SSL / TLS Certificate Setting
Access Log Export
Controller Reset
Debug Status Monitoring
Operation Log Monitoring
User Management
Date & Time Setting
Daylight Saving Time Setting
NTP Server Setting
General Status
Controller Information
RFID Card Capacity Main Controller: 800,000 (Storage)
Door Unit: 400,000 (1:N) / 800,000 (1:1)
Mobile Credential Capacity 400,000 (1:N) Bluetooth
400,000 (1:N) NFC
400,000 (1:N) Dynamic QR Code
Fingerprint Capacity Primary Controller: 100,000 (Storage)
Door Unit: 50,000 (1:N) / 100,000 (1:1)
Face Capacity Primary Controller: 100,000 (Storage)
Door Unit: 5,000 (1:N) / 100,000 (1:1)
Transaction Buffer 5,000,000 Events
Access Level 100,000 Levels
On-Board Access Point Control 1 Access Point on board
On-Board Reader Support 2 OSDP over RS-485 or 2 Wiegand readers with on-board IO
Maximum Access Point 129 with 32pcs AHDU-1460 modules through TCP/IP connection
97 with 24pcs AHDU-1460 modules through Armatura RS-485 connection
Maximum Readers 258 with 32pcs AHDU-1460 modules through TCP/IP connection
194 with 24pcs AHDU-1460 modules through Armatura RS-485 connection
Maximum Inputs 12,801 with 33pcs AHDU-1460 modules through TCP/IP + 792pcs AHEB-1602 IO Expansion Boards through OSDP over RS-485
Maximum Outputs 12,801 with 33pcs AHDU-1460 modules through TCP/IP + 792pcs AHHEB-0216 IO Expansion Boards through OSDP over RS-485
Maximum IO Boards 24pcs via 2 × High-Speed RS-485 communication
Maximum DU Modules 32pcs via TCP/IP communication with AES-256 & TLS 1.2 end-to-end secure channel
24pcs via OSDP over RS-485 communication with AES-128 end-to-end secure channel

Communication & Connectivity

  • Ethernet 100Base-TX communication.
  • Dual Ethernet ports with configurable port failover.
  • TCP/IP with IPv4 and IPv6 support.
  • Bluetooth 5.2.
  • Wi-Fi 2.4GHz and 5GHz support.
  • 3 × RS-485 communication interfaces.
  • 2 × Wiegand interfaces.
  • 1 × RS-232 interface.
  • OSDP reader support over RS-485.

Biometric & Credential Support

  • RFID card authentication.
  • Bluetooth mobile credentials.
  • NFC mobile credentials.
  • Dynamic QR code credentials.
  • Fingerprint authentication.
  • Facial recognition.
  • Supports up to 100,000 fingerprint templates as a primary controller.
  • Supports up to 100,000 face templates as a primary controller.
  • Supports up to 800,000 RFID cards as a primary controller.

Security Features

  • 256-bit AES symmetric encryption for controller-to-server communication.
  • 256-bit AES encryption for inter-controller communication.
  • SSL / TLS certificate configuration through the webserver.
  • IP access filtering.
  • Dedicated panel tamper input.
  • Fire alarm and REX input support for catastrophic situations.
  • Secure OSDP communication over RS-485.
  • Secure end-to-end communication for DU modules.

Applications

  • Enterprise Access Control
  • Corporate Offices
  • High-Security Facilities
  • Government Buildings
  • Industrial Facilities
  • Large Commercial Buildings
  • Multi-Door Access Control Systems
  • Biometric Access Control Systems
  • Secure Campus Facilities
  • Large-Scale Identity Management Systems

Why Choose the AHSC-1000?

  • High-performance controller designed for advanced access control deployments.
  • Supports extremely large credential and biometric capacities.
  • Up to 5 million events can be stored in the transaction buffer.
  • Supports up to 129 access points with TCP/IP-connected expansion modules.
  • Supports up to 258 readers with TCP/IP-connected DU modules.
  • Multiple communication interfaces provide flexible system integration.
  • Advanced encryption helps protect controller and server communications.
  • Built-in webserver simplifies configuration and system management.
  • Scalable architecture supports large enterprise installations.
