ZKTeco AMD1800 Pro Walk Through Metal Detector
ZKTeco AMD1800 Pro Walk Through Metal Detector
Couldn't load pickup availability
Product Details

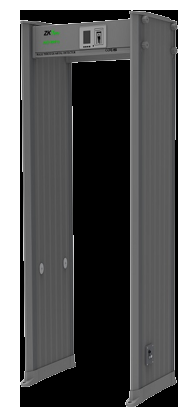

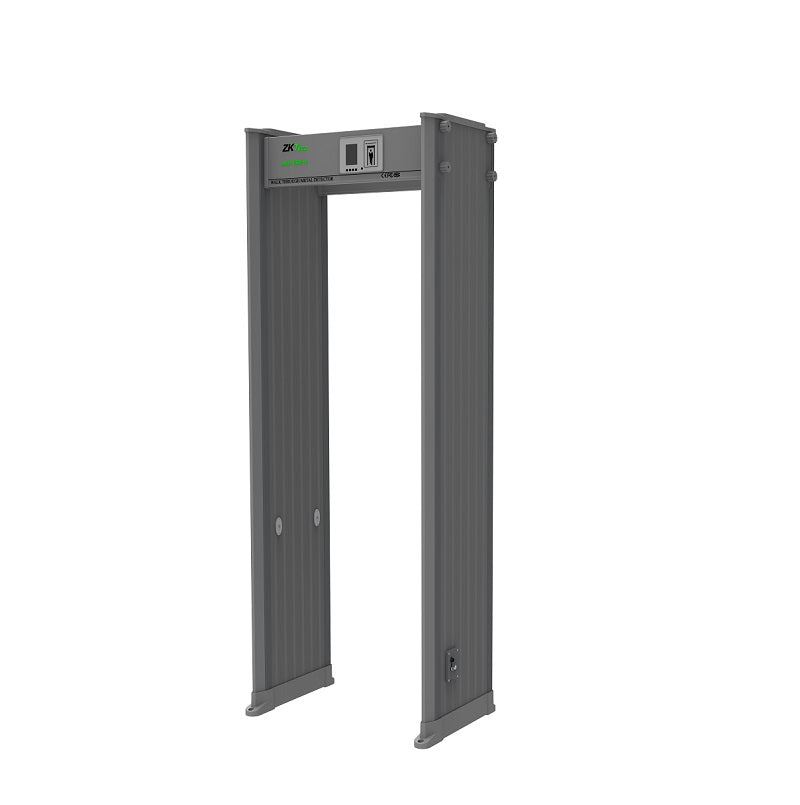

ZKTeco AMD1800 Pro Walk Through Metal Detector
The ZKTeco AMD1800 Pro is a professional walk-through metal detector designed to provide reliable security screening for people entering controlled areas. With 18 independent detection zones, 256 sensitivity levels, and synchronized audio and LED alarms, it provides accurate and intuitive detection of metallic objects.
Featuring an IP65 protection rating, the AMD1800 Pro is designed for demanding environments where protection against dust and water is required. Its 3.5-inch LCD display, TCP/IP communication, remote control and simple installation make it suitable for a wide range of security screening applications.
The AMD1800 Pro can also be integrated with compatible ZKTeco smart security gates, providing a flexible solution for entrance security systems in commercial, institutional and high-security environments.
Key Features
- 18 independent metal detection zones.
- 256 adjustable sensitivity levels.
- IP65 protection against dust and water projection.
- Synchronous sound and LED alarm indication.
- Audio and visual alarm system.
- 3.5-inch LCD display for intuitive operation.
- TCP/IP communication for network connectivity.
- Compatible with ZKTeco smart security gates.
- Remote control support.
- Simple installation and operation.
- Suitable for continuous security screening applications.
Product Advantages
- 18 detection zones provide precise identification of the location of detected metal objects.
- 256 sensitivity levels allow the system to be adjusted for different security requirements.
- IP65-rated construction provides enhanced protection in demanding environments.
- Synchronized audio and visual alarms make detected threats easy to identify.
- LCD display simplifies system configuration and monitoring.
- TCP/IP communication enables network-based management and integration.
- Remote control provides convenient operation and configuration.
- Compatible with ZKTeco smart security gates for integrated entrance security.
Detection Technology
18-Zone Detection
The AMD1800 Pro provides 18 detection zones to help identify the location of metallic objects on a person. This enables security personnel to respond more quickly and accurately during screening.
Adjustable Sensitivity
With 256 sensitivity levels, the detector can be configured according to the security requirements of the installation site and the desired screening sensitivity.
Audio & Visual Alarm
When metal is detected, the AMD1800 Pro provides synchronized sound and LED alarm indications, allowing security personnel to identify an alarm condition quickly.
IP65 Protection
The IP65 protection rating provides protection against dust and water projected from a nozzle, making the AMD1800 Pro suitable for demanding security screening environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | AMD1800 Pro |
| Product Type | Walk Through Metal Detector |
| Detection Zones | 18 Zones |
| Sensitivity Levels | 256 |
| Display | 3.5-inch LCD Display |
| Alarm | Synchronous Sound & LED Alarm |
| Alarm Type | Audio and Visual Alarm |
| Communication | TCP/IP |
| Remote Control | Supported |
| Smart Security Gate Compatibility | Compatible with ZKTeco Smart Security Gates |
| Power Supply | AC 100V to 240V |
| Input Voltage | DC 12V |
| Working Frequency | 5.7 kHz to 9.6 kHz |
| Working Current | 1.5A Max |
| Running Power | 18W Max |
| Protection Level | IP65 |
| Working Humidity | Up to 95% RH, Non-condensing |
| Dimensions (L × W × H) | 2229 × 816 × 554 mm |
| Dimensions with Packing (L × W × H) | 2285 × 260 × 615 mm |
| Lane Size (L × W × H) | 2002 × 704 × 488 mm |
| Net Weight | 60 kg |
Communication & Connectivity
- TCP/IP communication.
- Network connectivity for system integration.
- Compatible with ZKTeco smart security gates.
- Remote control support.
Safety & Security Features
- 18-zone metal detection technology.
- 256 sensitivity adjustment levels.
- Synchronous audio and visual alarm indication.
- Clear LED detection indicators.
- IP65 dust and water protection.
- Continuous operation capability.
Applications
- Corporate Offices
- Government Buildings
- Airports & Transportation Hubs
- Stadiums & Sports Facilities
- Hotels & Hospitality
- Shopping Malls
- Factories & Industrial Facilities
- Educational Institutions
- Hospitals & Healthcare Facilities
- Banks & Financial Institutions
- Prisons & High-Security Facilities
- Event & Exhibition Venues
- Security Checkpoints
Why Choose ZKTeco AMD1800 Pro?
- Provides precise detection with 18 independent detection zones.
- Offers 256 sensitivity levels for flexible security configuration.
- IP65-rated construction for demanding environments.
- Clear synchronized audio and LED alarm indication.
- 3.5-inch LCD display for convenient operation.
- TCP/IP connectivity enables integration with security systems.
- Compatible with ZKTeco smart security gates.
- Remote control simplifies operation and configuration.
- Designed for reliable and continuous security screening.
Applications in Security Screening
The AMD1800 Pro is suitable for locations where controlled pedestrian screening is required. Its multi-zone detection, adjustable sensitivity, IP65 protection and network communication capabilities make it an effective solution for entrances, security checkpoints and other controlled access areas.
