ZKTeco AMT-FAPVR-30 Visible Light Face and Palm Recognition Reader

ZKTeco AMT-FAPVR-30 Visible Light Face and Palm Recognition Reader

Rs. 29,545.00
Rs. 35,454.00 Rs. 29,545.00
Sale Sold out
Product Details

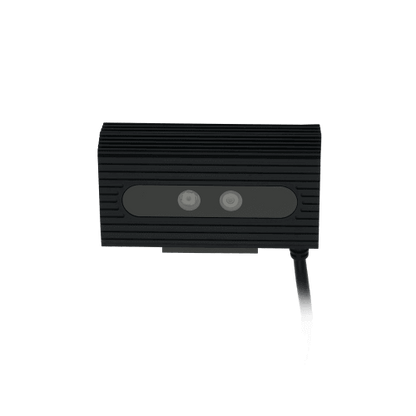

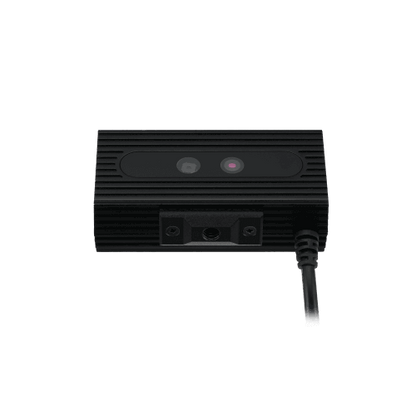

AMT-FAPVR-30 Dual-Lens Multimodal Standalone Reader for Face and Palm Recognition

The AMT-FAPVR-30 is a dual-lens multimodal standalone biometric reader designed for secure face and palm recognition. It combines a 2.0MP visible light camera and a 1.3MP infrared light camera to provide reliable biometric authentication across different lighting conditions.

With dedicated face and palm recognition capabilities, the AMT-FAPVR-30 supports 1:1 and 1:N recognition modes, fast biometric matching, and liveness detection. Its compact design, USB 2.0 interface, and UVC/HID communication protocol make it suitable for flexible biometric deployments.

Key Features

  • Dual-lens multimodal biometric recognition for Face and Palm.
  • 2.0MP visible light camera with HDR technology.
  • 1.3MP infrared light camera for biometric recognition and liveness detection.
  • Face capacity of up to 30,000 templates.
  • Palm capacity of up to 5,000 templates.
  • Face recognition speed of less than 100ms.
  • Palm recognition speed of less than 140ms.
  • Face and palm liveness detection.
  • Face attribute detection including age, gender, and expression classification.
  • 1:1 and 1:N recognition modes.
  • UVC and HID communication protocol.
  • USB 2.0 interface.
  • Compact standalone reader design.

Product Advantages

  • Combines two biometric modalities in a single compact device.
  • Provides flexible authentication using either face or palm recognition.
  • High-capacity biometric storage supports large deployments.
  • Infrared-based liveness detection enhances biometric security.
  • HDR visible light imaging provides improved performance under varying lighting conditions.
  • Wide illumination range supports different environmental conditions.
  • Fast recognition helps provide a smooth user authentication experience.
  • Compact dimensions simplify installation and integration.

Technical Specifications

Specification Details
Model AMT-FAPVR-30
Product Type Dual-Lens Multimodal Standalone Reader
Biometric Type Face, Palm
Recognition Mode 1:1, 1:N
Processor 1.2GHz Quad Core ARM Processor, 2.4 TOPS NPU
Memory 1GB RAM and 512MB Flash
Camera 1.3MP Infrared Light Camera;
2.0MP Visible Light Camera
Visible Light Camera 1/2.8" HDR CMOS, 2.0MP
Infrared Light Camera 1/4" CMOS, 1.3MP
Dynamic Range Visible Light Camera: HDR Mode 106dB
Face Capacity 30,000
Palm Capacity 5,000
Accuracy Face: TAR = 99% @ FAR = 0.01%
Palm: TAR = 98.7% @ FAR = 0.01%
Face Recognition Speed < 100ms
Palm Recognition Speed < 140ms
Recognition Distance Face: 40cm – 120cm
Palm: 18cm – 40cm
Frame Rate 15 fps
Image Resolution Visible Light Camera:
Raw: 1080W × 1920H
Output: 720W × 1280H

Infrared Light Camera:
Raw: 1080W × 1280H
Output: 720W × 1280H
Image Type Visible Light Camera: 24-bit RGB True Color
Infrared Light Camera: 256 Grayscale Levels
Optical Wavelength Visible Light Camera: 440nm ~ 650nm
Infrared Light Camera: 940nm
Illumination Range Visible Light Camera: 0.01 Lux to 50,000 Lux
Infrared Light Camera: 0.01 Lux to 20,000 Lux
Liveness Detection Face: Infrared-visible light mode; Infrared light mode
Palm: Infrared light mode
Face Attributes Age, Gender, Expression Classification
Posture Adaptability Face: Yaw ≤ 30°, Pitch ≤ 30°, Roll ≤ 45°
Palm: Yaw ≤ 45°, Pitch ≤ 30°, Roll ≤ 90°, Bend ≤ 30°
Exposure Mode Auto Expose on Region of Interest (AE on ROI)
Distortion Rate ≤ 0.5%
Communication UVC and HID Protocol
Interface USB 2.0
Power Supply DC 5.0V / 2.0A
Power Consumption Standby: < 2.5W
Operation: < 3.5W
Operating Temperature -10°C ~ 55°C
Storage Temperature -40°C ~ 85°C / -40°F ~ 185°F
Operating Humidity 15% ~ 95% RH
Dimensions 80.0 × 40.0 × 26.0 mm
Certifications CE, FCC, RoHS

Face Recognition Features

  • Visible light facial recognition.
  • 2.0MP HDR visible light camera.
  • Face recognition capacity up to 30,000.
  • Face recognition speed less than 100ms.
  • Face liveness detection using infrared-visible light and infrared modes.
  • Face recognition distance of 40cm to 120cm.
  • Face attribute classification for age, gender, and expression.
  • Face posture adaptability up to Yaw ≤ 30°, Pitch ≤ 30°, and Roll ≤ 45°.

Palm Recognition Features

  • Palm recognition capacity up to 5,000.
  • 1.3MP infrared light camera for palm recognition.
  • Palm liveness detection using infrared light.
  • Palm recognition speed less than 140ms.
  • Palm recognition distance of 18cm to 40cm.
  • Palm accuracy of TAR 98.7% @ FAR 0.01%.
  • Palm posture adaptability up to Yaw ≤ 45°, Pitch ≤ 30°, Roll ≤ 90°, and Bend ≤ 30°.

Applications

  • Access Control Systems
  • Time Attendance Systems
  • Secure Biometric Authentication
  • Corporate Offices
  • Factories and Manufacturing Facilities
  • Healthcare Facilities
  • Educational Institutions
  • Government and High-Security Facilities
  • Retail and Commercial Premises
  • Privacy-Focused Authentication Applications

Why Choose AMT-FAPVR-30?

  • Dual biometric authentication with face and palm recognition.
  • High-capacity storage for up to 30,000 face templates and 5,000 palm templates.
  • Fast face and palm recognition performance.
  • Advanced liveness detection for enhanced authentication security.
  • HDR visible light camera with 106dB dynamic range.
  • Wide operating illumination range.
  • Compact and lightweight standalone design.
  • USB 2.0 connectivity with UVC and HID protocol support.
