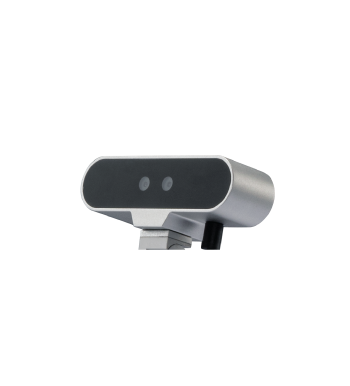

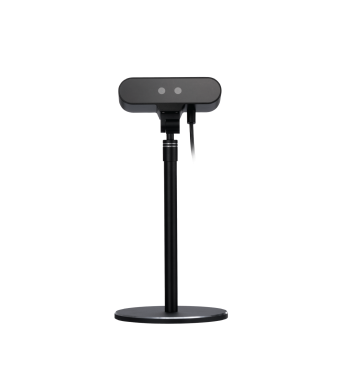

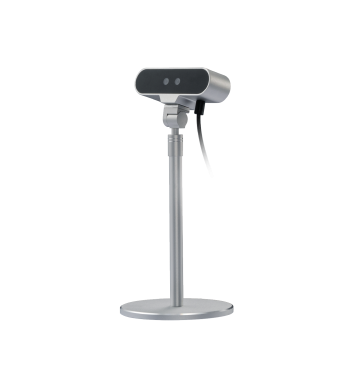

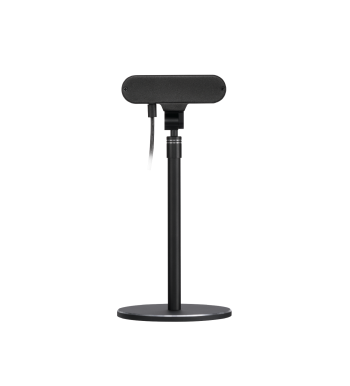

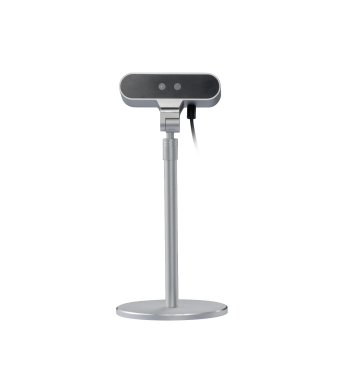

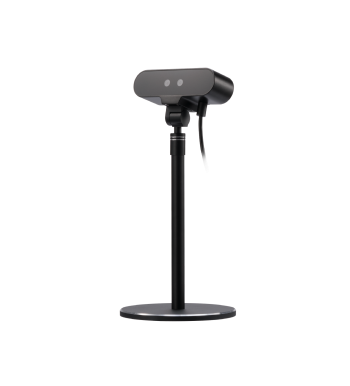

ZKTeco AMT-FAR-10 Dual-Lens Face Recognition USB Reader
ZKTeco AMT-FAR-10 Dual-Lens Face Recognition USB Reader
Couldn't load pickup availability
Product Details
ZKTeco AMT-FAR-10 Dual-Lens – Near-Infrared & Visible Light Face Module
The ZKTeco AMT-FAR-10 Dual-Lens is a biometric face recognition module designed to capture both Near-Infrared (NIR) grayscale facial images and true-color RGB facial images for accurate biometric identification. Its dual-lens design combines visible light and infrared imaging to provide high-quality facial data across different recognition conditions.
Powered by Armatura FaceLite and LiveFace algorithms, the AMT-FAR-10 is designed to deliver reliable face recognition while providing advanced liveness detection for enhanced anti-spoofing protection. The combination of dual-camera imaging and biometric algorithms helps improve identification accuracy and security.
The compact module connects through USB 2.0 and is suitable for integration into compatible biometric terminals, access control devices, attendance systems, and other face recognition applications.
Key Features
Captures both Near-Infrared grayscale facial images and visible-light RGB images to provide comprehensive biometric facial data for recognition.
The module combines a visible-light camera for 24-bit RGB true-color images with an infrared camera capable of capturing 256 grayscale levels.
Powered by Armatura FaceLite and LiveFace algorithms, the module provides liveness detection designed to enhance protection against facial spoofing attempts.
Both visible-light and infrared cameras provide a 720 × 1280 image resolution for detailed facial image capture.
The combination of visible and infrared imaging helps provide reliable facial biometric data under varying lighting conditions.
The face module has a compact 60.0 × 22.0 × 18.3 mm form factor, while the complete reader assembly measures 95.5 × 29.0 × 26.4 mm.
Provides straightforward connectivity to compatible host systems through a USB 2.0 interface.
The specified recognition distance is approximately 40 to 90 cm, providing convenient face positioning for biometric verification.
Imaging Technology
- Visible Light Camera
- Near-Infrared Camera
- 24-bit RGB True-Color Imaging
- 256-Level Grayscale Infrared Imaging
- Dual-Lens Image Capture
- Advanced Face Recognition Algorithms
- Liveness Detection / Anti-Spoofing
Applications
- Face Recognition Terminals
- Access Control Systems
- Time Attendance Systems
- Biometric Identification Devices
- Visitor Management Systems
- Secure Entrance Systems
- Identity Verification Applications
- OEM Biometric Device Integration
Specifications
| Parameter | Specification |
|---|---|
| Model | AMT-FAR-10 Dual-Lens |
| Product Type | Dual-Lens Near-Infrared & Visible Light Face Module |
| Interface | USB 2.0 |
| Power Supply | DC 5.0V / 400mA |
| Operating Temperature | -10°C to 45°C / 14°F to 113°F |
| Storage Temperature | -20°C to 80°C / -4°F to 176°F |
| Operating Humidity | 0% to 90% RH |
| Module Dimensions | 60.0 × 22.0 × 18.3 mm (±1 mm) |
| Reader Dimensions | 95.5 × 29.0 × 26.4 mm (±1 mm) |
| SDK | Armatura FaceLite SDK 12.0 |
| Certifications | CE, FCC, RoHS, WHQL |
| Visible Light Camera | Visible Light Camera |
| Infrared Camera | Near-Infrared Light Camera |
| Visible Light CMOS | 1/2.7" HDR |
| Dynamic Range | 83 dB |
| Optical Wavelength – Visible Light | 440 nm to 650 nm |
| Optical Wavelength – Infrared | 850 nm |
| Image Type – Visible Light | 24-bit RGB True Color |
| Image Type – Infrared | 256 Grayscale Levels |
| Image Resolution – Visible Light | 720 × 1280 |
| Image Resolution – Infrared | 720 × 1280 |
| Default Output Format | MJPEG |
| Distortion Rate | ≤1% |
| Field of View | Horizontal: 40°; Vertical: 65°; Diagonal: 74° |
| Maximum Frame Rate | 12 fps |
| Recognition Distance | 40 cm to 90 cm / 16 inch to 35 inch |
| Recognition Technology | Armatura FaceLite and LiveFace Algorithms |
| Liveness Detection | Supported |
Frequently Asked Questions
The AMT-FAR-10 is a dual-lens biometric face module that captures both visible-light RGB and Near-Infrared grayscale facial images for biometric recognition.
The dual-lens design combines visible-light and Near-Infrared imaging, allowing the system to obtain detailed facial information from two optical spectrums and support reliable biometric identification.
Yes. The module is powered by Armatura FaceLite and LiveFace algorithms and provides liveness detection for enhanced anti-spoofing protection.
The specified recognition distance is 40 to 90 cm, or approximately 16 to 35 inches.
Both the visible-light and infrared cameras provide an image resolution of 720 × 1280.
The visible-light camera captures 24-bit RGB true-color images, while the infrared camera captures images with 256 grayscale levels.
The module uses a USB 2.0 interface and operates from a DC 5.0V / 400mA power supply.
The AMT-FAR-10 supports the Armatura FaceLite SDK 12.0.
