ZKTeco AMT-PVR-50 Embedded Palm Recognition Reader
ZKTeco AMT-PVR-50 Embedded Palm Recognition Reader
Regular price
Rs. 29,545.00
Regular price
Rs. 35,454.00
Sale price
Rs. 29,545.00
Quantity
Couldn't load pickup availability
Product Details

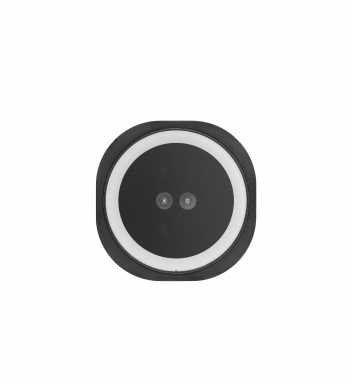

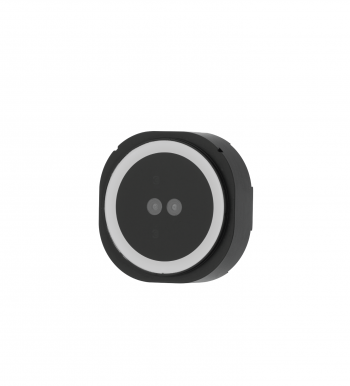

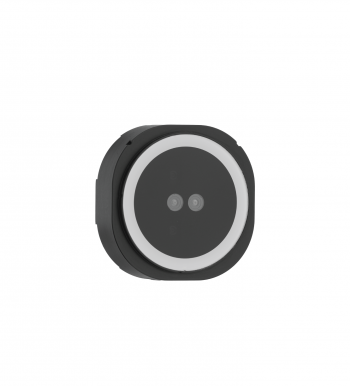

AMT-PVR-50 Standalone Dual-Camera Palm Reader
The AMT-PVR-50 is a high-performance Standalone Dual-Camera Palm Reader designed for secure and convenient biometric authentication. It uses dedicated visible light and infrared cameras to capture high-quality color and grayscale palm images, supporting palm print and palm vein recognition.
Powered by an 800 MHz Dual Core Cortex A53 processor with a 1.5 TOPS NPU, the AMT-PVR-50 provides fast palm detection, liveness detection, feature extraction, and identification. Its wide-angle, short-focus lens and compact design provide a simple and convenient user experience with a quick wave of the hand.
Key Features
- Standalone dual-camera palm reader.
- Dual cameras for high-quality visible light and infrared palm imaging.
- Supports palm print and palm vein image capture.
- Built-in palm detection, liveness detection, and feature extraction algorithms.
- 1:N palm recognition capacity of up to 30,000.
- Fast authentication speed of less than 100ms.
- Palm liveness detection time of less than 20ms.
- Feature template extraction time of less than 25ms.
- Comparison time of less than 30ms.
- Wide illumination range from 0.01 Lux to 100,000 Lux.
- Supports 125kHz and 13.56MHz RFID credentials.
- Supports ID, IC, and MF card types.
- USB 2.0 interface with UVC and HID protocol support.
- Compatible with Windows, Android, and Linux platforms through MultiBio SDK.
Product Advantages
- Dual-camera technology provides high-quality palm image capture.
- Advanced liveness detection enhances biometric security.
- Fast identification provides a smooth user experience.
- Large 30,000-user 1:N palm recognition capacity.
- Supports multiple RFID card technologies for flexible deployment.
- Wide-angle lens simplifies palm positioning and recognition.
- Operates reliably under varying lighting conditions.
- USB 2.0 connectivity provides easy integration with computers and embedded systems.
- Compact 85 × 85 × 28.7mm design is suitable for different installation environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | AMT-PVR-50 |
| Product Type | Standalone Dual-Camera Palm Reader |
| Processor | 800 MHz Dual Core Cortex A53 Processor, 1.5 TOPs NPU |
| Memory | 256MB RAM and 256MB Flash |
| Camera | 1.3MP Infrared Camera; 1.3MP Visible Light Camera |
| Sensor | 1/5" CMOS, 1.3MP |
| Camera Type | Visible Light Camera and Infrared Light Camera |
| Frame Rate | 25fps / 30fps |
| Image Resolution |
Visible Light Camera: Raw 1024W × 1280H, Output 720W × 1280H Infrared Light Camera: Raw 1024W × 1280H, Output 720W × 1280H |
| Image Type |
Visible Light Camera: 24-bit RGB True Color Infrared Light Camera: 256 Grayscale Levels |
| Optical Wavelength |
Visible Light Camera: 440nm to 650nm Infrared Light Camera: 850nm |
| Shutter Type | Global Shutter |
| Field of View |
Horizontal: 116° Vertical: 95° Diagonal: 145° |
| Distortion Rate | <2% |
| Exposure Mode | Auto Expose on Region of Interest (AE on ROI) |
| Illumination Range | 0.01 Lux to 100,000 Lux |
| Recognition Method | Palm |
| Authentication Mode | 1:1, 1:N |
| 1:N Capacity | 30,000 |
| Recognition Distance | 5cm - 15cm |
| Palm Liveness Detection Time | <20ms |
| Feature Template Extraction Time | <25ms |
| Comparison Time | <30ms |
| Authentication Speed | <100ms |
| Accuracy | FRR = 0.17% when FAR = 0.001% |
| Posture Adaptability | Yaw ≤ 30°, Pitch ≤ 45°, Roll ≤ 180°, Bend ≤ 20° |
| Interface | USB 2.0 |
| Communication | UVC and HID Protocol |
| Default Output Format | MJPEG |
| Operating Frequency / Standards |
125kHz 13.56MHz: ISO14443A, ISO14443B, JIS X6319-4, ISO15693 |
| Card Type | ID Card, IC Card, MF Card |
| Power Supply | DC 5.0V / 1.0A |
| Power Consumption |
Standby: <2.0W Operation: <4.0W |
| Operating Temperature | -10°C to 55°C / 14°F to 131°F |
| Storage Temperature | -20°C to 65°C / -4°F to 149°F |
| Operating Humidity | 15% to 95% RH (Non-condensing) |
| Dimensions | 85.0(L) × 85.0(W) × 28.7(H) mm (±1mm) |
| Weight | 150g |
| Certifications | CE, FCC, RoHS |
Main Features
- Dual visible light and infrared cameras.
- Palm print and palm vein image capture.
- 30,000 palm template 1:N capacity.
- Less than 20ms palm liveness detection.
- Less than 30ms comparison time.
- Less than 25ms feature template extraction.
- Less than 100ms authentication speed.
- 1:1 and 1:N authentication modes.
- 125kHz and 13.56MHz RFID support.
- ID, IC, and MF card compatibility.
- UVC and HID protocol support.
- USB 2.0 connectivity.
Applications
- Physical and Digital Security
- Access Control Systems
- Time Attendance
- Point of Sale and Payment Services
- Healthcare Patient Identification
- Public Transport
- Airport and Border Control
- Campus Security
- Retail Customer Identification
- VIP Access Management
Why Choose AMT-PVR-50?
- Advanced dual-camera palm recognition technology.
- High-capacity 30,000-user palm recognition.
- Fast and secure biometric authentication.
- Built-in palm detection and liveness detection algorithms.
- Supports both palm biometrics and multiple RFID card technologies.
- Wide 0.01 Lux to 100,000 Lux illumination range.
- Compact and lightweight design.
- Low power consumption with less than 4W during operation.
- Compatible with Windows, Android, and Linux through MultiBio SDK.
Compatibility & Integration
- USB 2.0 interface.
- UVC and HID communication protocols.
- Compatible with Windows platforms.
- Compatible with Android platforms.
- Compatible with Linux platforms.
- Supports MultiBio SDK for application integration.
