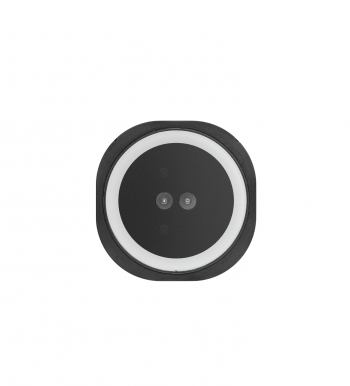

ZKTeco AMT-PVS-50 Biometric Module

ZKTeco AMT-PVS-50 Biometric Module

Rs. 25,606.00
Rs. 30,728.00 Rs. 25,606.00
Sale Sold out
Product Details

High Precision Dual Camera Standalone Palm Module

The High Precision Dual Camera Standalone Palm Module is a high-performance biometric palm recognition module designed for fast, accurate, and secure palm authentication. It uses a visible light camera and infrared camera to capture high-quality palm images and supports advanced palm liveness detection for enhanced security.

With a 1:N capacity of up to 30,000, fast palm comparison, wide field of view, and reliable operation across a broad range of lighting conditions, the module is suitable for biometric access control, identification, and authentication applications.

Key Features

  • High-precision palm recognition technology.
  • Dual camera system with visible light and infrared cameras.
  • 1/5" CMOS sensor with 1.3MP resolution.
  • Advanced palm liveness detection.
  • 1:N palm recognition capacity of up to 30,000 users.
  • Fast comparison time of less than 30ms.
  • Feature template extraction time of less than 25ms.
  • Wide field of view for convenient palm positioning.
  • Supports 1:1 and 1:N authentication modes.
  • UVC and HID communication protocols.
  • Global shutter for accurate image capture.
  • Compact and lightweight design.

Product Advantages

  • Fast and accurate palm authentication.
  • Dual-camera imaging improves biometric capture quality.
  • Advanced liveness detection helps enhance authentication security.
  • Supports large-scale biometric enrollment with up to 30,000 templates.
  • Works across a wide illumination range from 0.01 Lux to 100,000 Lux.
  • Wide 116° horizontal field of view makes palm positioning easier.
  • Compact dimensions make it suitable for integration into biometric systems.
  • Supports standard UVC and HID communication.

Technical Specifications

Specification Details
Product Type High Precision Dual Camera Standalone Palm Module
Camera Type Visible Light Camera
CMOS 1/5" CMOS, 1.3MP
Frame Rate 25fps / 30fps
Image Resolution Visible Light Camera: Raw 1024W × 1280H, Output 720W × 1280H
Infrared Light Camera: Raw 1024W × 1280H, Output 720W × 1280H
Image Spatial Alignment ±5 pixel
Image Time Alignment Maximum delay between frames: 10ms
Image Type Visible Light Camera: 24-bit RGB true color
Infrared Light Camera: 256 Grayscale Levels
Optical Wavelength Visible Light Camera: 440nm ~ 650nm
Infrared Light Camera: 850nm
Palm Liveness Detection Time <20ms (infrared-visible light mode; infrared light mode)
Posture Adaptability Yaw ≤ 30°, Pitch ≤ 45°, Roll ≤ 180°, Bend ≤ 20°
1:N Capacity 30,000
Accuracy FRR = 0.17% when FAR = 0.001%
Authentication Mode 1:1, 1:N
Biometric Recognition Method Palm
Communication UVC and HID Protocol
Comparison Time <30ms
Default Output Format MJPEG
Distortion Rate <2%
Exposure Mode Auto Expose on Region of Interest (AE on ROI)
Feature Template Extraction Time <25ms
Field of View (FOV) Horizontal: 116°
Vertical: 95°
Diagonal: 145°
Illumination Range 0.01 Lux to 100,000 Lux
Recognition Distance 5cm - 15cm
Shutter Type Global Shutter
Power Supply DC 5.0V / 1.0A
Operating Temperature -10°C to 55°C / 14°F to 131°F
Operating Humidity 15% ~ 95% RH (Non-condensing)
Dimensions 62.0(L) × 62.0(W) × 20.0(H) mm (±1mm)
Net Weight 97g
Certifications CE, FCC, RoHS, WHQL

Main Features

  • Visible light and infrared dual-camera imaging.
  • 30,000 palm template 1:N capacity.
  • Less than 20ms palm liveness detection.
  • Less than 30ms palm comparison time.
  • Less than 25ms feature template extraction.
  • 1:1 and 1:N authentication modes.
  • Wide 145° diagonal field of view.
  • 5cm to 15cm recognition distance.
  • MJPEG default output format.
  • UVC and HID protocol communication.

Applications

  • Biometric Access Control
  • Time Attendance Systems
  • Palm Authentication Terminals
  • Identity Verification Systems
  • Secure Entry Systems
  • Corporate Offices
  • Industrial Facilities
  • Healthcare Facilities
  • Educational Institutions
  • High-Security Areas

Why Choose the High Precision Dual Camera Palm Module?

  • High-capacity palm recognition supporting up to 30,000 templates.
  • Fast authentication with comparison time below 30ms.
  • Advanced palm liveness detection for secure biometric verification.
  • Dual-camera technology combines visible and infrared imaging.
  • Wide field of view simplifies palm positioning.
  • Compact 62 × 62 × 20mm design for easy system integration.
  • Supports UVC and HID communication protocols.
  • Reliable operation from -10°C to 55°C.
