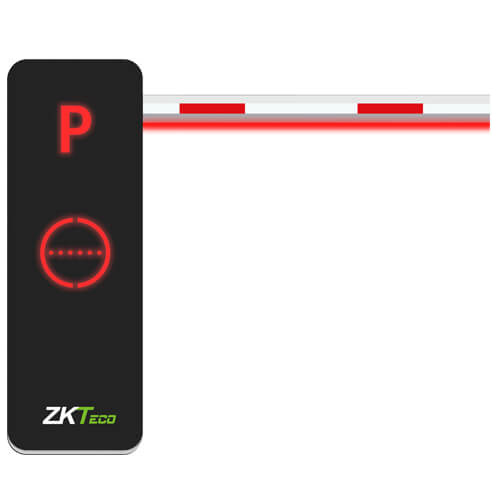

ZKTeco AMTL-BGM1000 Parking Barrier Gate
ZKTeco AMTL-BGM1000 Parking Barrier Gate
Couldn't load pickup availability
Product Details
ZKTeco BGM1000 Series Barrier Gate
The ZKTeco BGM1000 Series is a comprehensive automatic barrier gate designed for efficient and reliable vehicle access control. It features an interactive LED chassis design, a programmable control panel, a high-efficiency DC 24V brushless motor, and a durable SCM421 material gear transmission structure.
Designed for demanding parking and vehicle access applications, the BGM1000 Series combines fast operation, stable performance and flexible function expansion. Its brushless motor and robust transmission mechanism provide reliable operation for high-frequency vehicle entrances and exits.
Key Features
- Interactive LED chassis design for improved visual indication.
- Programmable control panel for flexible barrier management.
- High-efficiency DC 24V brushless motor.
- SCM421 material gear transmission structure.
- Motor MCBF of up to 3 million cycles.
- 120W output power for reliable barrier operation.
- Fast and stable performance for vehicle access control.
- Remote control distance of up to 30 meters.
- Wide operating temperature range from -35°C to 70°C.
- Suitable for a wide range of parking and vehicle entrance applications.
Advanced Motor & Transmission
Brushless DC Motor
The BGM1000 uses a DC 24V brushless motor designed to provide efficient, smooth and reliable barrier operation. The brushless motor architecture helps support long-term performance in frequently used vehicle access points.
High Reliability
The motor is rated for an MCBF of up to 3 million cycles, making the BGM1000 suitable for demanding parking facilities and high-frequency vehicle entrances.
Durable Gear Transmission
The barrier adopts an SCM421 material gear transmission structure to provide stable mechanical power transmission and dependable operation.
Interactive LED Design
LED Chassis
The interactive LED chassis provides clear visual indication around the barrier gate, helping users understand the system status and improving visibility at vehicle entrances.
Control & Operation
- Programmable control panel.
- Flexible function expansion.
- Remote control operation.
- Remote control distance of up to 30 meters.
- High-efficiency brushless motor drive.
- Stable barrier operation for frequent vehicle access.
Technical Specifications
| Specification | Details |
|---|---|
| Model | BGM1000 Series |
| Product Type | Automatic Barrier Gate |
| Dimensions | 350 × 280 × 1000 mm |
| Motor Type | DC 24V Brushless Motor |
| Motor MCBF | 3 Million Cycles |
| Output Power | 120W |
| Rated Current | 6A |
| Power Supply | AC 220V, 50Hz / AC 110V, 60Hz |
| Remote Control Distance | ≤ 30 m |
| Operating Temperature | -35°C to 70°C |
| Operating Humidity | < 90% |
| Weight | 45 kg |
| Control Panel | Programmable Control Panel |
| Chassis Design | Interactive LED Chassis |
| Gear Transmission | SCM421 Material Gear Transmission Structure |
Applications
- Commercial Parking Facilities
- Office Building Entrances
- Residential Parking Areas
- Shopping Malls
- Hotels & Hospitality Facilities
- Factories & Industrial Facilities
- Warehouses & Logistics Facilities
- Business Parks
- Private Vehicle Entrances
- High-Traffic Vehicle Access Points
Why Choose ZKTeco BGM1000?
- High-efficiency brushless DC motor for reliable operation.
- 3 million-cycle motor MCBF for long-term durability.
- Interactive LED chassis improves visual status indication.
- Programmable control panel provides flexible functionality.
- SCM421 gear transmission structure supports stable mechanical operation.
- Suitable for demanding vehicle access control environments.
- Wide operating temperature range for challenging environments.
- Remote control operation up to 30 meters.
Reliable Vehicle Access Control
The ZKTeco BGM1000 Series provides a combination of high-efficiency motor technology, durable mechanical transmission, programmable control and interactive LED indication. It is designed as a comprehensive barrier gate solution for parking facilities, commercial properties and other vehicle access control applications requiring reliable and consistent operation.
