ZKTeco BOL2219-A Control Cabinet for 2 Turnstile Groups
ZKTeco BOL2219-A Control Cabinet for 2 Turnstile Groups
Couldn't load pickup availability
Product Details

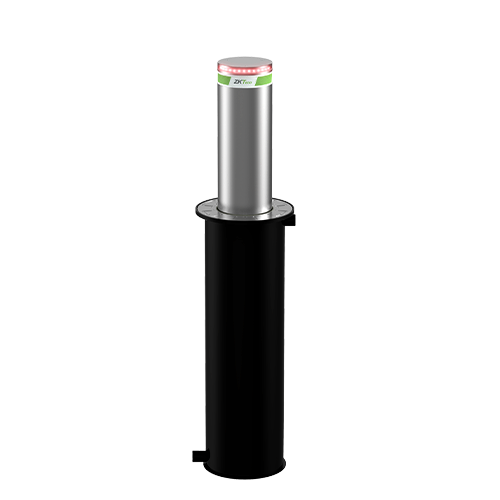

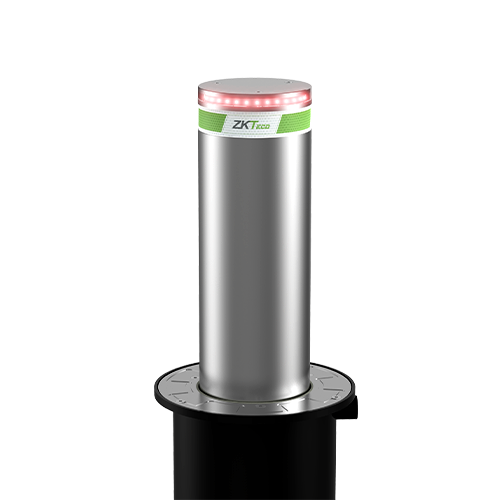

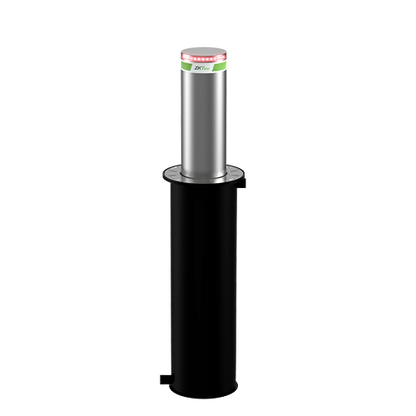

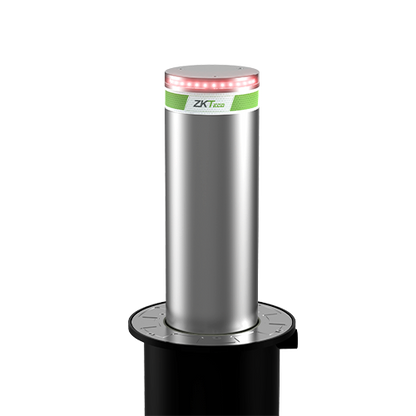

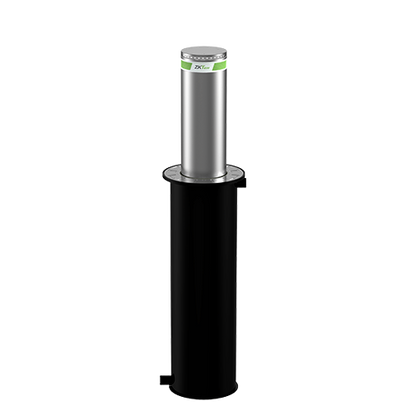

ZKTeco BOL2219-A Automatic Hydraulic Security Bollard
The ZKTeco BOL2219-A is a heavy-duty automatic hydraulic bollard designed to protect high-security areas from unauthorized vehicle intrusion. With its robust stainless steel construction and hydraulic drive system, the BOL2219-A provides a strong physical barrier for entrances requiring a high level of vehicle access protection.
Featuring a 219 mm diameter and 600 mm raising height, the bollard is engineered for demanding security applications. Its solid construction and 6 mm material thickness provide substantial resistance against vehicle impact, making it suitable for protecting restricted entrances and other sensitive areas.
The BOL2219-A provides fast automatic operation with a raising and lowering time of approximately 4 seconds. Its IP68 ingress protection rating allows the bollard to withstand demanding outdoor environments, while integrated LED indication provides clear visual status information.
Key Features
Designed to provide a strong physical barrier against unauthorized vehicle intrusion at high-security entrances and restricted areas.
The hydraulic drive unit provides powerful and reliable raising and lowering operation for demanding security applications.
Constructed from SUS304 stainless steel with a substantial 6 mm material thickness for durability and long-term outdoor performance.
The solid construction is designed to resist vehicle intrusion and provide enhanced physical protection for security-sensitive entrances.
The bollard can raise or lower in approximately 4 seconds, allowing efficient vehicle access control without unnecessarily delaying authorized traffic.
The IP68 ingress protection rating provides strong protection against dust and water ingress for demanding outdoor installations.
Integrated LED indication provides a clear visual status signal during operation.
Security & Safety Features
- Automatic hydraulic bollard operation.
- Heavy-duty SUS304 stainless steel construction.
- 6 mm material thickness.
- 219 mm bollard diameter.
- 600 mm raising height.
- Fast 4-second raising and lowering operation.
- IP68 ingress protection.
- Integrated LED indicator.
- Designed for high-security vehicle access control.
Design & Construction
- Material: SUS304 stainless steel
- Material Thickness: 6 mm
- Bollard Diameter: 219 mm
- Drive Unit: Hydraulic
- Raising Height: 600 mm
- Underground Housing: φ400 × 1105 mm
- LED Indicator: Supported
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Name | BOL2219-A |
| Product Type | Automatic Hydraulic Security Bollard |
| Diameter | 219 mm |
| Drive Unit | Hydraulic |
| Material | SUS304 Stainless Steel |
| Material Thickness | 6 mm |
| Ingress Protection Level | IP68 |
| LED Indicator | Supported |
| Raising / Lowering Time | 4 Seconds |
| Raising Height | 600 mm |
| Underground Product Dimensions | φ400 × 1105 mm |
| Working Temperature | -20°C to 55°C |
Applications
- High-Security Building Entrances
- Government Facilities
- Military and Defense Facilities
- Embassies and Diplomatic Facilities
- Banks and Financial Institutions
- Corporate Security Entrances
- Industrial Facilities
- Restricted Vehicle Access Areas
- Critical Infrastructure
- Security Checkpoints
Why Choose ZKTeco BOL2219-A?
- Heavy-duty automatic bollard for high-security applications.
- Powerful hydraulic drive system.
- Durable SUS304 stainless steel construction.
- 6 mm material thickness for robust physical protection.
- Fast 4-second raising and lowering operation.
- 600 mm raising height provides substantial vehicle access restriction.
- IP68 protection for demanding outdoor environments.
- 219 mm diameter provides a strong physical barrier.
- Integrated LED indicator for operational status.
Operating Environment
The BOL2219-A is designed for demanding outdoor security applications and supports a working temperature range of -20°C to 55°C. Its IP68-rated construction makes it suitable for installations where protection against dust and water ingress is required.
High-Security Vehicle Access Control
The ZKTeco BOL2219-A provides a robust solution for controlling and restricting vehicle access at security-sensitive locations. Its hydraulic mechanism, stainless steel construction, substantial bollard diameter and 600 mm raising height make it suitable for entrances where strong physical vehicle protection is required.
