ZKTeco CMP-200 Parking Barrier Gate
ZKTeco CMP-200 Parking Barrier Gate
Couldn't load pickup availability
Product Details

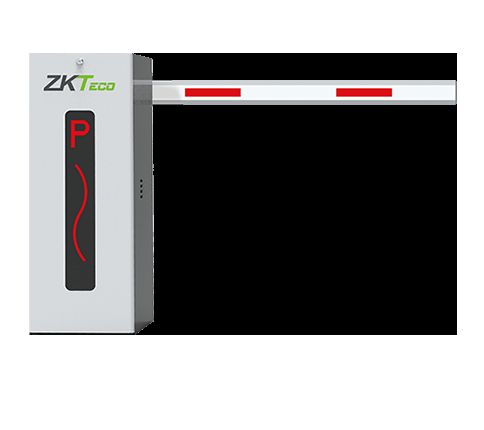

ZKTeco CMP200 Automatic Boom Barrier
The ZKTeco CMP200 is an automatic boom barrier designed for efficient and reliable vehicle access control in parking areas, commercial entrances, residential communities and other controlled vehicle entry points. It combines a durable barrier mechanism with flexible boom options and multiple detector integrations for convenient traffic management.
The CMP200 supports anti-smash protection and automatic closing through compatible infrared detectors, loop detectors and radar detectors. Its auxiliary traffic lights integrated into the main body provide clear visual guidance for drivers and help improve the overall user experience at vehicle entrances and exits.
With a 1 million-cycle motor MCBF, multiple boom configurations and selectable arm direction, the CMP200 provides a flexible solution for installations requiring dependable automatic vehicle barriers.
Key Features
- Automatic boom barrier for vehicle access control.
- Auxiliary traffic lights integrated into the main body.
- Supports anti-smash functionality.
- Automatic closing with compatible infrared detector, loop detector or radar detector.
- Arm direction can be exchanged according to installation requirements.
- Supports telescopic boom, straight boom with LED and folding boom configurations.
- Fast opening and closing performance.
- Motor MCBF of up to 1 million cycles.
- Remote control with operating distance of up to 30 meters.
- 430 MHz remote control frequency.
- Cold rolled steel cabinet construction.
- Aluminum and wood boom construction.
- Suitable for indoor and outdoor vehicle access control applications.
Product Advantages
- Flexible boom options allow the CMP200 to adapt to different entrance layouts.
- Integrated traffic lights provide intuitive vehicle movement guidance.
- Detector compatibility enables automatic closing and anti-smash protection.
- Exchangeable arm direction simplifies installation planning.
- Multiple boom lengths support both standard and wider vehicle lanes.
- Fast 3-second operation is available with supported boom configurations.
- Reliable motor construction provides up to 1 million operating cycles.
- Remote control operation provides convenient barrier management.
Safety & Traffic Management
Anti-Smash Protection
The CMP200 supports anti-smash operation when integrated with compatible infrared detectors, loop detectors or radar detectors. These detection devices can help prevent the boom from closing when a vehicle or obstruction is detected.
Automatic Closing
Compatible detection equipment can be used to provide automatic closing functionality, helping maintain efficient traffic flow without requiring manual operation after every vehicle passage.
Auxiliary Traffic Lights
The main barrier body includes auxiliary traffic lights that provide visual indications to drivers, improving entrance and exit guidance.
Boom Options
Telescopic Boom
The telescopic boom is available in 4.5-meter and 6-meter versions. Its compact packaging length makes transportation and handling easier compared with a full-length boom.
Straight Boom with LED
The straight boom with LED supports a maximum length of 4.5 meters and provides illuminated visual guidance for vehicle access applications.
Folding Boom
The folding boom supports a maximum length of 4 meters and is suitable for locations where overhead clearance or installation space requires a folding barrier arm.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CMP200 |
| Product Type | Automatic Boom Barrier |
| Gate Opening / Closing Time | 3s (Max. 4.5m) / 6s (Max. 6m) |
| Supply Voltage | AC 110V / 220V, 50 / 60Hz |
| Power Consumption | 100W (Max. 120W) |
| Remote Controlling Distance | ≤ 30m |
| Remote Controlling Frequency | 430 MHz |
| Cabinet Material | Cold Rolled Steel |
| Boom Material | Aluminum and Wood |
| Motor MCBF | 1 Million Times |
| Operating Temperature | -25°C to +75°C |
| Operating Humidity | ≤ 90% |
| Housing Dimensions | 350 × 280 × 1010 mm |
| Packing Dimensions | 420 × 405 × 1100 mm |
| Net Weight | 45 kg |
| Gross Weight | 47 kg |
| Boom Type | Telescopic Boom / Straight Boom with LED / Folding Boom |
| Telescopic Boom Length | 4.5m (Packaging Length 2.8m) / 6m (Packaging Length 3.6m) |
| Straight Boom with LED Length | Maximum 4.5m |
| Folding Boom Length | Maximum 4m |
| Telescopic Boom Opening / Closing Time | 3s (Max. 4.5m) / 6s (Max. 6m) |
| Straight Boom with LED Opening / Closing Time | 3s |
| Folding Boom Opening / Closing Time | 3s |
Detection & Integration
- Infrared detector support.
- Loop detector support.
- Radar detector support.
- Anti-smash protection with compatible detection equipment.
- Automatic closing functionality.
- Auxiliary traffic light integration.
- Remote control operation.
Applications
- Parking Lots
- Residential Communities
- Commercial Buildings
- Office Complexes
- Industrial Facilities
- Factories
- Hotels
- Shopping Centers
- Vehicle Entry & Exit Points
- Controlled Parking Areas
- Private Driveways
- Security Checkpoints
Why Choose ZKTeco CMP200?
- Flexible automatic barrier solution for vehicle access control.
- Supports three different boom configurations.
- Up to 6-meter telescopic boom coverage.
- Integrated auxiliary traffic lights improve driver guidance.
- Supports anti-smash and automatic closing functions.
- Compatible with infrared, loop and radar detection systems.
- 1 million-cycle motor MCBF for dependable operation.
- Fast 3-second operation with supported boom configurations.
- Exchangeable arm direction provides installation flexibility.
- Remote control operation up to 30 meters.
Package & Installation
- Automatic CMP200 barrier cabinet.
- Selected boom arm configuration according to application requirements.
- Remote control functionality.
- Compatible detector integration for safety and automatic closing.
