ZKTeco

ZKTeco CR10M USB 13.56MHz Mifare Card Enrolment Reader

Rs. 2,339.00

~~Rs. 2,807.00~~ Rs. 2,339.00

Sale Sold out

Product Details

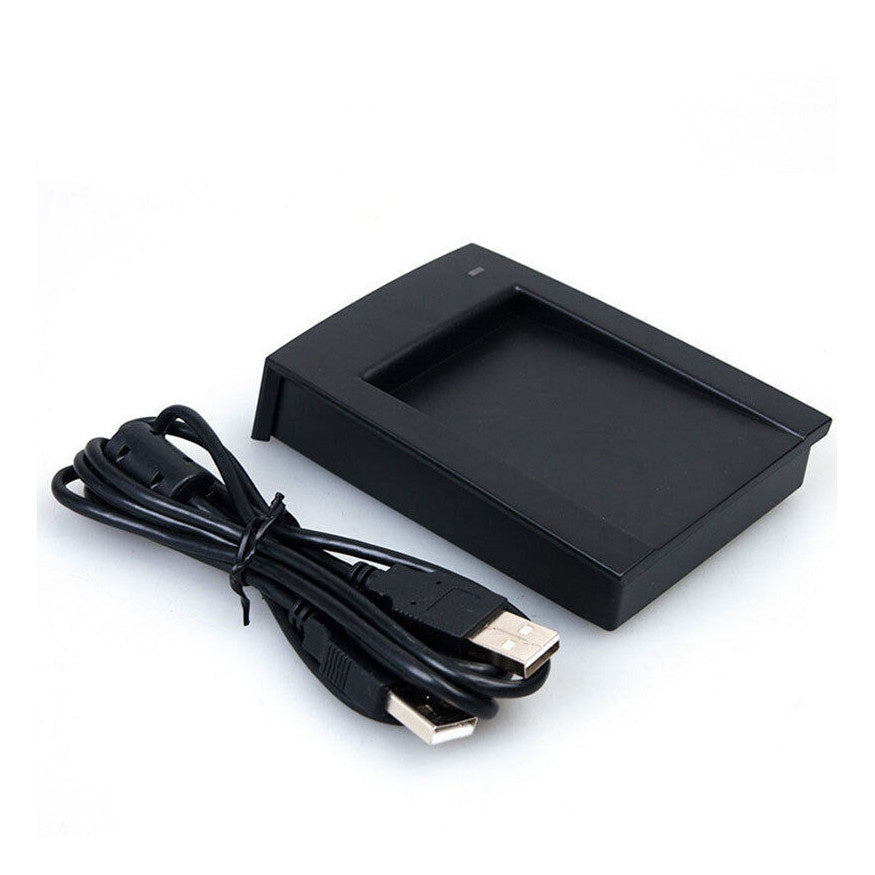

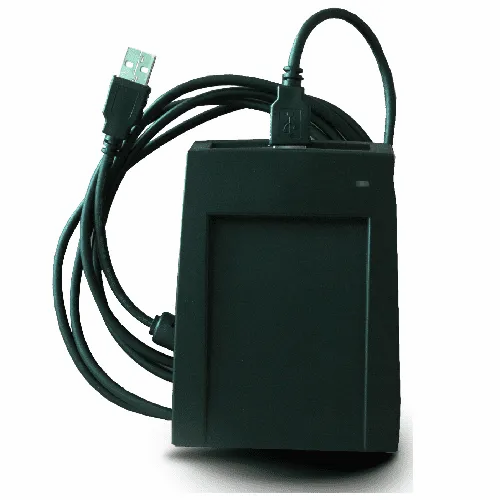

ZKTeco CR10M Enrollment Reader

The ZKTeco CR10M Enrollment Reader is a 13.56 MHz proximity card enrollment reader designed to read and write compatible cards. It connects to a PC through a USB interface and supports plug-and-play operation.

        Key Highlights:
        13.56 MHz frequency, up to 5 cm read range, USB connectivity,
        USB-powered operation, high-speed transactions, LED and buzzer
        feedback, and development communication protocol.


Features

13.56 MHz Card Technology

Supports proximity cards operating at a working frequency of 13.56 MHz.

Read & Write Function

The CR10M is designed to read and write compatible proximity cards.

USB Interface

Connects directly to a PC through USB and is powered through the USB connection.

High-Speed Transactions

Supports high-speed card transactions for efficient enrollment and identification.

LED & Buzzer Feedback

Integrated LED indicators and buzzer provide feedback during card operations.

Development Support

CR10M includes a communication protocol intended for development and integration.

Technical Specifications

Parameter	Details
Model	CR10M
Product Type	Enrollment Reader
Frequency	13.56 MHz
Working Frequency Range	13.56 MHz
Read Range	Up to 5 cm
ID Type	Card
Identification Standard	MIFARE
Data Interface	USB
Power Supply	USB Powered
Installation Type	Desktop
Installation Location	Indoor
Operating System Compatibility	Windows 2000 / 2003 / XP / Vista (32-bit) / Windows 7 (32-bit)
Driver	No driver necessary (emulation keypad)
Reading Technology	Not specified

Connectivity

USB interface
USB-powered operation
Plug-and-play connection to PC
Communication protocol available for development

Installation

The CR10M is designed for desktop installation and indoor use. It connects to a computer through its USB interface.

Package Contents

1 × ZKAccess CR10M Enrollment Reader (13.56 MHz)
Product Documentation

Warranty

The supplied product information specifies a One (1) Year Hardware Warranty.

Frequently Asked Questions

Q. What frequency does the CR10M use?
The CR10M operates at 13.56 MHz.

Q. What is the read range?
The specified read range is up to 5 cm.

Q. How does the CR10M connect to a computer?
It connects through a USB interface and is powered through USB.

Q. Does it support MIFARE cards?
The supplied specifications identify the identification standard as MIFARE.

Q. Is a separate driver required?
The supplied information states that no driver is necessary because it supports emulation keypad operation.

Q. Is the CR10M suitable for desktop installation?
Yes. The specified installation type is desktop and the installation location is indoor.

Q. What is the warranty period?
The specified hardware warranty is one year.
